Mul-t-lock Padlock E Series Service Manual page 28

26

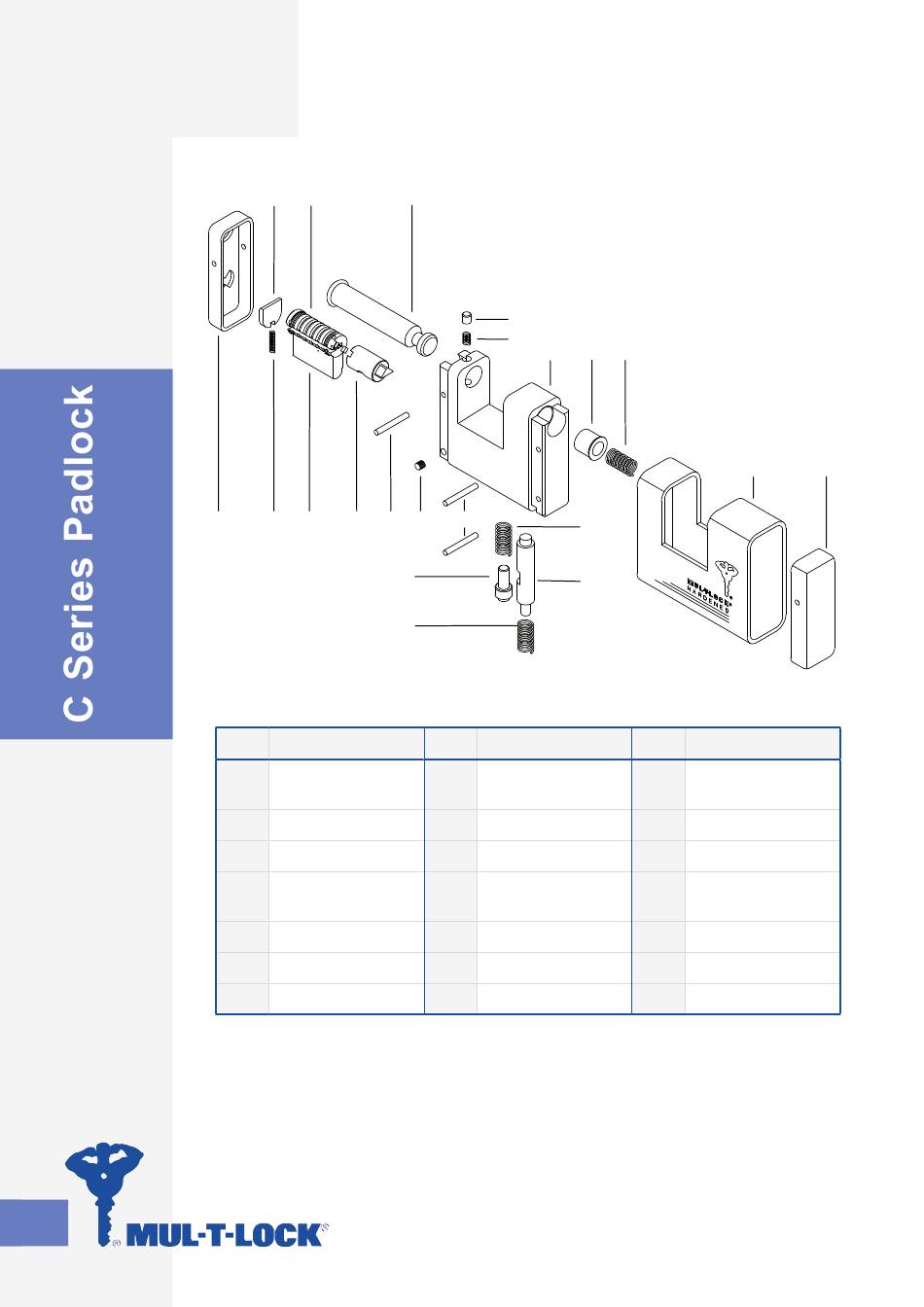

SBC-13 Sliding Bolt
10 9
11 12 13 14 15
No. Part
Rear protecting
1
plate
2 Shell
3 Spring
4 Bolt pusher
5 Core
6 Stopper
7 Spring
8
6
7
5
15
16
17
18
No. Part
8 Bolt
9 Plug
10 Dust shutter
Front protecting
11
plate
12 Spring
13 Hive
14 Adaptor
4 3
2
19
20
No. Part
15 Steel pin
16 Set screw M4x4
17 Grooved pin
18 Spring
19 Spring
20 Latch
SBC-13 Sliding Bolt
1
