Mul-t-lock Padlock E Series Service Manual page 38

36
3

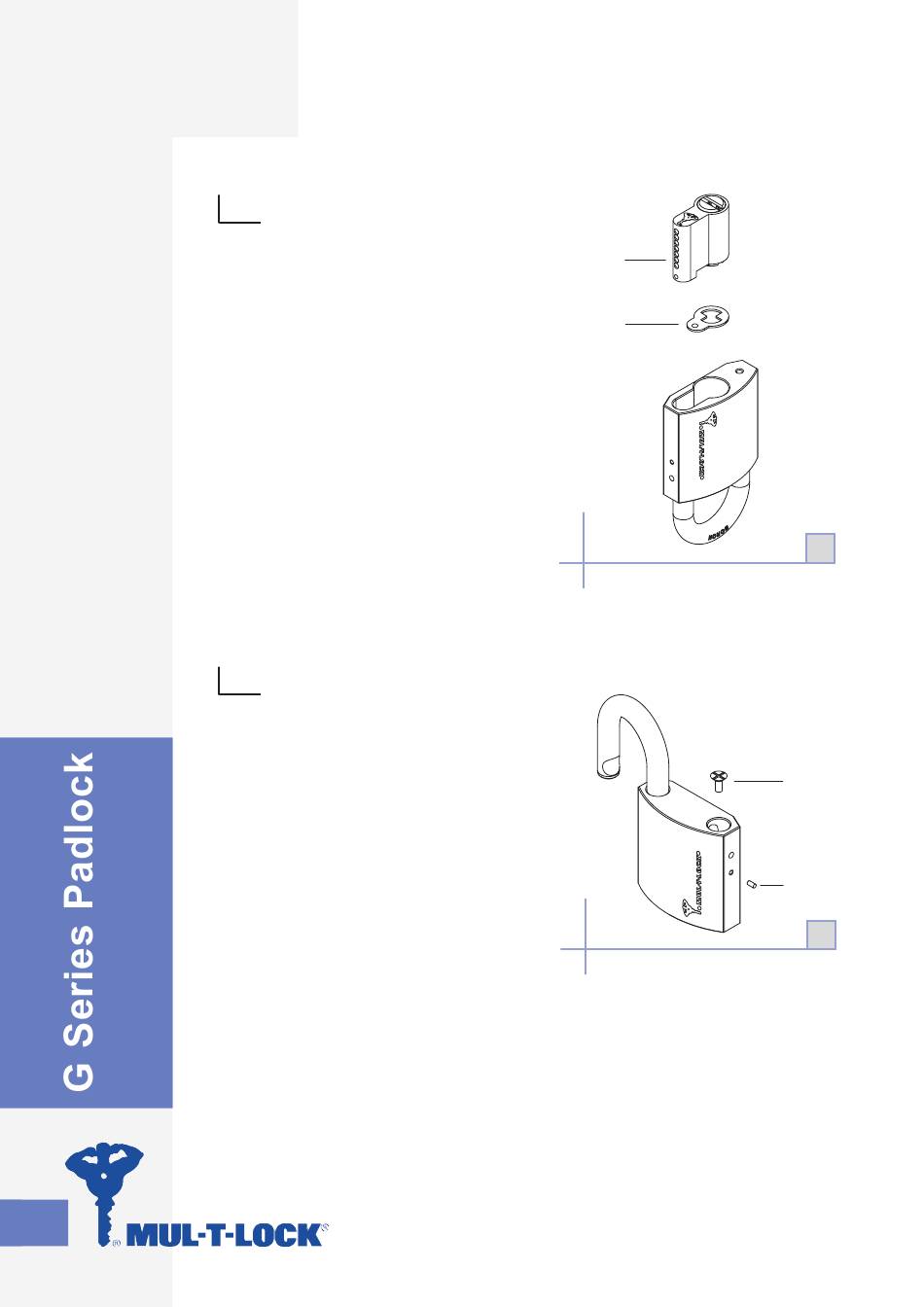

• Insert the cam limiter (3),
ensuring that it engages
with the protrusion of the
activator (4).
• Insert the cylinder (2) into
its place, making sure
that the key will be at it's
removal point when the
padlock is locked.
4
• Put the cylinder
holding screw (8) into
its place. In order to
prevent it from working
loose, secure it with a
drop of "LOCTITE".
• For additional safety,
use the security pin
(7) as described on
the next page.
G-Series Padlock / Assembly Instructions
2
3
3
8
7
4
