Assembly Instructions - Mul-t-lock Padlock E Series Service Manual

12

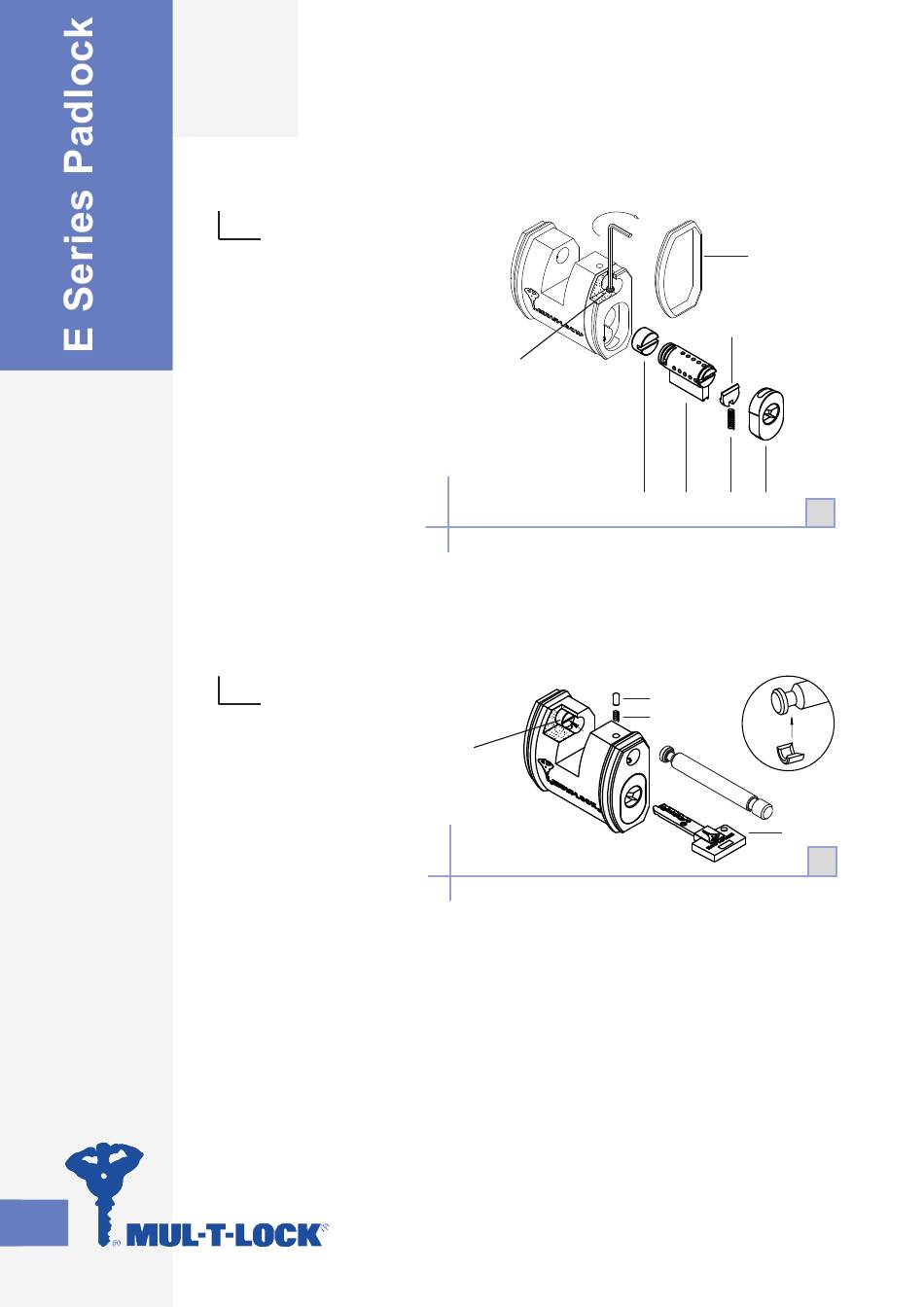

Assembly Instructions

1
• Install activator cam (8)
and cylinder (6).
• Install shutter spring (4)
and shutter (5).
• Place cylinder front
cover (2) using 2.5
mm "allen" key, tighten
screw (19).
2
• Install pin and
spring (18,20). Push
them back with a
screwdriver until the
shackle is inserted.
• Insert key and check
for smooth operation.
• NOTE: you may need
to push bolt pusher
(16) in order to turn
the key.
Sliding Bolt (SBE) / Assembly Instructions
19
16
17
5
8 6 4 2
18
20
1
1
2
