Disassembly & Assembly
Instructions

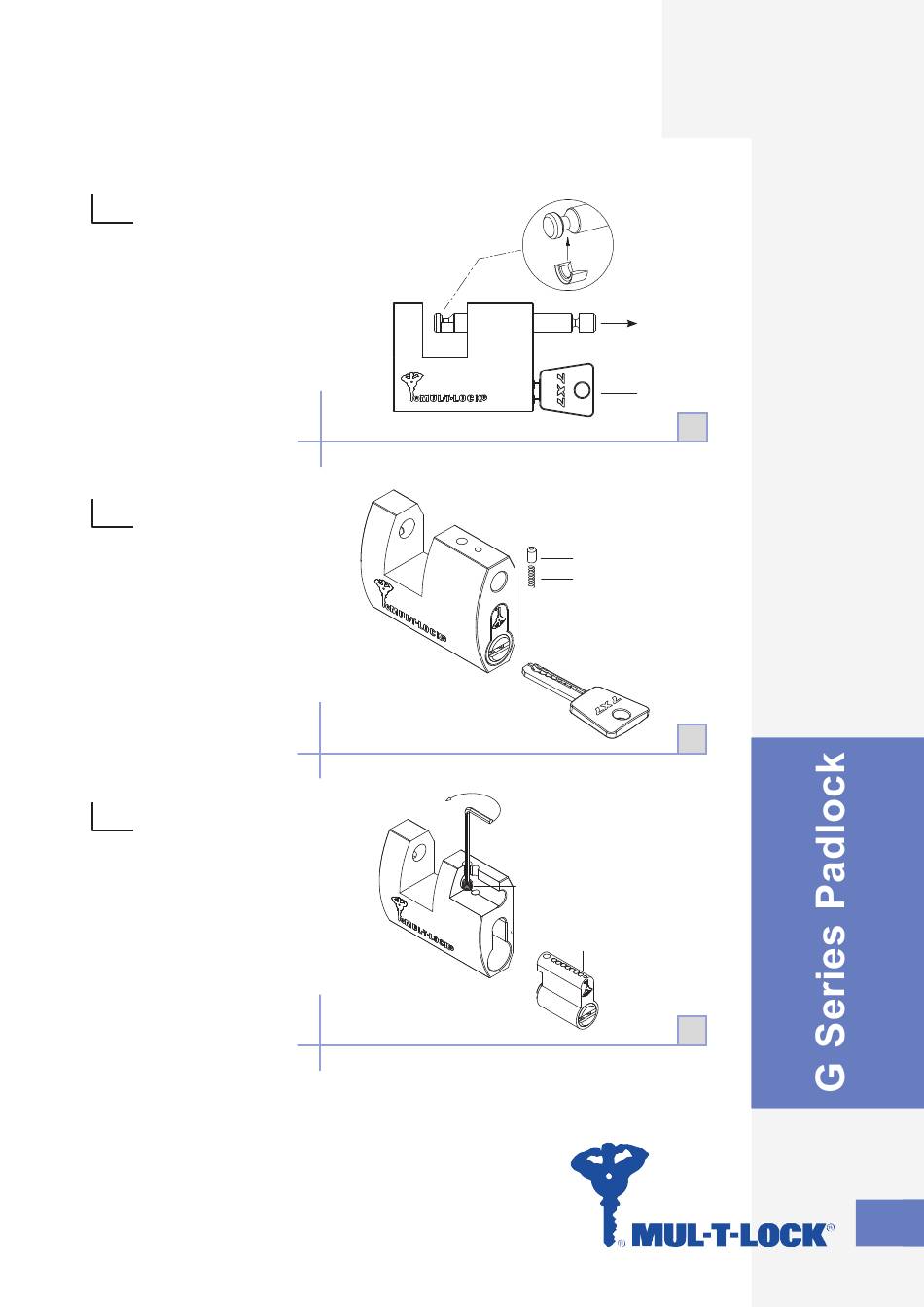

1
• Unlock the padlock
with the operating
key (1).
• Mount on the bolt
(7) disassembling
ring and remove the
bolt by pulling it out.
2
• Take out pin and spring
(8,9).
• Take out the key (1).
3
• Using 2.5 mm "allen"
key insert into hole and
loosen the screw (10).
• Now the cylinder is
free, via opening in
side remove cylinder
and inner parts of
the body.
• Disassembling of the
locking mechanism
is not needed for
re-keying.
Sliding Bolt (SBG) /
Disassembly & Assembly Instructions
7
1
1
9
8
2
10
2
3
