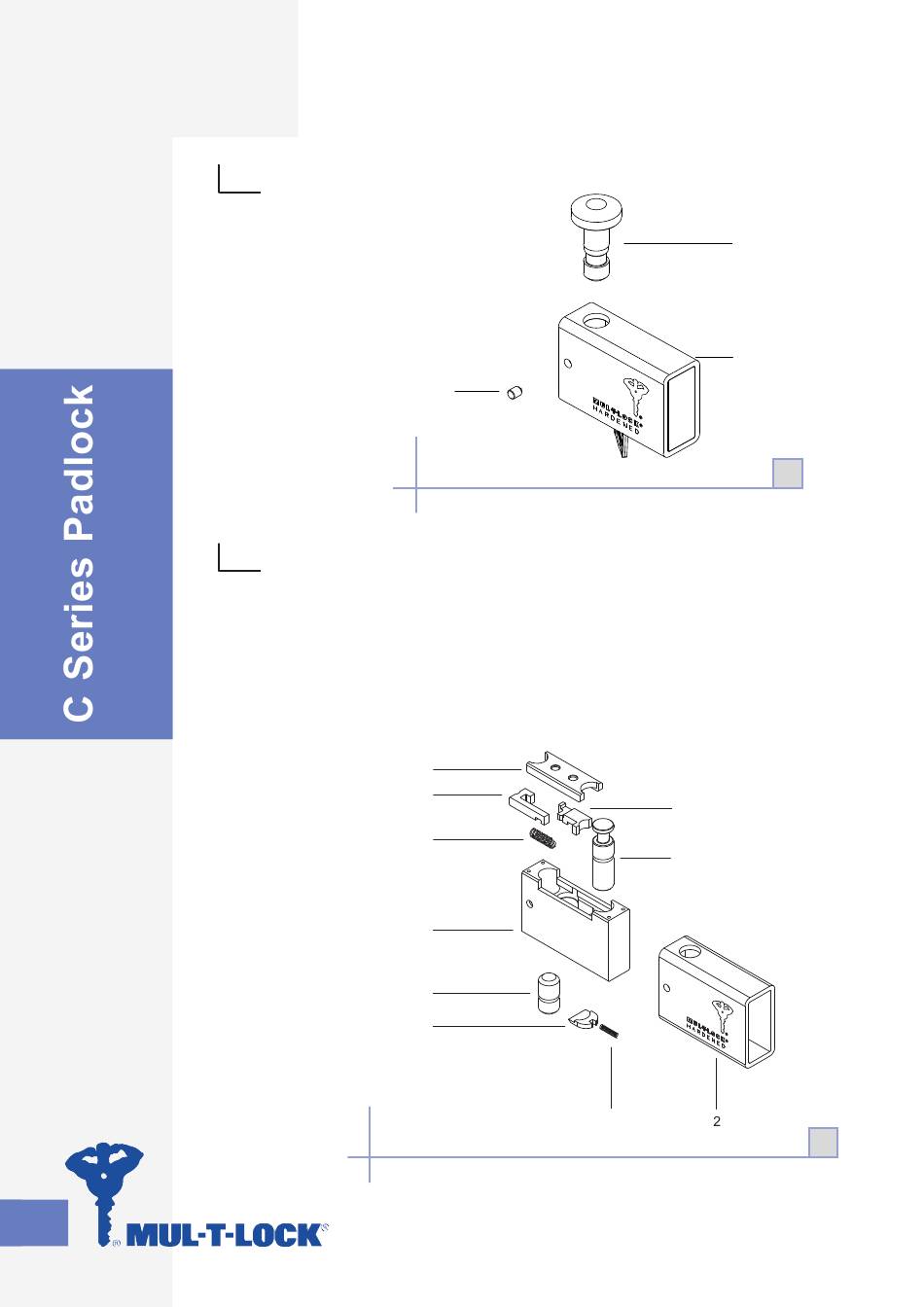

Disassembly Instructions

1
• Unlock the padlock
with
the operating key.
• Using a 2.5mm "allen"
key, remove the set
screw (11).
• Remove locking
pin (3).
2
• Take key out.
• Slide out core (10), making
sure to carefully set aside the
spring-loaded parts
(6,7,8,15,16).
• Remove pins
(4,5,12).
11
7
8
9
10
12
15
Single Pin / Disassembly Instructions
3
2
6
4, 5
16
2
2
