Security Pin

Assembly Instructions

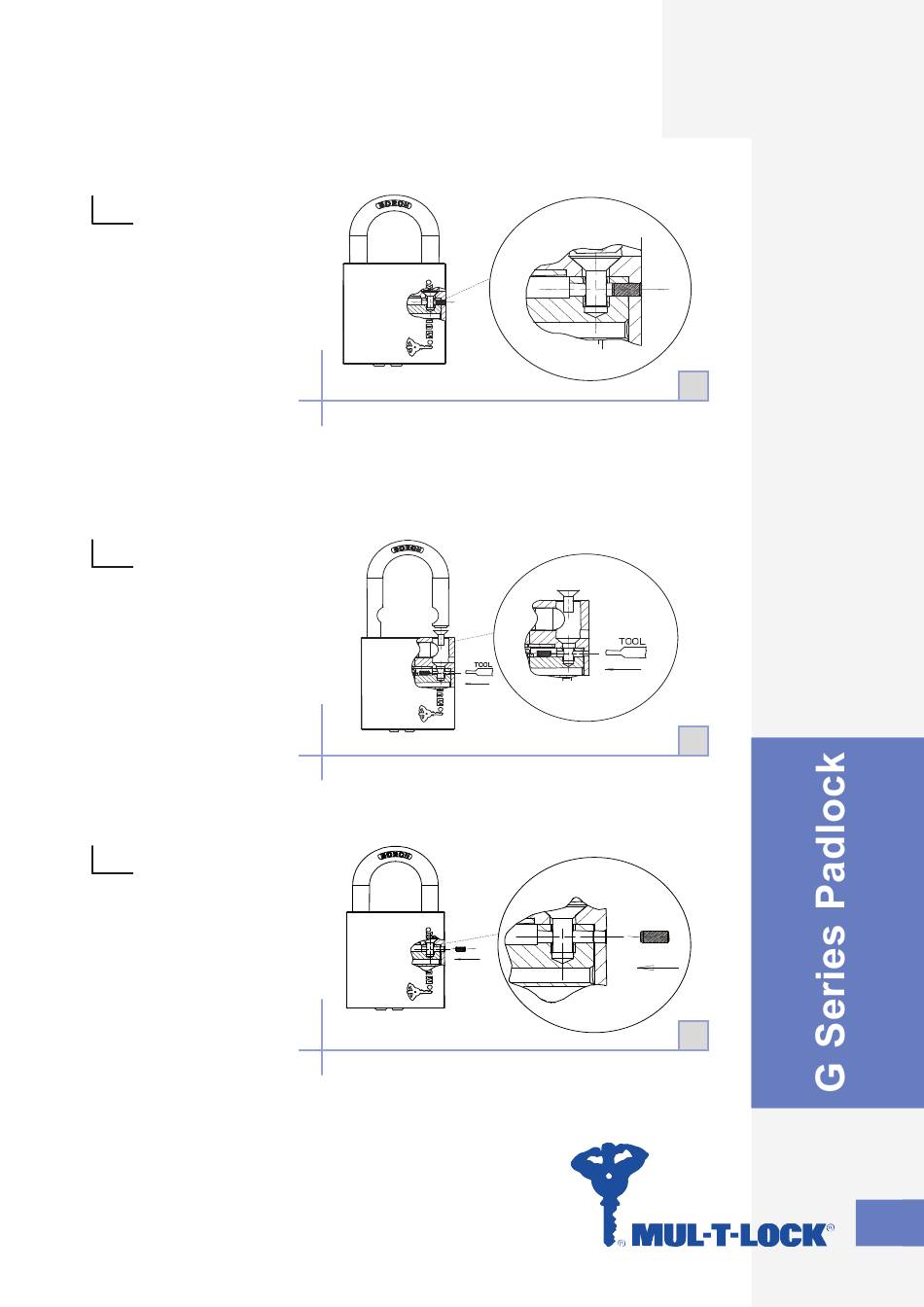

1
• Unlock the padlock
with the operating key.
Reach for the cylinder
mounting screw
through the shackle
hole with a Philips
screwdriver, release
and remove it. This will
not release the cylinder,
which is still held by the

security pin.

2
• Once the screw is
out, use a punch and
drive in the pin, which
will fall into the cavity
above the cylinder. The
cylinder can now be
removed, and you can
recover the pin for re-
assembly.
3
• Assemble the cylinder
in position with the
mounting screw and
tighten. Check the lock
for correct operation.
Once confirmed, drive
the security pin home
with a small hammer.
The pin end should
be flush with body
outer surface as per
Figure 1.
