Disassembly Instructions - Mul-t-lock Padlock E Series Service Manual

10

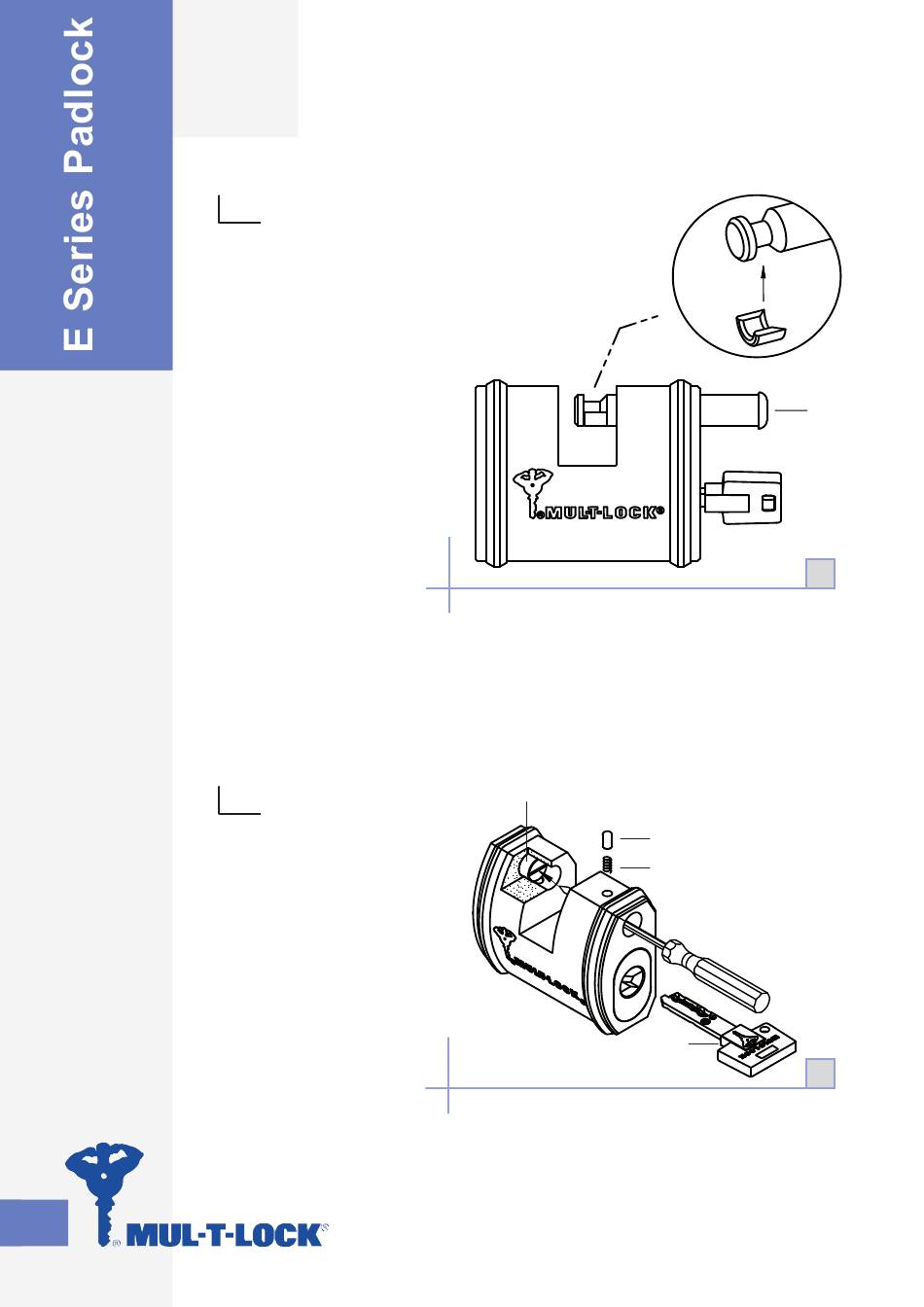

Disassembly Instructions

1
• Unlock the padlock with
operating key.
• Mount on the bolt
disassembling ring and
remove the bolt (21)
by pulling it out.
2
• Take out pin and spring
(18,20).
• Using screwdriver push the
bolt pusher (16) until the
latch (12) pops up.
• Take out the key (1).
Sliding Bolt (SBE) / Disassembly Instructions
16
18
20
1
21
1
2
