Conversion between Removable
Shackle and Pop-Open Shackle
1
• To convert a removable shackle lock into
a pop open shackle lock, change set
screw (9R) to socket threaded pin (10P).
• Replace removable shackle (3R) with
pop-open shackle (4P).
• Add hardened pin (15P) and spring (3P).
2
• To convert a pop-open shackle lock
into a removable shackle lock, change
threaded pin (10P) to set screw (9R).
• Replace pop-open shackle (4P) with a
removable shackle (3R).
• Remove hardened pin (15P) and
spring (3P).
• NOTE:
R: removable shackle part
P: pop-open shackle part
• For assembly, refer to
Assembly Instructions and
Exploded Views pages for
types P and R.

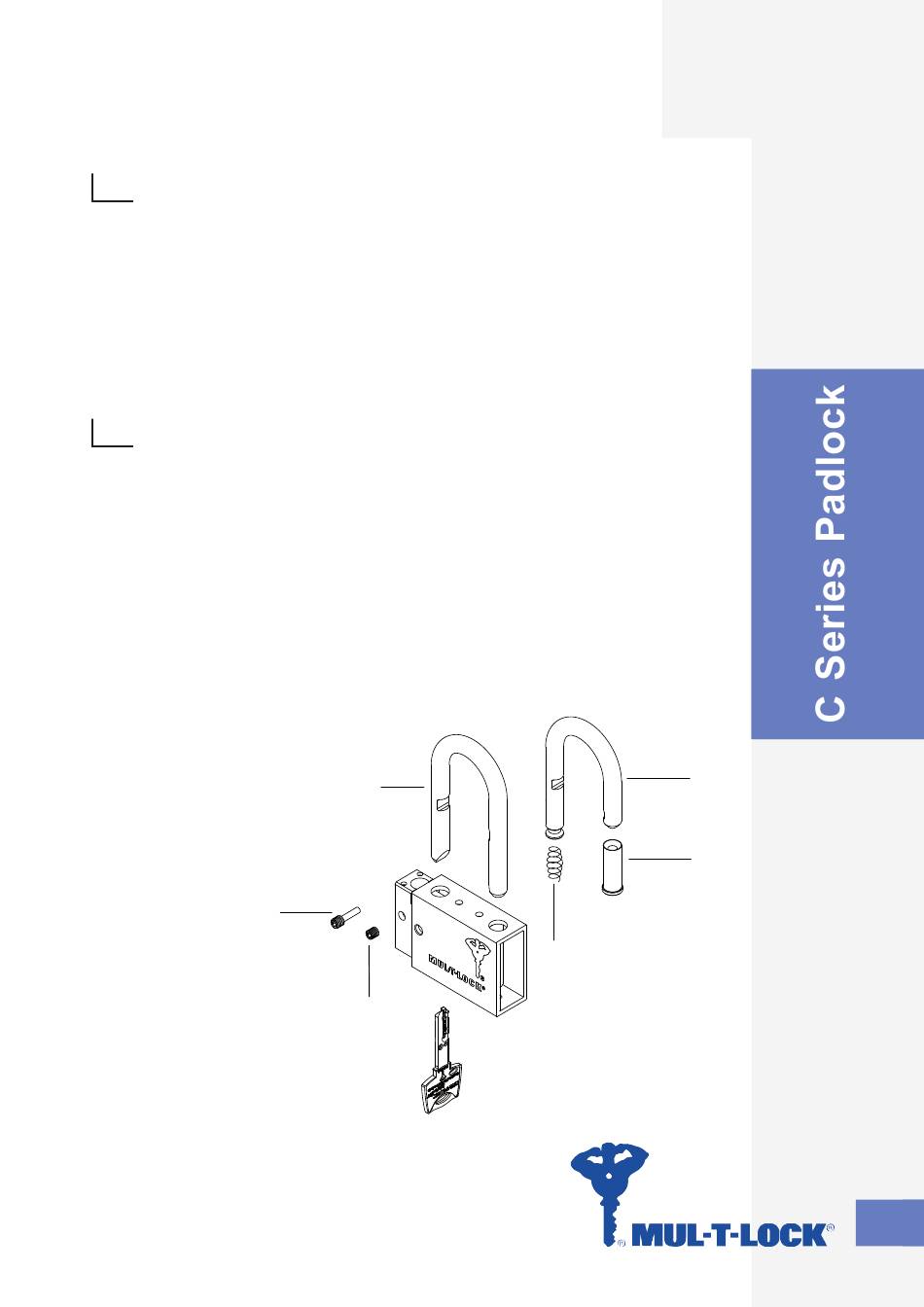

10P
Conversion between Removable Shackle and
Pop-Open Shackle
3R
9R
4P
15P
3P
