28
3
•

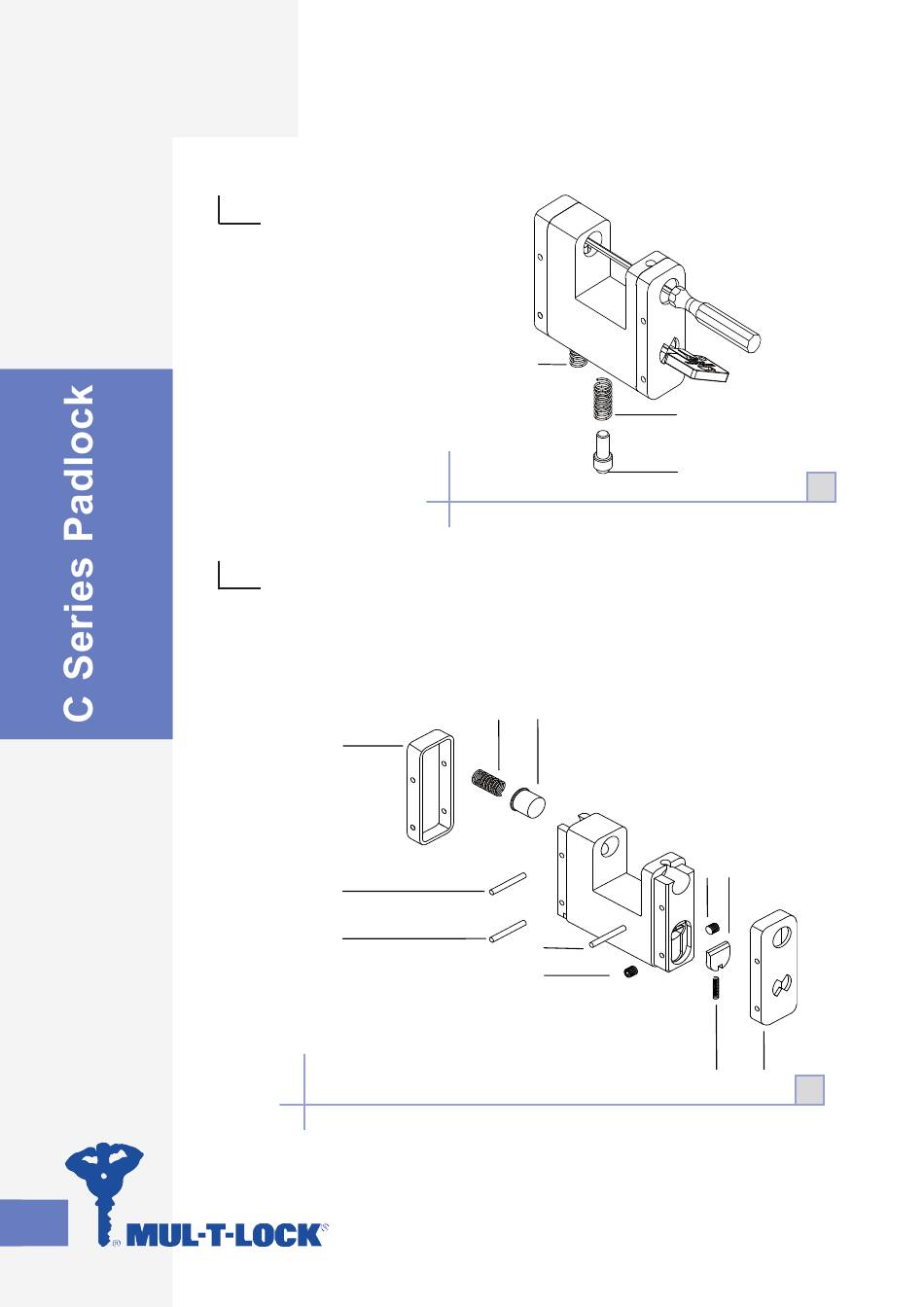

Remove grooved pin (17)
and spring (19).
•
To take key out, apply
force on spring (18), insert
screwdriver and push
inside bolt pusher (4).
•
Key will return to closed
position and can be
taken out.
4
•
Remove three pins (15) and two
screws (16).
•
Remove parts 1, 3, 4, 10, 11, 12.
1
15
15
18
4
3
15
16
SBC-13 Sliding Bolt / Disassembly
19
17
3
16 10
12
11
4
