Padlock G-47; Padlock G-47P - Mul-t-lock Padlock E Series Service Manual

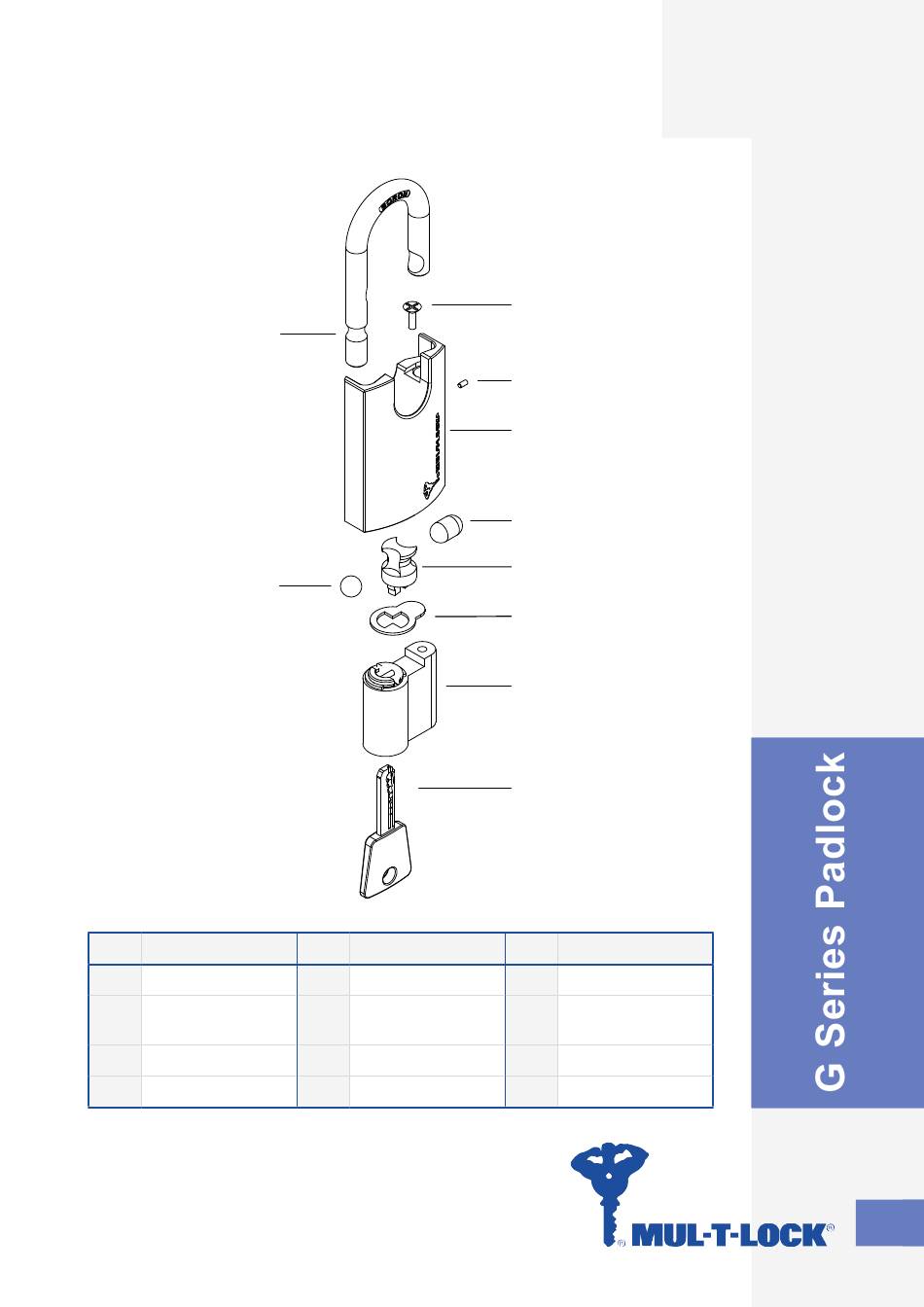

Padlock G-47P
10
No. Part
1 Key
2 Cylinder
3 Cam limiter
4 Cam activator
* Elongated ball bearing
Padlock G-47P
9
No. Part
5 Latch*
6 G-47 body
7 Security pin
8 Screw M4x10
8
7
6
5
4
3
2
1
No. Part
9 Shackle
Ball bearing
10
8 mm
