Cylinder Service - Mul-t-lock Padlock E Series Service Manual

22

Cylinder Service

3

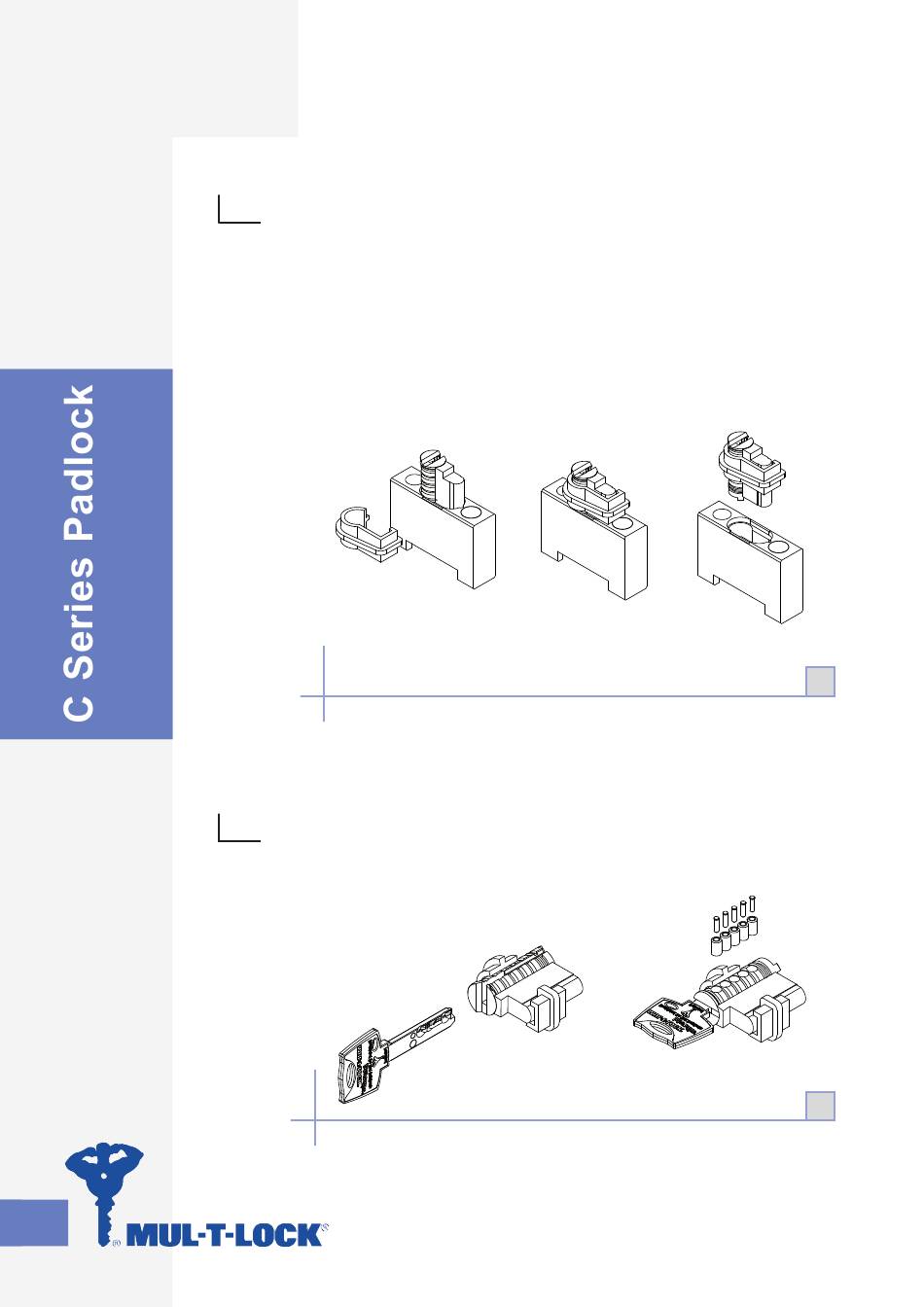

• Turn the core upside down and pull out the
cylinder so that the plastic catch can be
mounted.
• NOTE: Do not pull the cylinder out of the
core more than two-thirds of the way!
• Mount the plastic catch and remove the
cylinder.
A
4
• Insert the key into the cylinder and
turn it until the pins can be removed
from the plug.
Pop-Open Shackle No. 8 / Cylinder Service
B C
3
4
