Disassembly Instructions

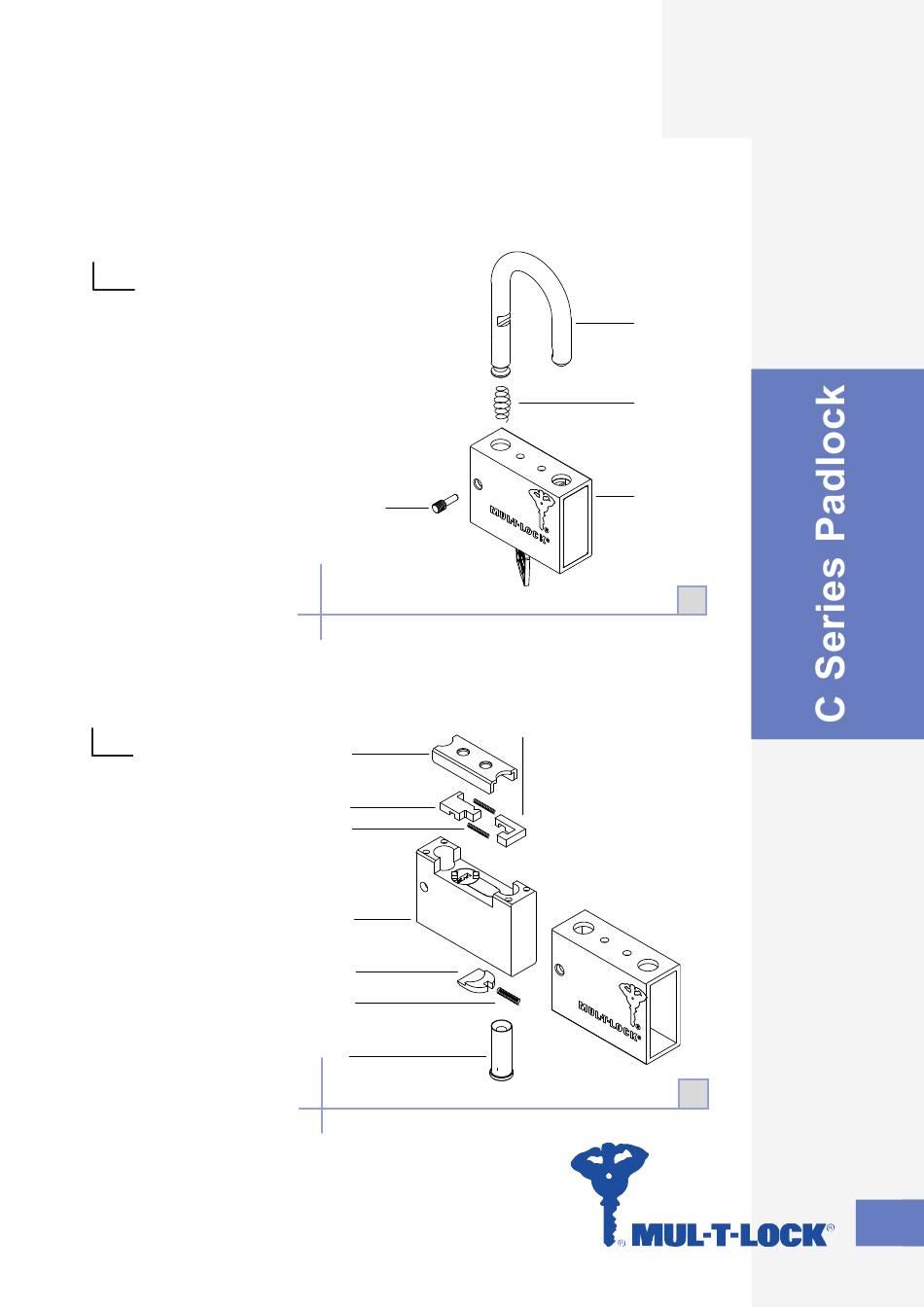

1
• Unlock the padlock with
the operating key.
• Using a 2.5 mm "allen"
key, remove the threaded
pin (10).
• Remove shackle (4)
and spring (3).
2
• Take key out.
• Slide out core (9),
making sure to carefully
set aside the spring-
loaded parts
(5, 6, 7, 8, 13, 14, 15).
Pop-Open Shackle No. 8 /
Disassembly Instructions
10
6
7
8
9
13
14
15
4
3
2
1
5
