G-Series Padlock

Assembly Instructions

These assembly instructions are intended to walk you through the
assembly process, starting with the padlock disassembled. If you
start dismantling an assembled lock, please refer to the next page for
instructions on removing the security pin.

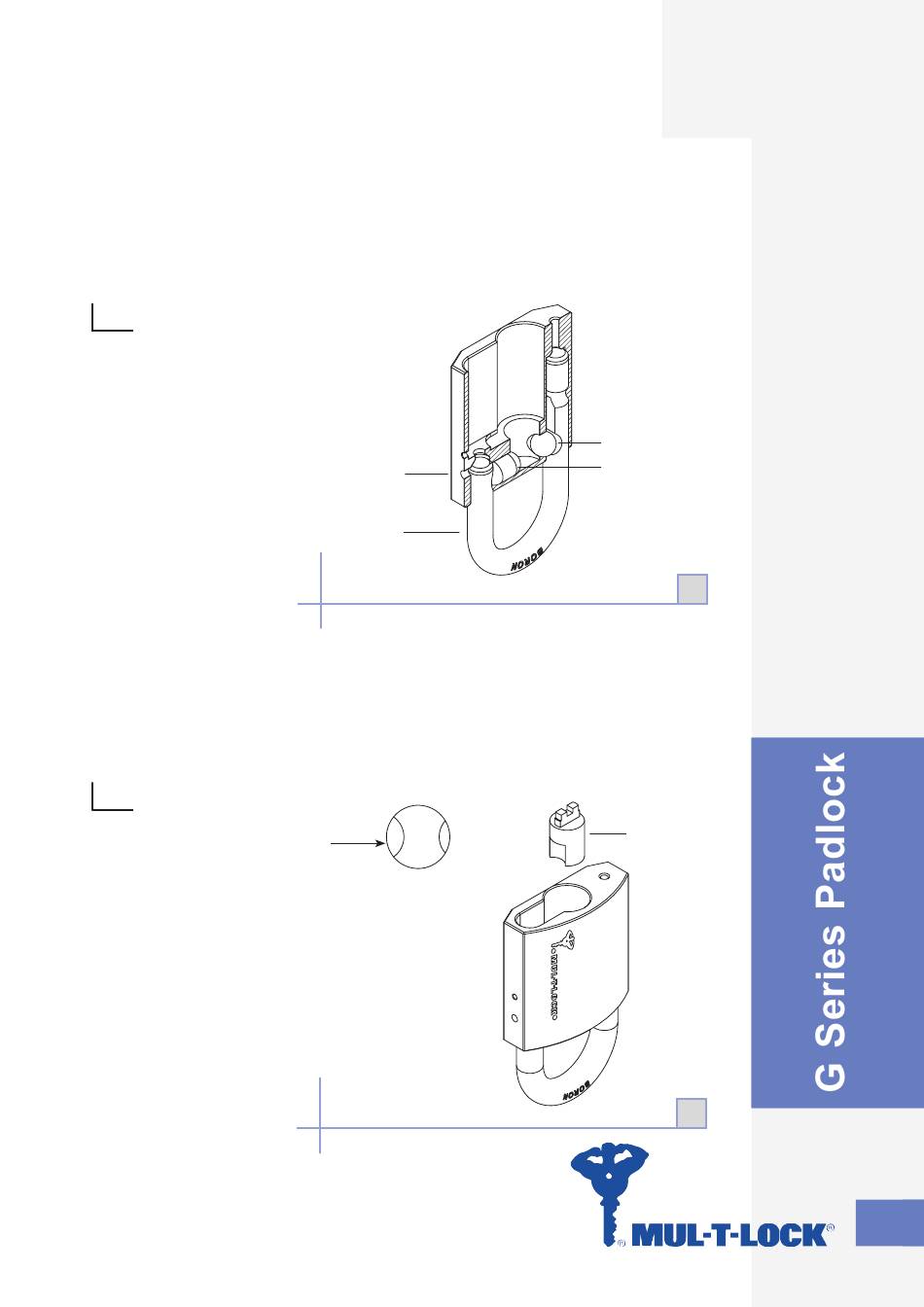

1
• With the shackle (9)
inside, hold the padlock
body (6) upside-down.
• Push the two elongated
ball bearings (5 for G-55
padlocks; 5 & 10 for
G-47 padlocks) through
the cylinder opening,
one per side.
• NOTE: For G-47
models, ensure that
the elongated ball
bearing (5) is placed in
the direction of the short
leg of the shackle (2A).
2
• Insert the padlock
activator via the
cylinder opening.
• NOTE: For G-47
models make sure
that the deepest
groove is facing
the short leg of the
shackle.
G-Series Padlock / Assembly Instructions
6
9
2A
10
5
1
4
2
35
