Single Pin - Mul-t-lock Padlock E Series Service Manual

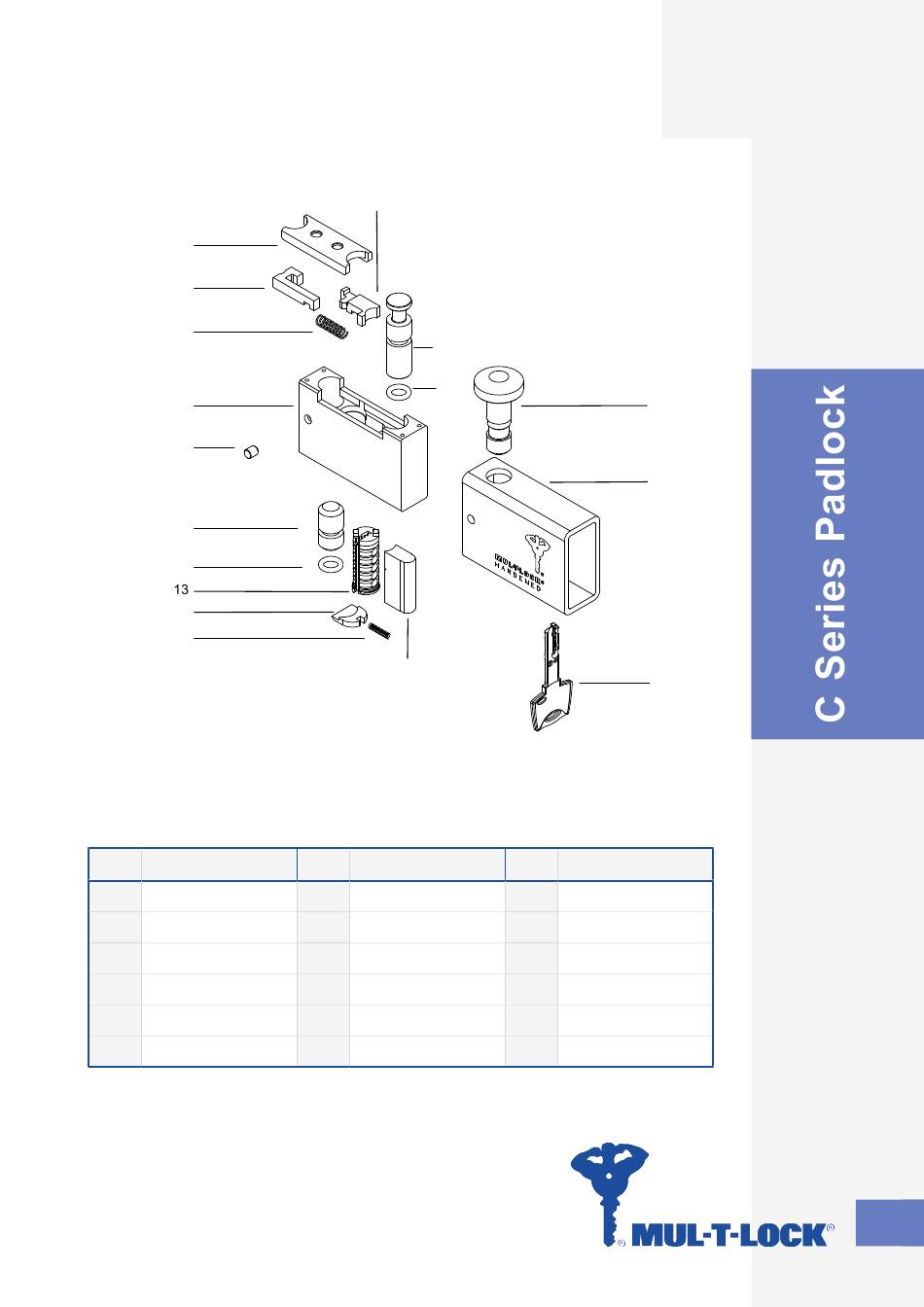

Single Pin
7
8
9
10
11
12
4
14
15
No. Part
1 Key
2 Shell
3 Locking pin
4 O - Ring
5 Pin
6 Short latch
Single Pin
6
5
4
16
No. Part
7 Thrust plate
8 Long latch
9 Latch spring
10 Core
11 Set screw M5
12 Lower pin
3
2
1
No. Part
13 Plug
14 Shutter
15 Shutter spring
16 Hive
23
