Sliding Bolt (Sbe) - Mul-t-lock Padlock E Series Service Manual

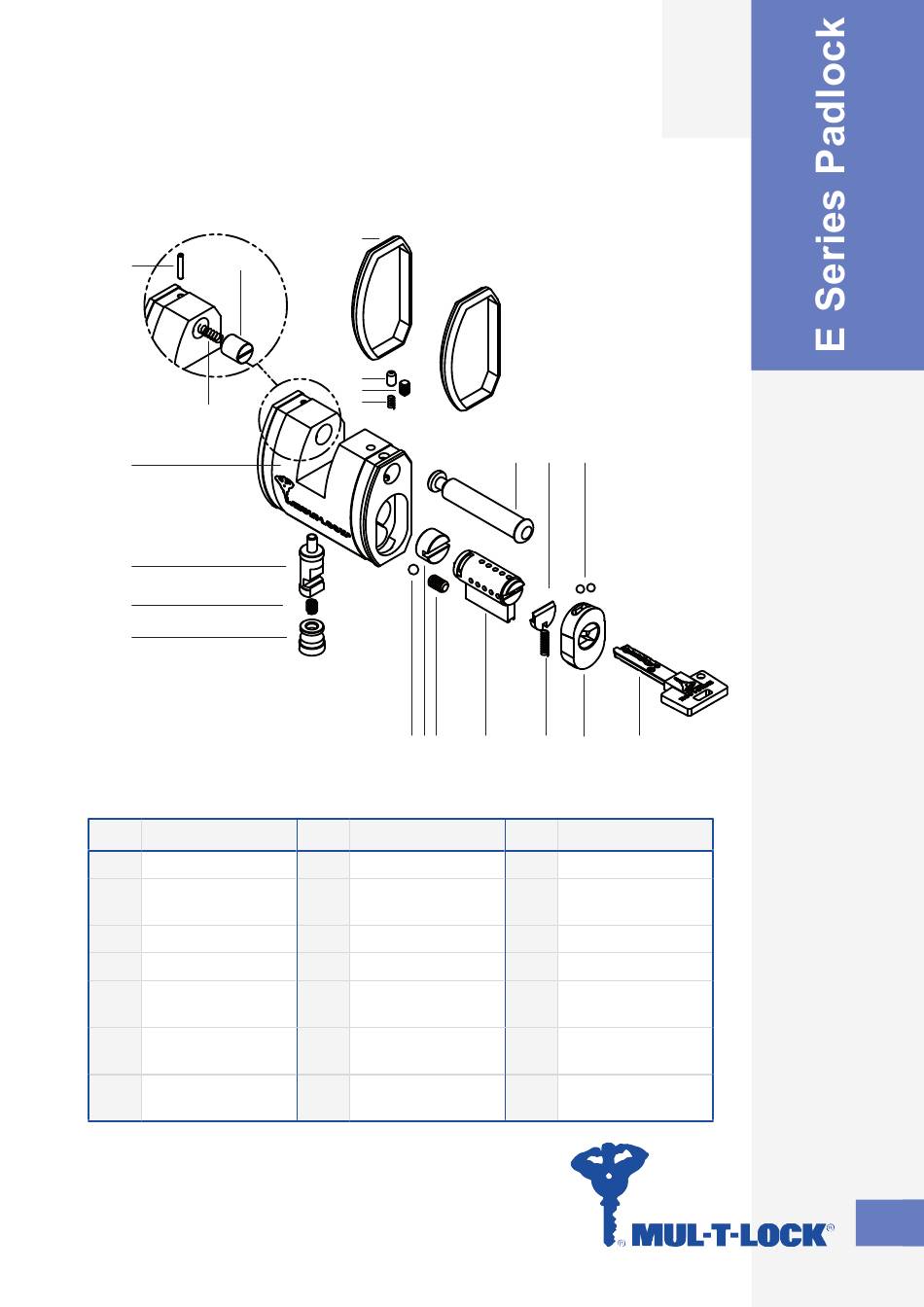

Sliding Bolt (SBE)
16
15
14
13
12
11
10
No. Part
1 Key
Cylinder front
2
cover
3 Ball bearing 4 mm
4 Shutter spring
5 Shutter
6 Cylinder
Socket set screw
7
with cone point
Sliding Bolt (SBE)
17
18
19
20
9 8 7
6
No. Part
8 Activator cam
9 Ball bearing 5 mm
10 Latch hole plug
11 Spring
12 Latch
13 Lock body
14 Spring
21 5 3
1
4 2
No. Part
15 Pin
16 Bolt pusher
17 Plastic bumper
18 Bolt stopper
Socket set screw
19
with cone point
Spring for bolt
20
stopper
21 Bolt
9
