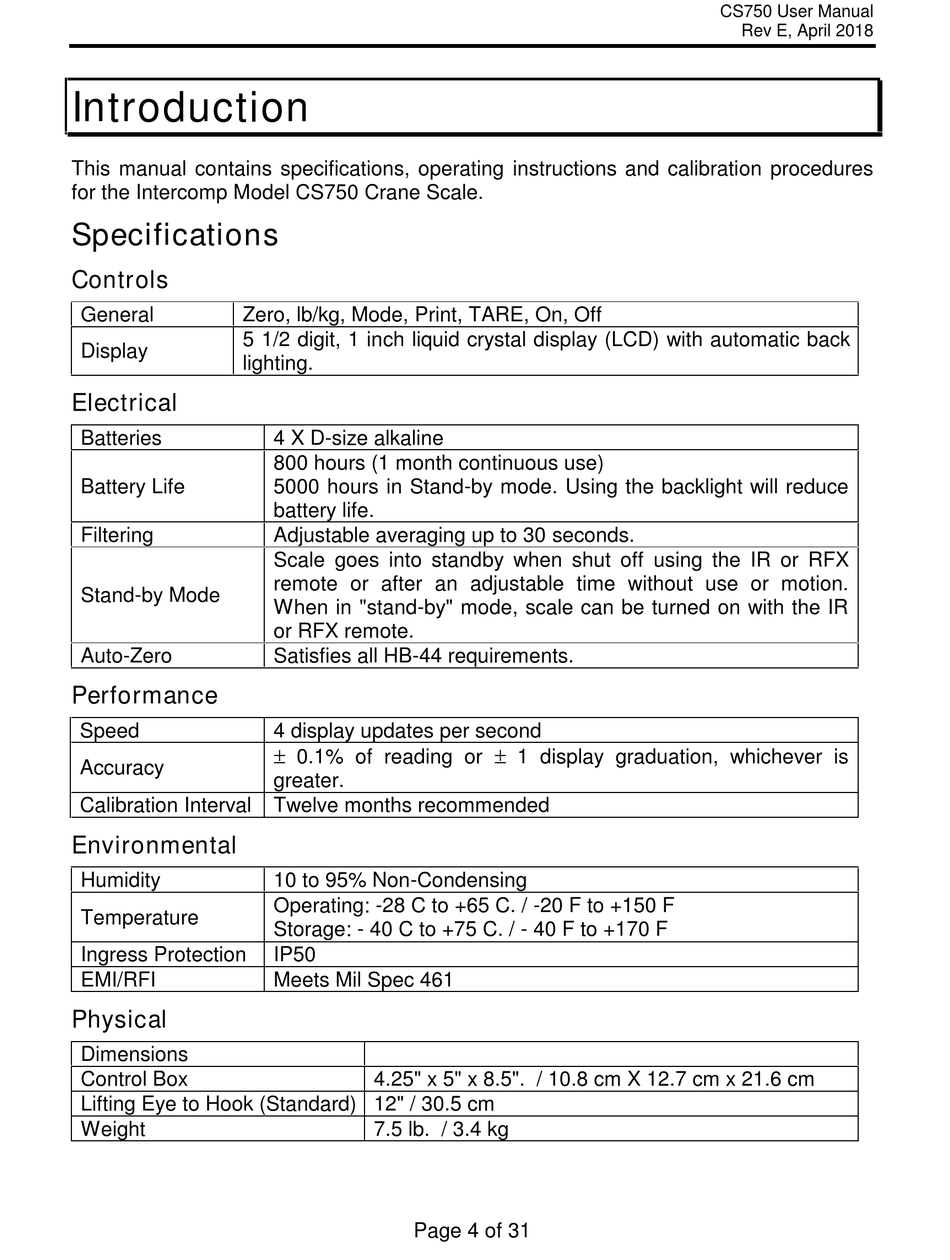

Introduction

This manual contains specifications, operating instructions and calibration procedures
for the Intercomp Model CS750 Crane Scale.

Specifications

Controls

General Zero, lb/kg, Mode, Print, TARE, On, Off
5 1/2 digit, 1 inch liquid crystal display (LCD) with automatic back
Display
lighting.

Electrical

Batteries
Battery Life
Filtering
Stand-by Mode
Auto-Zero

Performance

Speed
Accuracy
Calibration Interval

Environmental

Humidity
Temperature
Ingress Protection
EMI/RFI

Physical

Dimensions
Control Box
Lifting Eye to Hook (Standard) 12" / 30.5 cm
Weight
4 X D-size alkaline
800 hours (1 month continuous use)
5000 hours in Stand-by mode. Using the backlight will reduce
battery life.
Adjustable averaging up to 30 seconds.
Scale goes into standby when shut off using the IR or RFX
remote or after an adjustable time without use or motion.
When in "stand-by" mode, scale can be turned on with the IR
or RFX remote.
Satisfies all HB-44 requirements.
4 display updates per second
 0.1% of reading or  1 display graduation, whichever is
greater.
Twelve months recommended
10 to 95% Non-Condensing
Operating: -28 C to +65 C. / -20 F to +150 F
Storage: - 40 C to +75 C. / - 40 F to +170 F
IP50
Meets Mil Spec 461
4.25" x 5" x 8.5". / 10.8 cm X 12.7 cm x 21.6 cm
7.5 lb. / 3.4 kg
