- Page 1 CS200 User Manual Manual #: 700182-J Page 1 of 18...
-
Page 2: Table Of Contents
HANGING THE ATTERY HOW TO CONTACT INTERCOMP ......................18 This document is the property of Intercomp Co. and contains information that is confidential and protected under federal and/or state trade secret, unfair competition and copyright law. Any reproduction, use or disclosure... -
Page 3: Declaration Of Conformity
3839 County Road 116 Medina, Minnesota 55340 USA Declare under sole responsibility that the CS200 to which this declaration relates meets the essential health and safety requirements and is in conformity with the relevant EC Directives listed below using the relevant section of the following standards and other normative documents. -
Page 4: Introduction

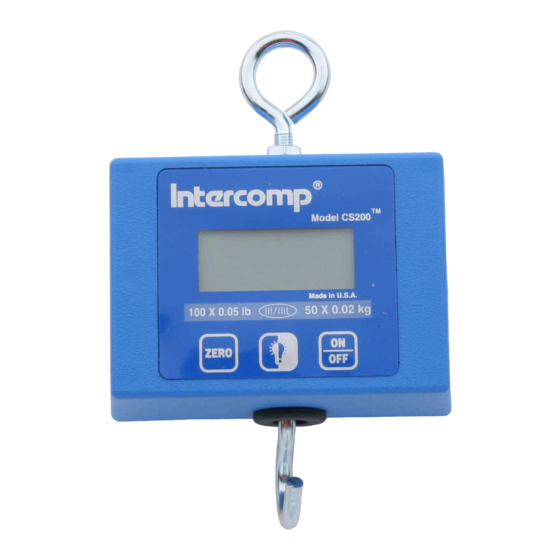

CS200 User Manual Rev J, April 2018 Introduction This manual contains specifications and operation instructions for the Intercomp model CS200 Crane Scale. Specifications Controls General Zero, Backlight, On/Off Display 4 digit LCD Electrical 1 (9-volt) size disposable alkaline or rechargeable Nickel-... -
Page 5: Operations
CS200 User Manual Rev J, April 2018 Operations Operating Practices Warning: The crane scale will be operated by qualified designated persons, trainees under the direct supervision of designated persons, maintenance and test personnel when in performance of their assigned duties, or lifting device inspectors. -
Page 6: Controls
Rev J, April 2018 Controls On/Off Press the On/Off key to turn the CS200 on. The unit will conduct a self-test. When the self-test has been successfully completed, the system will begin weighing. Press the On/Off key to turn the unit off. -
Page 7: Options Menu
When initially powered up, the unit will always be in Normal Operating mode. Print The Print feature is only applicable if the CS200 has the optional Serial Output feature. To enable the Print feature, access the Options menu. Press the ZERO key until the screen displays "". -
Page 8: Average Rate
180 minutes. Print Mode Select (Serial output) The Print Mode Select function is only applicable if the CS200 has the optional Serial Output feature. To set the Print Mode to Continuous Serial Output access the Options menu. -
Page 9: Maintenance
CS200 User Manual Rev J, April 2018 Maintenance Periodic Inspection The crane scale and all associated adaptive devices require periodic inspection and maintenance. The frequency and recording of the inspection requirements are set forth in following service category classifications and are dependent on the type of service that the equipment is used. -
Page 10: Removal From Service Criteria
CS200 User Manual Rev J, April 2018 Periodic Service Inspection (records required) A periodic visual inspection is completed at intervals indicated by the service category above by the operator or designated person and documented to provide the basis for continuing evaluation. The periodic inspection will cover areas in the frequent service inspection above and the following. - Page 11 CS200 User Manual Rev J, April 2018 Shackles Shackles shall be removed from service if damage is visible and shall only be returned to service when approved by a qualified person. Refer to the following list for examples: 1. The manufacturers name, trademark or the rated load identification is missing or illegible.
-
Page 12: Calibration
100% of the scales capacity. Calibration Verification Turn of the CS200. The unit will perform a self-test and lamp test. Upon successful completion of the self-test, the unit will enter the weigh mode and is ready to begin weighing. Intercomp recommends letting the electronics warm up for a minimum of three minutes to allow the electronics to stabilize for maximum accuracy before beginning the calibration check. -
Page 13: Calibration Introduction
Calibration Introduction Overview The CS200 has a three point calibration feature which reduces the effects of non- linearity in the load cells. The procedure requires that three weights be placed on the cell during calibration. The first weight must be greater than zero, the second greater than the first, and the final weight between the second weight and the cell capacity. -
Page 14: Calibration Procedure
CS200 User Manual Rev J, April 2018 Calibration Procedure 1. Turn the power OFF. 2. Remove the calibration blocking shunt to allow entry into calibration mode. 3. Turn the power ON. 4. Allow scale to warm up for a minimum of 3 minutes to allow electronics to stabilize. - Page 15 To calibrate with one point, turn off the scale when the screen displays "". To calibrate with two points, turn off the scale when the screen displays "". The CS200 can apply and load up to 10 calibration points. Continue with Step 11 to perform a multipoint weight calibration.
- Page 16 CS200 User Manual Rev J, April 2018 Weight Calibration (continued) 14. The scale displays the message "". Apply the third weight. Press the ZERO and BACKLIGHT keys together and release. Enter the value of the third weight. Press the ZERO and BACKLIGHT keys together and release to save the third weight.
-
Page 17: Troubleshooting
CS200 User Manual Rev J, April 2018 Troubleshooting Error Messages Message Definition EEPROM FAILURE Calibration Information Lost or Corrupted "" Calibration information is held in a special permanent memory area. A checksum code is generated and written to this memory during the calibration process. Each time the power is turned on this code is regenerated and compared to the stored value. -
Page 18: How To Contact Intercomp
CS200 User Manual Rev J, April 2018 How to Contact Intercomp Please provide the following information when requesting service for the CS200: 1. Item Description and Part Number (if available) 2. Serial Number(s) of Item (if available) 3. When was item purchased (mm/yyyy)? 4.
