Summary of Contents for Intercomp PROFESSIONAL SW777

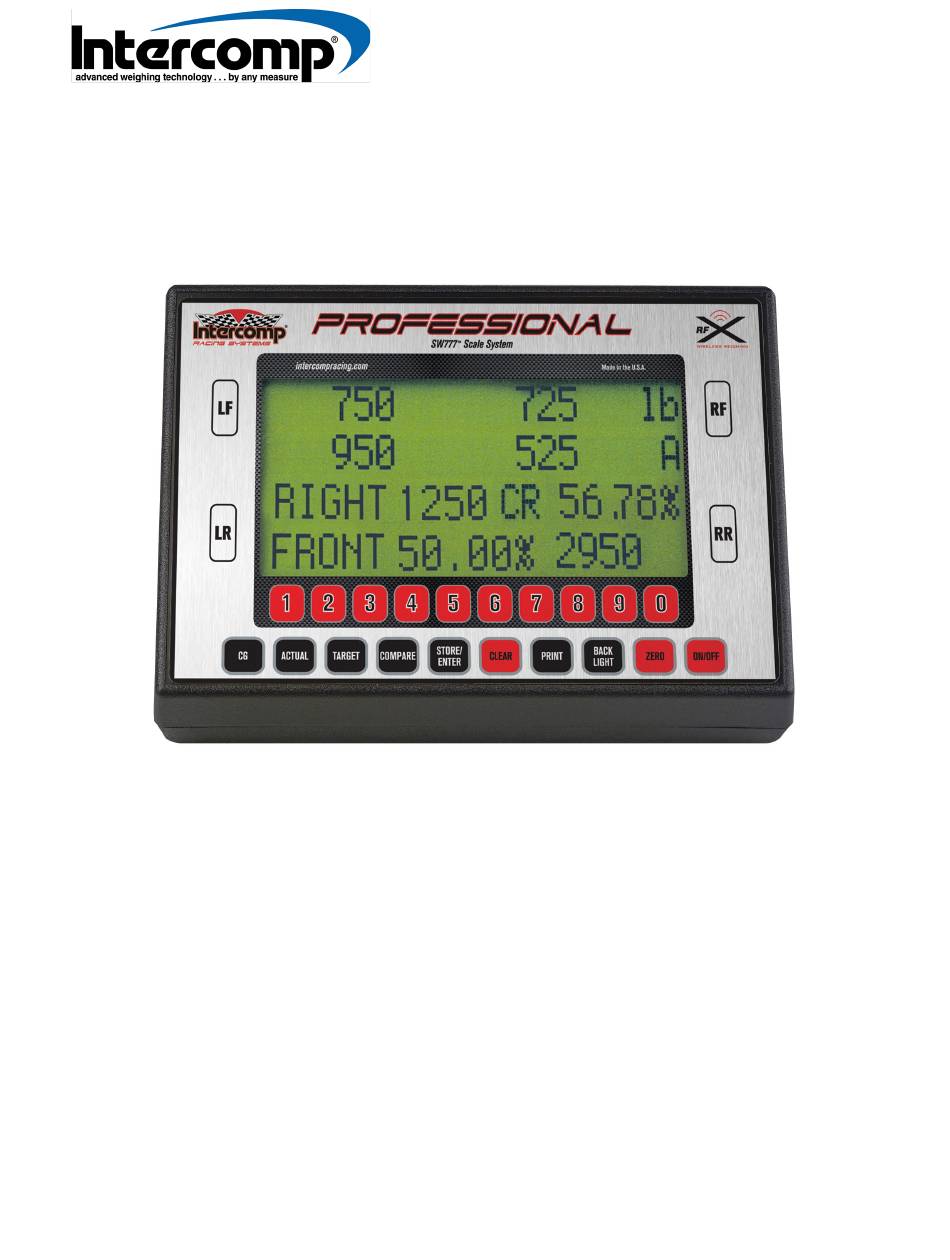

- Page 1 RFX LOAD STICK SYSTEMS User Manual Intercomp Co. (763)-476-2531 www.intercompcompany.com 3839 County Road 116 1-800-328-3336 Medina, MN 55340 U.S.A. Fax: (763)-476-2613...
-
Page 2: Table Of Contents
RFX Load Stick Systems 7005195 Rev A, August 2021 TABLE OF CONTENTS EU DECLARATION OF CONFORMITY ....................... 4 INTRODUCTION ............................6 OPTIONAL EQUIPMENT ......................... 6 SPECIFICATIONS ............................7 CONTROLS .............................. 7 ELECTRICAL ............................7 PERFORMANCE ............................7 ENVIRONMENTAL ........................... 8 PHYSICAL .............................. - Page 3 SCALE ERROR MESSAGES ......................36 INDICATOR ERROR MESSAGES ..................... 36 OPTIONAL EQUIPMENT INSTALL ......................37 MAINTENANCE ............................38 POWER / BATTERY..........................38 BATTERY REPLACEMENT - INDICATOR ..................38 AUTO-OFF AND SLEEP MODES ...................... 39 HOW TO CONTACT INTERCOMP SERVICE ................... 41 Page 3...
-
Page 4: Eu Declaration Of Conformity
3839 County Road 116 Medina, Minnesota 55340 USA Declare under the sole responsibility of Intercomp Company that the SW RFX Scale Systems which this declaration relates is in conformity with the relevant Union harmonization legislation, and meets the essential health and safety requirements, and is in conformity with the relevant EC Directives listed below using the relevant section of the following standards and other normative documents. - Page 5 The related technical construction files are held for inspection in the U.K. at Intercomp Europe Limited. Signed for and on the behalf of Intercomp Company:...
-
Page 6: Introduction
RFX Load Stick Systems 7005195 Rev A, August 2021 INTRODUCTION This manual contains specifications and operating instructions for Intercomp Load Stick Systems. OPTIONAL EQUIPMENT PART PRODUCT DESCRIPTION NUMBER SUSPENSION LOADSTICK Short Body Length working range 174004 (BODY ONLY) - SHORT LENGTH 15 inch –... -
Page 7: Specifications
RFX Load Stick Systems 7005195 Rev A, August 2021 SPECIFICATIONS CONTROLS DISPLAY KEYS ON/OFF ZERO BACKLIGHT PRINT CLEAR STORE/ENTER ACTUAL TARGET COMPARE NUMERIC KEYSCALE DISPLAY SCREEN 4 Line X 20 Character (0.5 inch), LCD Readout ELECTRICAL FUNCTION DESCRIPTION Voltage 6 - 15 VDC @ 0.4A, or supplied universal input power supply/charger Batteries 4 x AA NiMH rechargeable or 4 x AA alkaline batteries Battery Life... -
Page 8: Environmental
RFX Load Stick Systems 7005195 Rev A, August 2021 SPECIFICATIONS ENVIRONMENTAL FUNCTION DESCRIPTION Humidity 10 to 95% non-condensing Operating +14 F to +122 F / -10 C to +50 C Temperature Storage -40 F to +170 F / -40 C to +75 C PHYSICAL ITEM DESCRIPTION... -
Page 9: Radio
RFX Load Stick Systems 7005195 Rev A, August 2021 SPECIFICATIONS RADIO FUNCTION SPECIFICATION Radio Frequency ISM 2.4GHz, 802.15.4 DSSS* License Requirements None. Pre-approved US/FCC, CAN/IC, EUR/CE Bluetooth (RFX Indicator Only) For use with mobile app connection Range 75 ft / 25m indoor, 150 ft / 45m line of sight ... -
Page 10: Indicator Overview
7005195 Rev A, August 2021 INDICATOR OVERVIEW Intercomp supplies a variety of vehicle scale systems that include a comprehensive line-up of indicator options. The SW777 RFX Indicator is shown below. This section provides an overview on the capabilities and operation of the SW RFX series scale systems and indicators. -
Page 11: Backlight
Press the PRINT key to access the PRINT Menu. Press the 1 key to print the screen. The print format displayed will be the same as the last active screen format used. The following screenshot is an example of a print layout. INTERCOMP, U.S.A. TEL: 763-476-2531 ACTUAL LBS... -
Page 12: Clear
RFX Load Stick Systems 7005195 Rev A, August 2021 INDICATOR OVERVIEW Indicator Controls (continued) To select the continuous serial output setting, press the 1 key. Three selections are available. SETTING FUNCTION Continuous output disabled. Print screen enabled MULTI-LINE Continuous output enabled, multi-line format TOTAL ONLY Continuous output enabled, total only format The Baud Rate of the SW scale must match the Baud Rate setting of the indicator to... -
Page 13: Center Of Gravity - Cg
RFX Load Stick Systems 7005195 Rev A, August 2021 INDICATOR OVERVIEW Indicator Controls (continued) CENTER OF GRAVITY – CG ATTENTION: The Center of Gravity feature on the indicator is designed to be used with the RFX Scale Systems Press the Center of Gravity (CG) key to access Center of Gravity feature. Press the 1 key for Standard CG. -
Page 14: Lf, Rf, Lr, Rr
RFX Load Stick Systems 7005195 Rev A, August 2021 INDICATOR OVERVIEW Indicator Controls (continued) LF, RF, LR, RR The following keys are used when in the Road Racing format. DESCRIPTION Left Front Right Front Left Rear Right Rear When a key is pressed, the corresponding scale toggles between select and unselect. If the scale is selected, an arrow will be displayed to the left of the weight displayed on the screen. -
Page 15: Change Display Format
RFX Load Stick Systems 7005195 Rev A, August 2021 Press the 3 key to access the Hub Mode options. Refer to the Quick Start (Hub Mode) section for further instructions on how to configure the system. INDICATOR OVERVIEW Special key Combinations (continued) 5. -
Page 16: Lock Display Format
RFX Load Stick Systems 7005195 Rev A, August 2021 INDICATOR OVERVIEW Change Display Format (continued) LOCK DISPLAY FORMAT The Lock Display Format feature allows a specific display format to be displayed immediately after power-up. The different display formats are presented in the Auto Displays and Kart Displays sections. -
Page 17: Manually Enter The Target Setup
RFX Load Stick Systems 7005195 Rev A, August 2021 INDICATOR OVERVIEW Baseline Setup (continued) MANUALLY ENTER THE TARGET SETUP To manually enter target weights, press the STORE/ENTER key. Enter setting 00. Press the STORE/ENTER key. Press one of the keys referenced in the following table to select the method used to enter the target weights. - Page 18 RFX Load Stick Systems 7005195 Rev A, August 2021 INDICATOR OVERVIEW Baseline Setup (continued) 2: WEDGE Manually entering values in Wedge format enables targets to be entered with respect following parameters: Total Weight, Left Side %, Rear % and Wedge %. 1.
-
Page 19: Recall Baseline Setup
RFX Load Stick Systems 7005195 Rev A, August 2021 INDICATOR OVERVIEW Baseline Setup (continued) ATTENTION: This feature on the indicator is designed to be used with the RFX Scale Systems. RECALL BASELINE SETUP To recall one of the 99 setups, use the numeric keypad to access a memory location between 0-99. -
Page 20: Display Contrast
RFX Load Stick Systems 7005195 Rev A, August 2021 DISPLAY CONTRAST Adjusting the contrast can improve the viewing quality of the display when viewed from different angles. The display contrast is adjusted by pressing the BACKLIGHT key and one of the wheel keys simultaneously. Press the BACKLIGHT key and either the RF or LF key simultaneously to increase the contrast. -
Page 21: Operation
RFX Load Stick Systems 7005195 Rev A, August 2021 OPERATION QUICK START NORMAL MODE Setup the Load Sticks as described in the following section labeled LOAD STICK OPERATION. Turn the indicator on. Turn the Load Sticks on. The copyright screen will be briefly displayed followed by the Change Display Format screen. -
Page 22: Load Stick Operation
RFX Load Stick Systems 7005195 Rev A, August 2021 LOAD STICK OPERATION RIDE HEIGHT (STATIC POSITION) 1. Set racecar at ride height (static position). 2. Remove the shock from the wheel location where you will be installing the Load Stick. a. -
Page 23: Indicator Display Layout Overview
RFX Load Stick Systems 7005195 Rev A, August 2021 OPERATION INDICATOR DISPLAY LAYOUT OVERVIEW DEFAULT MODE DESCRIPTION The following parameters are displayed: Individual Wheel OVAL TRACK Weight, Left Side %, Rear %, Cross %, Total Weight The following parameters are displayed: Individual Wheel CUP/NW Weight, Right Side Weight, Front %, Cross %, Total Weight Selection #3 (Road Racing) is a dynamic display format to... -
Page 24: Automotive Displays
RFX Load Stick Systems 7005195 Rev A, August 2021 OPERATION AUTOMOTIVE DISPLAYS The following displays are representative of the displays referenced in the Automotive Overview section. OVAL TRACK Units 725 lb A = Actual T = Target NOTE LEFT 57.63% C 56.78% C = Compare CR = Cross = LR + RF REAR 50.00% 2950... -
Page 25: Dirt Track
RFX Load Stick Systems 7005195 Rev A, August 2021 OPERATION Automotive Displays (continued) DIRT TRACK LEFT 1700 57.63% REAR 1475 50.00% CROSS 1675 56.78% NOTE Rear Bite = LR - RR REAR BITE DRAG/RALLY FRONT 50.00% REAR 50.00% 2950 WHEELS AND PERCENTAGES Front % LF 750F 50.0 Left Side %... -
Page 26: Total
RFX Load Stick Systems 7005195 Rev A, August 2021 OPERATION Automotive Displays (continued) TOTAL TOTAL: 2950 lbs TOTAL + 4 TOTAL: 2950 lbs Page 26... -
Page 27: Japan Version
RFX Load Stick Systems 7005195 Rev A, August 2021 OPERATION Special Displays (continued) JAPAN VERSION Simultaneously press the LF key, 2 key and CLEAR key to toggle the JAPAN display format. Turn the scale off and then turn on the scale back on. The following screenshot will be displayed. -
Page 28: Rf-Lf Cross Version
RFX Load Stick Systems 7005195 Rev A, August 2021 OPERATION Special Displays (continued) RF-LF CROSS VERSION Simultaneously press the LF key, 2 key and CLEAR key to toggle the RF-LF CROSS version display format. The RF Minus LF Cross is the RF Weight minus the LF Weight. Turn the scale off and then turn the scale back on. -
Page 29: Iraceweigh Bluetooth Connection
Bluetooth on IOS devices. Failure to allow access will deny permission to the app to use the mobile device Bluetooth feature. 5. Navigate to the Settings tab. Switch the Connection Mode from Intercomp Wi-Fi Module to Bluetooth. 6. Return to the main Weights tab. Click on the Refresh arrow located in the bottom left corner of the screen. - Page 30 RFX Load Stick Systems 7005195 Rev A, August 2021 OPERATION iRaceWeigh Bluetooth Connection (continued) AUTO-CONNECT ENABLED If the most recent contacted indicator is on list, iRaceWeigh will attempt to connect with that indicator. If the most recent connected device is not on the list, the available indicators will be displayed.
-
Page 31: Serial Output
RFX Load Stick Systems 7005195 Rev A, August 2021 SERIAL OUTPUT Serial Output is available on the stereo jack (RS232) and the USB port located on the left side of the indicator. The Serial Output setting has three options; 1) OFF (on demand print screen), 2) Multi-Line Continuous, 3) Total Only Continuous. -
Page 32: Stereo Jack Rs232
RFX Load Stick Systems 7005195 Rev A, August 2021 SERIAL OUTPUT STEREO JACK RS232 The RS-232 Output is accessed using the stereo jack located on the left side panel of the indicator. The Stereo Jack is typically used to connect the indicator to an optional external printer. -
Page 33: Troubleshooting
RFX Load Stick Systems 7005195 Rev A, August 2021 TROUBLESHOOTING iRaceWeigh BLUETOOTH CONNECTION The following instructions should be initiated if problems are encountered when trying to connect the mobile device with the iRaceWeigh app. If connection is achieved at any time while going through the troubleshooting steps, stop the troubleshooting at that step. - Page 34 RFX Load Stick Systems 7005195 Rev A, August 2021 TROUBLESHOOTING iRaceWeigh Bluetooth Connection (continued) 6. Reset Pairing 1) To reset device pairing on the indicator, press the PRINT key and ZERO key simultaneously. Press the 5 key to access the BLUETOOTH-APP Link menu. Press the 3 key to reset pairing on the indicator.
-
Page 35: Ios Pairing
RFX Load Stick Systems 7005195 Rev A, August 2021 TROUBLESHOOTING IOS PAIRING If the Bluetooth Pairing Request times out after 30 seconds or is cancelled when pairing an iOS device with the Bluetooth indicator for the first time, the iOS device will remain connected with the indicator it was being paired too. -
Page 36: Error Messages
Charge batteries if using BATTERY rechargeable NiMH batteries. EEPROM ERROR EEPROM check fail. Contact Intercomp Service Department for ENTER CODE: 00 assistance. This is not an error, but a notice that the Hub Mode Compensation setting is enabled. If not using a hub plate COMPENSATION system, disable the Hub Mode. -
Page 37: Optional Equipment Install
RFX Load Stick Systems 7005195 Rev A, August 2021 OPTIONAL EQUIPMENT INSTALL 1. Remove the two 10-32 screws that are holding the limiting cables on. 2. Unscrew each end of the Load Stick leaving the hex body detached from the Load Stick. -
Page 38: Maintenance
RFX Load Stick Systems 7005195 Rev A, August 2021 MAINTENANCE POWER / BATTERY The SW RFX Indicator is shipped from the factory with four rechargeable NiMH batteries. The indicator will also operate on four standard AA alkaline batteries. WARNING: Do not plug in the battery charger if using non-rechargeable AA alkaline batteries. -
Page 39: Auto-Off And Sleep Modes
RFX Load Stick Systems 7005195 Rev A, August 2021 MAINTENANCE Battery Replacement (continued) 1. Press in top left corner of the battery compartment cover and slide the cover to the side. Remove the old batteries. Install new batteries, paying special attention to battery polarity. - Page 40 RFX Load Stick Systems 7005195 Rev A, August 2021 1000 hours. However, the scales do not completely shut down so it is recommended the scale be turned off if it will not be used for an extended period. Page 40...
-
Page 41: How To Contact Intercomp Service
1. Item Description and Part Number (if available) 2. Serial Number(s) of Item (if available) 3. When was item purchased (mm/yyyy)? 4. Where was item purchased (company/location)? For Intercomp Service call or fax: 763)-476-2531 1-800-328-3336 FAX (763)-476-2613 Or complete the Service Support request form at: http://www.intercompcompany.com/service-contact.html... - Page 42 RFX Load Stick Systems 7005195 Rev A, August 2021 ALL RIGHTS RESERVED NOTES Page 42...
- Page 43 Corporate Office 3839 County Road 116 Medina, MN 55340 U.S.A. Tel. (763)-476-2531, 1-800-328-3336 Fax: (763)-476-2613 www.intercompcompany.com Intercomp Service Department 3839 County Road 116 Medina, MN 55340 U.S.A. Tel. (763)-476-2531, 1-800-328-3336 Fax:(763)-476-2613...
