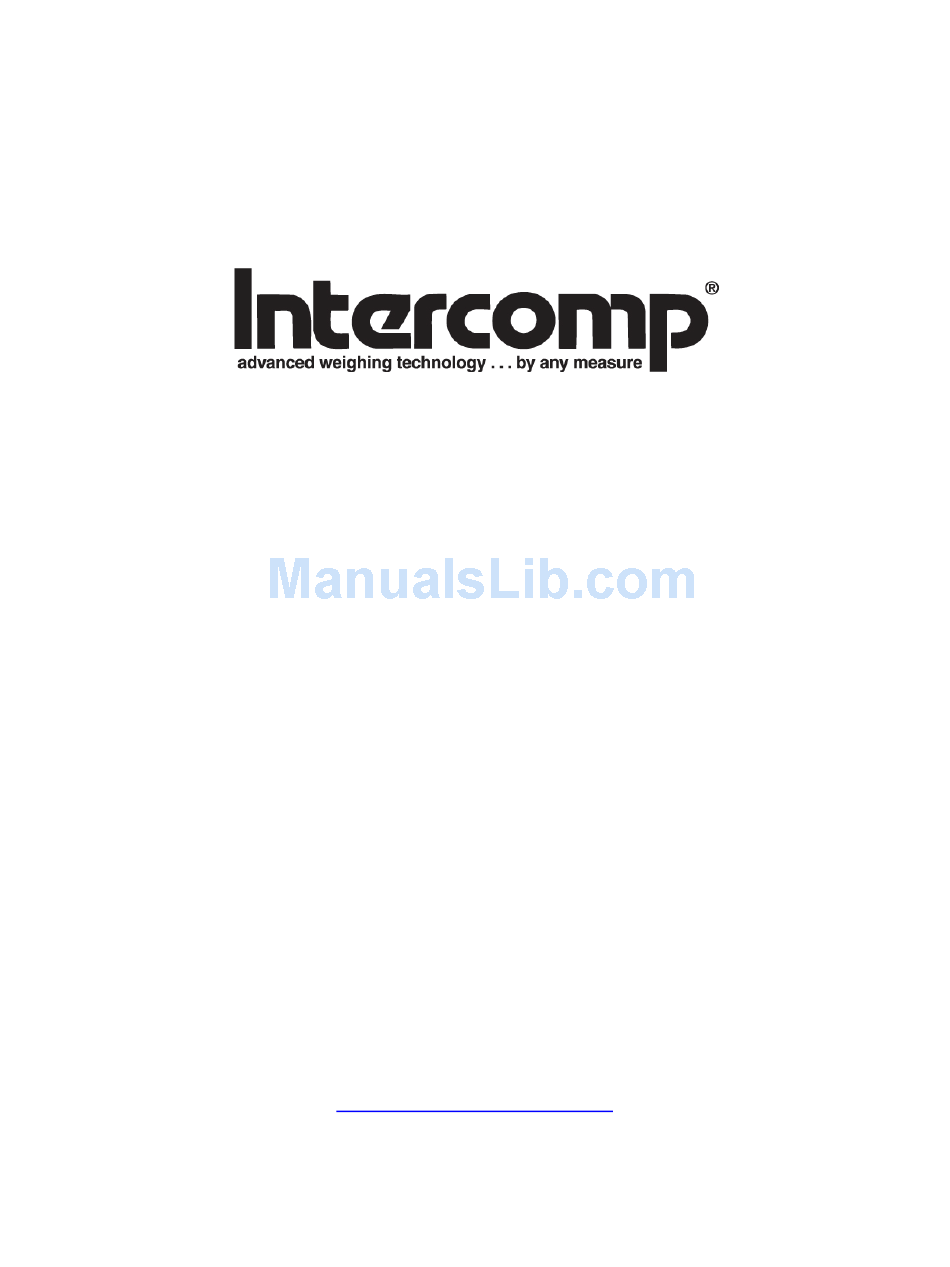

- Page 1 CS200 Users Manual Intercomp Co. 3839 County Road 116 Medina, MN 55340 U.S.A. (763)-476-2531 1-800-328-3336 Fax: 763-476-2613 www.intercompcompany.com Manual #: 700182-H Page 1 of 15...
-
Page 2: Table Of Contents
ATTERY HOW TO REACH INTERCOMP ...........................15 "This document is the property of Intercomp Co. It contains material and information that is confidential and protected under federal and/or state trade secret, unfair competition, and copyright law. Any reproduction, use or disclosure... -
Page 3: Introduction

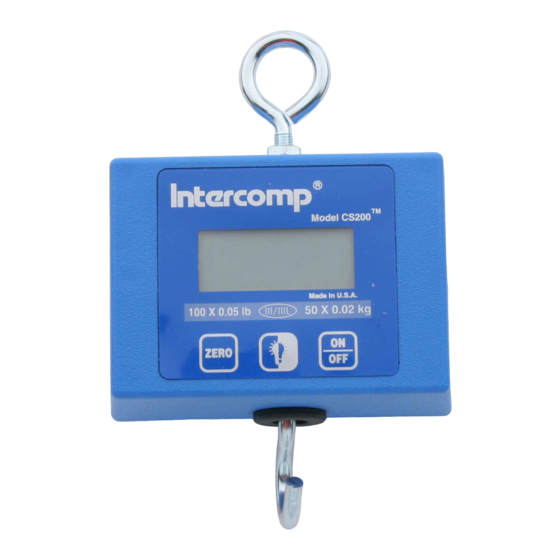

CS200, Users August, 2009 Introduction This manual contains specifications and operation instructions for Intercomp's model CS200 Crane Scale. Specifications Controls General: Zero, backlight, On/Off. Display: 4 digit LCD. Electrical Batteries: 1 (9-volt) size disposable alkaline or rechargeable Nickel- Cadmium cell. -
Page 4: Operations
CS200, Users August, 2009 Operations Operating Practices Warning: The crane scale will be operated by qualified designated persons, trainees under the direct supervision of designated persons, maintenance and test personnel when in performance of their assigned duties, or lifting device inspectors. -
Page 5: Controls
NOTE: The scale will briefly display the firmware version when turning off. ZERO Tells the CS200 to display a zero weight. If you press ZERO with weight on the pad, that weight becomes the zero condition for the scale. When this weight is removed, a negative weight shows until the system is zeroed again. -
Page 6: Units Switching (Lb And Kg)
The unit will always turn on in “normal” operating mode. Print This feature is only applicable if you have the serial output version of the CS200. To print: Access the options menu. Press ZERO until the display reads “Prnt Prnt”. -
Page 7: Sleep
The maximum time is 180 minutes. Serial output This feature is only applicable if you have the serial output version of the CS200. To turn on continuous serial output: Access the options menu. Press ZERO until the display reads “SEr SEr”. -
Page 8: Maintenance
CS200, Users August, 2009 Maintenance Periodic Inspection The crane scale and all associated adaptive devices require periodic inspection and maintenance. The frequency and recording of the inspection requirements are found in service categories below and are dependant on the type of service that the equipment is used in as described below. -
Page 9: Removal From Service Criteria
CS200, Users August, 2009 3. Inspect for excessive wear of linkages and other mechanical parts. 4. Inspect for excessive wear at hoist hooking points and load support clevices or pins. 5. Inspect for any visible bends or twists of all used rigging devices. -
Page 10: How To Enter A Number
Three point span This CS200 has a three point calibration feature which reduces the effects of non- linearity in the load cells. This requires that you place three weights on the cell during calibration. The first weight must be greater than zero, the second greater than the first, and the final weight somewhere between the second and the capacity. -
Page 11: How To Calibrate The Cs200
August, 2009 How to calibrate the CS200 The following details the calibration procedure for the Intercomp CS200 crane scale. There are four parameters that can be set before entering the actual calibration. When changing a value, advance at least to “save save”... - Page 12 CS200, Users August, 2009 scale, but will also use the battery life more quickly. Press Zero until the desired read rate is displayed. (see cal menu table above) Enter the read rate (1 to 7). Press ZERO and BACKLIGHT together and release to enter the number 6.
- Page 13 CS200, Users August, 2009 Weight Calibration 10. The scale shows “CAL CAL”. Press ZERO and backlight keys together and release. The recommended calibration type is 3 point linear. Enter “0101”. Otherwise enter “1” for a 1 point calibration. 11. The scale shows “LL00 LL00 LL00”.
-
Page 14: Error Messages
The scale is over capacity or outside the A/D converter range. Reduce the OE OE load to the scale. If the CS200 continues to display “OE OE OE OE”, the problem could be a bad load cell, bad load cell wiring, or a bad chip on the circuit board. -
Page 15: How To Reach Intercomp
How to reach Intercomp Things to know: The service is for a CS200. When did you purchase your CS200? What is your serial number? Whom did you purchase the CS200 through? For Intercomp Service call or fax: FAX # (763)-476-2613 (763)-476-2531 1-800-328-3336 or fill out the Service Support form at: www.intercompcompany.com...
