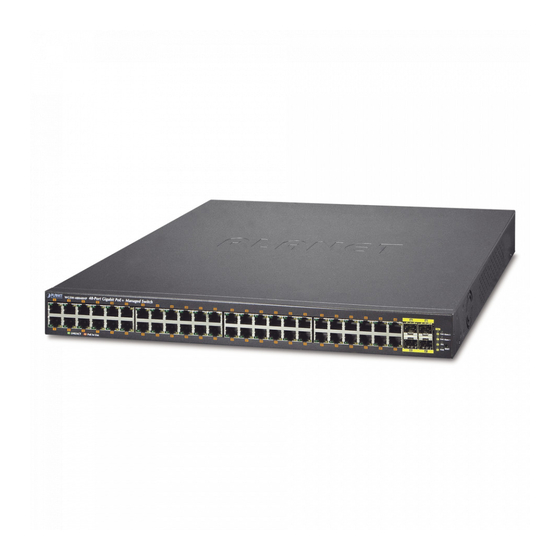

Planet Networking & Communication WGSW-48040HP Command Manual

L2+ 48-port 10/100/1000t 802.3at poe + 4-port shared 100/1000x sfp managed switch with hardware layer3 ipv4/ipv6 static routing
Hide thumbs Also See for WGSW-48040HP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WGSW-48040HP and is the answer not in the manual?

Questions and answers

Related Manuals for Planet Networking & Communication WGSW-48040HP

Summary of Contents for Planet Networking & Communication WGSW-48040HP

  • Page 2: Table Of Contents

    Command Guide of WGSW-48040HP Contents Chapter 1 COMMAND LINE INTERFACE............18 1.1 Accessing the CLI ....................... 18 1.2 Command Line Modes....................18 1.3 Requirements ......................19 Chapter 2 CONSOLE CLI MANAGEMENT............20 2.1 Terminal Setup ......................20 2.2 Logon to the Console ....................22 2.3 Configuring IP Address ....................
  • Page 3 Command Guide of WGSW-48040HP 4.1.20 clear ip statistics system icmp interface vlan .....................34 4.1.21 clear ipv6 mld snooping statistics ........................34 4.1.22 clear ipv6 mld snooping vlan ..........................34 4.1.23 clear ipv6 neighbors ............................35 4.1.24 clear ipv6 statistics icmp icmp-msg ........................35 4.1.25 clear ipv6 statistics icmp interface vlan......................36 4.1.26 clear ipv6 statistics system icmp icmp-msg .......................36...
  • Page 4 Command Guide of WGSW-48040HP 4.2.14 access-list ace ..............................51 4.2.15 access-list ace update ............................52 4.2.16 access-list rate-limiter............................53 4.2.17 access-list rate-limiter pps ..........................53 4.2.18 aggregation mode..............................54 4.2.19 banner ................................55 4.2.20 banner exec...............................55 4.2.21 banner login...............................56 4.2.22 banner motd ..............................57 4.2.23 clock summer-time ............................57 4.2.24 clock timezone..............................58...
  • Page 5 Command Guide of WGSW-48040HP 4.2.45.10 description .............................74 4.2.45.11 do ................................74 4.2.45.12 dot1x guest-vlan ............................75 4.2.45.13 dot1x port-control ..........................75 4.2.45.14 dot1x radius-qos............................76 4.2.45.15 dot1x radius-vlan ...........................77 4.2.45.16 dot1x re-authenticate..........................77 4.2.45.17 duplex..............................78 4.2.45.18 end ................................78 4.2.45.19 excessive-restart ...........................79 4.2.45.20 exit.................................79 4.2.45.21 flowcontrol .............................80 4.2.45.22 green-ethernet energy-detect ........................80...
  • Page 6 Command Guide of WGSW-48040HP 4.2.45.51 lldp tlv-select system-capabilities ......................95 4.2.45.52 lldp tlv-select system-description......................95 4.2.45.53 lldp tlv-select system-name ........................96 4.2.45.54 lldp transmit ............................96 4.2.45.55 loop-protect ............................97 4.2.45.56 loop-protect action..........................97 4.2.45.57 loop-protect tx-mode ..........................98 4.2.45.58 loop-protect tx-mode ..........................98 4.2.45.59 mac address-table learning ........................99 4.2.45.60 media-type............................100...
  • Page 7 Command Guide of WGSW-48040HP 4.2.45.92 qos pcp..............................118 4.2.45.93 qos policer ............................118 4.2.45.94 qos queue-policer queue ........................119 4.2.45.95 qos queue-shaper queue ........................119 4.2.45.96 qos shaper............................120 4.2.45.97 qos storm broadcast..........................120 4.2.45.98 qos storm unicast ..........................121 4.2.45.99 qos storm unknown ..........................121 4.2.45.100 qos tag-remark ..........................122...
  • Page 8 Command Guide of WGSW-48040HP 4.2.45.133 switchport voice vlan security ......................141 4.2.46 interface vlan ..............................142 4.2.46.1 do ................................142 4.2.46.2 end ................................143 4.2.46.3 exit.................................143 4.2.46.4 ip address..............................144 4.2.46.5 ip address dhcp .............................145 4.2.46.6 ip address dhcp fallback ........................145 4.2.46.7 ip dhcp server............................146 4.2.46.8 ip igmp snooping ...........................146...
  • Page 9 Command Guide of WGSW-48040HP 4.2.53.5 default-router ............................165 4.2.53.6 dns-server .............................165 4.2.53.7 do ................................166 4.2.53.8 domain-name ............................166 4.2.53.9 end ................................167 4.2.53.10 exit...............................167 4.2.53.11 hardware-address ..........................168 4.2.53.12 host ..............................168 4.2.53.13 lease..............................169 4.2.53.14 netbios-name-server ...........................169 4.2.53.15 netbios-node-type..........................170 4.2.53.16 netbios-scope ............................170 4.2.53.17 network..............................171 4.2.53.18 nis-domain-name..........................171 4.2.53.19 nis-server.............................172...
  • Page 10 Command Guide of WGSW-48040HP 4.2.74.3 do ................................186 4.2.74.4 end ................................186 4.2.74.5 exit.................................187 4.2.74.6 no ................................187 4.2.74.7 range ..............................188 4.2.75 ipv6 mld host-proxy ............................188 4.2.76 ipv6 mld host-proxy leave-proxy ........................189 4.2.77 ipv6 mld snooping............................190 4.2.78 ipv6 mld snooping vlan ............................190 4.2.79 ipv6 mld ssm-range ............................191 4.2.80 ipv6 mld unknown-flooding ..........................191...
  • Page 11 Command Guide of WGSW-48040HP 4.2.97 logging on................................208 4.2.98 loop-protect ..............................209 4.2.99 loop-protect shutdown-time ..........................209 4.2.100 loop-protect transmit-time..........................210 4.2.101 mac address-table aging-time ........................210 4.2.102 mac address-table static..........................211 4.2.103 monitor destination ............................212 4.2.104 monitor source...............................212 4.2.105 mvr ................................213 4.2.106 mvr name <mvr_name> channel ........................213 4.2.107 mvr name <mvr_name>...
  • Page 12 Command Guide of WGSW-48040HP 4.2.132.6 reboot-only ............................231 4.2.133 port-security..............................232 4.2.134 port-security aging ............................232 4.2.135 port-security aging time ..........................233 4.2.136 privilege .................................233 4.2.137 qos map cos-dscp ............................234 4.2.138 qos map dscp-classify ...........................235 4.2.139 qos map dscp-cos ............................236 4.2.140 qos map dscp-egress-translation........................237 4.2.141 qos map dscp-ingress-translation........................238...
  • Page 13 Command Guide of WGSW-48040HP 4.2.163.1 do ................................260 4.2.163.2 end ..............................261 4.2.163.3 exit...............................262 4.2.163.4 no ................................262 4.2.163.5 spanning-tree auto-edge ........................263 4.2.163.6 spanning-tree bpdu-guard ........................263 4.2.163.7 spanning-tree edge ..........................264 4.2.163.8 spanning-tree link-type ........................264 4.2.163.9 spanning-tree mst <instance> cost......................265 4.2.163.10 spanning-tree mst <instance> port-priority ..................265 4.2.163.11 spanning-tree restricted-role......................266...
  • Page 14 Command Guide of WGSW-48040HP 4.4.1 debug ................................282 4.5 delete ......................... 283 4.5.1 delete.................................283 4.6 dir ..........................284 4.6.1 dir ..................................284 4.7 disable ........................284 4.7.1 disable ................................284 4.8 do ..........................285 4.8.1 do ..................................285 4.9 dot1x .......................... 285 4.9.1 dot1x initialize ..............................285 4.10 enable ........................
  • Page 15 Command Guide of WGSW-48040HP 4.20 show......................... 294 4.20.1 show aaa .................................294 4.20.2 show access management ..........................295 4.20.3 show access-list ..............................296 4.20.4 show access-list ..............................297 4.20.5 show access-list ace-status ..........................298 4.20.6 show aggregation ............................299 4.20.7 show aggregation mode ..........................300 4.20.8 show clock...............................301 4.20.9 show clock detail .............................301...
  • Page 16 Command Guide of WGSW-48040HP 4.20.41 show ip name-server .............................324 4.20.42 show ip route ..............................325 4.20.43 show ip source binding ..........................325 4.20.44 show ip ssh..............................326 4.20.45 show ip statistics............................326 4.20.46 show ip verify source .............................328 4.20.47 show ipmc profile............................329 4.20.48 show ipmc range ............................329 4.20.49 show ipv6 interface............................330...
  • Page 17 Command Guide of WGSW-48040HP 4.20.82 show pvlan isolation ............................354 4.20.83 show qos ...............................355 4.20.84 show radius-server ............................357 4.20.85 show rmon alarm ............................358 4.20.86 show rmon event ............................359 4.20.87 show rmon history ............................359 4.20.88 show rmon statistics ............................360 4.20.89 show running-config ............................361 4.20.90 show snmp ..............................363...

  • Page 18: Chapter 1 Command Line Interface

    Command Guide of WGSW-48040HP Chapter 1 COMMAND LINE INTERFACE 1.1 Accessing the CLI When accessing the management interface for the switch over a direct connection to the server’s console port, or via a Telnet connection, the switch can be managed by entering command keywords and parameters at the prompt. Using the switch's command-line interface (CLI) is very similar to entering commands on a UNIX system.

  • Page 19: Requirements

    Command Guide of WGSW-48040HP The CLI provides the following modes:  User Mode When the operator logs into the CLI, the User Mode is the initial mode. The User Mode contains a limited set of commands. The command prompt shown at this level is: Command Prompt: switch>...

  • Page 20: Chapter 2 Console Cli Management

    Plus, Telix, Winterm and so on) to enter the startup screen of the device. WGSW-48040HP Rear Panel Figure 2-2: Rear Panels of WGSW-48040HP Console port A terminal program is required to make the software connection to the Managed Switch. Windows' Hyper Terminal program may be a good choice.
  • Page 21 Command Guide of WGSW-48040HP Figure 2-3 Hyper Terminal COM Port Configuration You can change these settings, if desired, after you log on. This management method is often preferred because you can remain connected and monitor the system during system reboots. Also, certain error messages are sent to the serial port, regardless of the interface through which the associated action was initiated.

  • Page 22: Logon To The Console

    Command Guide of WGSW-48040HP 2.2 Logon to the Console Once the terminal is connected to the device, power on the Managed Switch, and the terminal will display “running testing procedures”. Then, the following message asks to log-in user name and password. The factory default user name and...
  • Page 23 Command Guide of WGSW-48040HP  Show the current IP Address At the “#” prompt, enter “show ip interface brief”. The screen displays the current IP address and Subnet Mask as shown in Figure 2-5. Figure 2-5: IP Information Screen ...
  • Page 24 Command Guide of WGSW-48040HP Repeat step 1 to check if the IP address is changed.  Store current switch configuration At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 2-7: Saving Current Configuration Command Screen If the IP is successfully configured, the Managed Switch will apply the new IP address setting immediately.

  • Page 25: Chapter 3 Telnet Cli Management

    Command Guide of WGSW-48040HP Chapter 3 TELNET CLI MANAGEMENT 3.1 Telnet Login The Managed Switch also supports telnet for remote management. The switch asks for user name and password for remote login when using telnet, please use “admin” for username & password.

  • Page 26: Chapter 4 Commands For Cli Configuration

    Command Guide of WGSW-48040HP Chapter 4 Commands for CLI Configuration 4.1 clear 4.1.1 clear access management statistics Command: clear access management statistics Default: Usage Guide: To clear the access management statistics. Example: To clear the Switch’s access management statistics. Switch# clear access management statistics 4.1.2 clear access-list ace statistics...

  • Page 27: Clear Dot1X Statistics Interface

    Command Guide of WGSW-48040HP 4.1.3 clear dot1x statistics interface Command: clear dot1x statistics interface GigabitEthernet | 10GigabitEthernet Default: Usage Guide: To clear the dot1x statistics. Example: To clear the Switch’s GigabitEthernet 1/25 dot1x statistics. Switch# clear dot1x statistics interface GigabitEthernet 1/25 4.1.4 clear ip arp...

  • Page 28: Clear Ip Dhcp Detailed Statistics Client

    Command Guide of WGSW-48040HP Usage Guide: To clear the DHCP detailed statistics for all. Example: To clear the Switch’s DHCP detailed statistics for all. Switch# clear ip dhcp detailed statistics all 4.1.6 clear ip dhcp detailed statistics client Command: clear ip dhcp detailed statistics client...

  • Page 29: Clear Ip Dhcp Detailed Statistics Server

    Command Guide of WGSW-48040HP 4.1.8 clear ip dhcp detailed statistics server Command: clear ip dhcp detailed statistics server Default: Usage Guide: To clear the DHCP server statistics. Example: To clear the Switch’s DHCP server statistics. Switch# clear ip dhcp detailed statistics server 4.1.9 clear ip dhcp detailed statistics snooping...

  • Page 30: Clear Ip Dhcp Server Binding

    Command Guide of WGSW-48040HP Usage Guide: To clear the DHCP relay statistics. Example: To clear the Switch’s DHCP relay statistics. Switch# clear ip dhcp relay statistics 4.1.11 clear ip dhcp server binding Command: clear ip dhcp server binding <IP> <IP> A.B.C.D...

  • Page 31: Clear Ip Dhcp Server Binding Expired

    Command Guide of WGSW-48040HP 4.1.13 clear ip dhcp server binding expired Command: clear ip dhcp server binding expired Default: Usage Guide: To clear the DHCP expired bindings for free. Example: To clear the Switch’s DHCP expired bindings for free. Switch# clear ip dhcp server binding expired 4.1.14 clear ip dhcp server binding manual...

  • Page 32: Clear Ip Igmp Snooping Vlan

    Command Guide of WGSW-48040HP Default: Usage Guide: To clear the IGMP snooping statistics. Example: To clear the Switch’s IGMP snooping statistics. Switch# clear ip igmp snooping statistics 4.1.16 clear ip igmp snooping vlan Command: clear ip igmp snooping vlan < vlan_list> statistics <vlan_list>...

  • Page 33: Clear Ip Statistics Icmp Interface Vlan

    Command Guide of WGSW-48040HP Example: To clear the Switch’s IPv4 ICMP traffic for designated message type 0. Switch# clear ip statistics icmp icmp-msg 0 4.1.18 clear ip statistics icmp interface vlan Command: clear ip statistics icmp interface vlan <vlan_list> <vlan_list>...

  • Page 34: Clear Ip Statistics System Icmp Interface Vlan

    Command Guide of WGSW-48040HP 4.1.20 clear ip statistics system icmp interface vlan Command: clear ip statistics system icmp interface vlan <vlan_list> VLAN identifier(s): VID Default: Usage Guide: To clear the IPv4 ICMP interface statistics for specific VLAN. Example: To clear the Switch’s IPv4 ICMP interface statistics for specific VLAN 1.

  • Page 35: Clear Ipv6 Neighbors

    Command Guide of WGSW-48040HP <vlan_list> VLAN identifier(s): VID Default: Usage Guide: To clear the ipv6 mld snooping statistics for specific VLAN. Example: To clear the Switch’s ipv6 mld snooping statistics for specific VLAN 1. Switch# clear ipv6 mld snooping vlan 1 statistics 4.1.23 clear ipv6 neighbors...

  • Page 36: Clear Ipv6 Statistics Icmp Interface Vlan

    Command Guide of WGSW-48040HP Example: To clear the Switch’s IPv6 ICMP traffic for designated message type 0. Switch# clear ipv6 statistics icmp icmp-msg 0 4.1.25 clear ipv6 statistics icmp interface vlan Command: clear ipv6 statistics icmp interface vlan <vlan_list> <vlan_list>...

  • Page 37: Clear Ipv6 Statistics System Icmp Interface Vlan

    Command Guide of WGSW-48040HP 4.1.27 clear ipv6 statistics system icmp interface vlan Command: clear ipv6 statistics system icmp interface vlan <vlan_list> VLAN identifier(s): VID Default: Usage Guide: To clear the IPv6 ICMP interface statistics for specific VLAN. Example: To clear the Switch’s IPv6 ICMP interface statistics for specific VLAN 1.

  • Page 38: Clear Logging Error Info

    Command Guide of WGSW-48040HP Usage Guide: To clear the lldp statistics. Example: To clear the Switch’s lldp statistics. Switch# clear lldp statistics 4.1.30 clear logging error info Command: clear logging error info Default: Usage Guide: To clear the logging error info.

  • Page 39: Clear Logging Info Error

    Command Guide of WGSW-48040HP 4.1.32 clear logging info error Command: clear logging info error Default: Usage Guide: To clear the logging info error. Example: To clear the Switch’s logging info error. Switch# clear logging info error 4.1.33 clear logging info warning...

  • Page 40: Clear Logging Warning Info

    Command Guide of WGSW-48040HP Default: Usage Guide: To clear the logging warning error. Example: To clear the Switch’s logging warning error. Switch# clear logging warning error 4.1.35 clear logging warning info Command: clear logging warning info Default: Usage Guide: To clear the logging warning info.

  • Page 41: Clear Mvr Name

    Command Guide of WGSW-48040HP Switch# clear mac address-table 4.1.37 clear mvr name Command: clear mvr name <MvrName : word16> <MvrName : word16> MVR multicast VLAN name Default: Usage Guide: To clear the mvr name profiles. 4.1.38 clear mvr statistics Command:...

  • Page 42: Clear Spanning-Tree Detected-Protocols Interface

    Command Guide of WGSW-48040HP Default: Usage Guide: To clear the mvr vlan statistics for specific VLAN. Example: To clear the Switch’s mvr vlan statistics for specific VLAN 1. Switch# clear mvr vlan 1 statistics 4.1.40 clear spanning-tree detected-protocols interface *...

  • Page 43: Clear Spanning-Tree Detected-Protocols Interface Gigabitethernet

    Command Guide of WGSW-48040HP Switch# clear spanning-tree detected-protocols interface * 4.1.42 clear spanning-tree detected-protocols interface GigabitEthernet Command: clear spanning-tree detected-protocols interface GigabitEthernet <PORT_LIST> <PORT_LIST> Port list in X/X-XX Default: Usage Guide: To clear the spanning-tree detected-protocols for specific GigabitEthernet port.

  • Page 44: Clear Spanning-Tree Statistics Interface Gigabitethernet

    Command Guide of WGSW-48040HP 4.1.44 clear spanning-tree statistics interface GigabitEthernet Command: clear spanning-tree statistics interface GigabitEthernet <PORT_LIST> <PORT_LIST> Port list in X/X-XX Default: Usage Guide: To clear the spanning-tree statistics for specific GigabitEthernet port. Example: To clear the Switch’s spanning-tree statistics for specific GigabitEthernet 1/1.

  • Page 45: Configure Terminal

    Command Guide of WGSW-48040HP Default: Usage Guide: To clear the statistics for specific GigabitEthernet port. Example: To clear the Switch’s statistics for specific GigabitEthernet 1/1. Switch# clear statistics GigabitEthernet 1/1 4.2 configure terminal 4.2.1 aaa authentication login console local Command:...

  • Page 46: Aaa Authentication Login Console Tacacs

    Command Guide of WGSW-48040HP Example: To authenticate the local and radius account via console. Switch# configure terminal Switch (config)# aaa authentication login console local radius 4.2.3 aaa authentication login console tacacs Command: aaa authentication login console tacacs Default: console : local Usage Guide: To authenticate the tacacs account via console only.

  • Page 47: Aaa Authentication Login Http Radius

    Command Guide of WGSW-48040HP 4.2.5 aaa authentication login http radius Command: aaa authentication login http radius Default: http : local Usage Guide: To authenticate the radius account via http only. Example: To authenticate the local and radius account via http.

  • Page 48: Aaa Authentication Login Ssh Radius

    Command Guide of WGSW-48040HP aaa authentication login ssh local Default: ssh : local Usage Guide: To authenticate the local account via ssh only. Example: To authenticate the local account via ssh. Switch# configure terminal Switch (config)# aaa authentication login ssh local 4.2.8 aaa authentication login ssh radius...

  • Page 49: Aaa Authentication Login Telnet Local

    Command Guide of WGSW-48040HP Usage Guide: To authenticate the tacacs account via ssh only. Example: To authenticate the local and radius and tacacs account via console. Switch# configure terminal Switch (config)# aaa authentication login ssh local radius tacacs 4.2.10 aaa authentication login telnet local...

  • Page 50: Aaa Authentication Login Telnet Tacacs

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# aaa authentication login telnet local radius 4.2.12 aaa authentication login telnet tacacs Command: aaa authentication login telnet tacacs Default: telnet : local Usage Guide: To authenticate the tacacs account via telnet only.

  • Page 51: Access-List Ace

    Command Guide of WGSW-48040HP To enable the access management profile to allow SNMP / Telnet / HTTP services. Example: To create a Profile 1 enabling all services for VLAN 1 (IPv6 address 2001::7788) . Switch# configure terminal Switch (config)# access management 1 1 2001::7788 all 4.2.14 access-list ace...

  • Page 52: Access-List Ace Update

    Command Guide of WGSW-48040HP Usage Guide: To create and set up a profile for the access list. Example: To set a Profile 1 up (action: permit, dmac-type: unicast, frametype: ipv4-icmp, ingress: any, logging: disable, policy: 1, rate-limiter: 1, tag-priority: 1. vid: 1).

  • Page 53: Access-List Rate-Limiter

    Command Guide of WGSW-48040HP tag-priority Tag priority VID field Default: Usage Guide: To update the specific profile for the access list. Example: Original: Profile 1 (action: permit, dmac-type: unicast, frametype: ipv4-icmp, ingress: any, logging: disable, policy: 1, rate-limiter: 1, tag-priority: 1. vid: 1).

  • Page 54: Aggregation Mode

    Command Guide of WGSW-48040HP Command: access-list rate-limiter pps <PpsRate : 0-131071> <PpsRate : 0-131071> Rate value Default: Usage Guide: To set pps rate for all rate-limiter ID. Example: To set pps rate(10000 pps) for all rate-limiter ID. Switch# configure terminal Switch (config)# access-list rate-limiter pps 100 4.2.18 aggregation mode...

  • Page 55: Banner

    Command Guide of WGSW-48040HP 4.2.19 banner Command: banner <LINE> <LINE> c banner-text c, where 'c' is a delimiting character Default: Usage Guide: To configure banner-text. Example: To configure banner-text with word “ddddd”. Switch# configure terminal Switch (config)# banner 1 Enter TEXT message. End with the character '1'.

  • Page 56: Banner Login

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# banner exec 1 Enter TEXT message. End with the character '1'. gggggg Telnet 192.168.0.100: Username: admin Password: gggggg 4.2.21 banner login Command: banner login <LINE> <LINE> c banner-text c, where 'c' is a delimiting character...

  • Page 57: Banner Motd

    Command Guide of WGSW-48040HP Username: admin Password: 4.2.22 banner motd Command: banner motd <LINE> <LINE> c banner-text c, where 'c' is a delimiting character Default: Usage Guide: To configure motd banner-text. Example: To configure motd banner-text with word “ffffff”. Switch# configure terminal Switch (config)# banner motd 1 Enter TEXT message.

  • Page 58: Clock Timezone

    Command Guide of WGSW-48040HP clock summer-time <WORD> date <Monthstart: 1-12> <Daystart: 1-31> <Yearstart: 1-12> <Timestart: hh:mm > <Monthend: 1-12> <Dayend: 1-31> <Yearend: 1-12> <Timeend: hh:mm > <Offset minutes: 1-1440 > Default: Usage Guide: To set daylight saving. Example: To set daylight saving (Started time: Feb, 3. 2013 8:8AM, End time: Dec, 31. 2013 8:8AM, Offset time: 60 minutes).

  • Page 59: Dot1X Authentication Timer Inactivity

    Command Guide of WGSW-48040HP Default: Usage Guide: To default the Rate limiter. Example: To default the Rate limiter ID 1. Switch# configure terminal Switch (config)# default access-list rate-limiter 1 4.2.26 dot1x authentication timer inactivity Command: dot1x authentication timer inactivity <10-1000000>...

  • Page 60: Dot1X Feature

    Command Guide of WGSW-48040HP Example: To set the Re-authenticated Period (777 seconds). Switch# configure terminal Switch (config)# dot1x authentication timer re-authenticate 777 4.2.28 dot1x feature Command: dot1x feature guest-vlan | radius-qos | radius-vlan Default: Disable Usage Guide: To enable the guest-vlan, radius-qos, radius-vlan for Network Access Server Example: To enable the guest-vlan, radius-qos, radius-vlan for Network Access Server.

  • Page 61: Dot1X Guest-Vlan Supplicant

    Command Guide of WGSW-48040HP Switch (config)# dot1x guest-vlan 2 4.2.30 dot1x guest-vlan supplicant Command: dot1x guest-vlan supplicant supplicant The switch remembers if an EAPOL frame has been received on the port for the life-time of the port. Once the switch considers whether to enter the Guest VLAN, it will first check if this option is enabled or disabled.

  • Page 62: Dot1X System-Auth-Control

    Command Guide of WGSW-48040HP 4.2.32 dot1x system-auth-control Command: dot1x system-auth-control Default: Disable Usage Guide: To enable 802.1X service for Network Access Server Example: To enable 802.1X service for Network Access Server Switch# configure terminal Switch (config)# dot1x system-auth-control 4.2.33 dot1x timeout quiet-period Command: dot1x timeout quiet-period <10-1000000>...

  • Page 63: Enable Password

    Command Guide of WGSW-48040HP Default: Usage Guide: To configure 802.1X EPOAL timeout for Network Access Server Example: To configure 802.1X EPOAL timeout (45 seconds) for Network Access Server Switch# configure terminal Switch (config)# dot1x timeout tx-period 45 4.2.35 enable password Command: enable password <WORD>...

  • Page 64: Enable Secret

    Command Guide of WGSW-48040HP Command: enable password level <1-15> <WORD> <1-15> Level number <WORD> The UNENCRYPTED (cleartext) password. Default: Disable Usage Guide: To configure enable password and specific level for user Example: To configure enable password(admin) and specific level(15) for user...

  • Page 65: End

    Command Guide of WGSW-48040HP To configure enable password(cisco) to encrypted secret in the system configurations and specific level(15) for user Switch# configure terminal Switch (config)# enable secret 0 level 15 cisco # show running-config Building configuration... enable secret 5 level 15 FC89368B9513DE0760290BCE9A1DA90A ……………...

  • Page 66: Gvrp

    Command Guide of WGSW-48040HP Command: exit Default: Usage Guide: To exit configure terminal mode. Example: To exit configure terminal mode. Switch# configure terminal Switch (config)# exit 4.2.40 gvrp Command: gvrp Default: Disable Usage Guide: To enable GVRP. Example: To enable GVRP.

  • Page 67: Gvrp Time

    Command Guide of WGSW-48040HP Usage Guide: To configure how many VLANs will be in GVRP. Example: To configure 200 VLANs in GVRP. Switch# configure terminal Switch (config)# gvrp max-vlans 200 4.2.42 gvrp time Command: gvrp time join-time <Jointime : 1-20> leave-all-time <Leavealltime : 1000-5000>...

  • Page 68: Help

    Command Guide of WGSW-48040HP 4.2.43 help Command: help Default: Usage Guide: To explain how to use commands. Example: To explain how to use commands. Switch# configure terminal Switch (config)# help Help may be requested at any point in a command by entering a question mark '?'.

  • Page 69: Interface * | Gigabitethernet

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# hostname planetbestswitch planetbestswitch(config)# 4.2.45 interface * | GigabitEthernet Command: interface * | GigabitEthernet <port_type_list> All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port Default: Usage Guide: To enter the interface mode.

  • Page 70: Access-List Action Deny

    Command Guide of WGSW-48040HP Switch (config)# interface GigabitEthernet X/X Switch (config-if) # access-list action permit 4.2.45.2 access-list action deny Command: access-list action deny action Access list action Default: Deny Usage Guide: To configure Deny for the ACL action. Example: To configure Deny ACL action for the GigabitEthernet X/X.

  • Page 71: Access-List Policy

    Command Guide of WGSW-48040HP Switch (config)# interface GigabitEthernet X/X Switch (config-if) # access-list logging 4.2.45.4 access-list policy Command: access-list policy <PolicyId : 0-255> policy Policy <PolicyId : 0-255> Policy ID Default: Policy ID: 0 Usage Guide: To configure Policy ID for the ACL.

  • Page 72: Access-List Rate-Limiter

    Command Guide of WGSW-48040HP Switch (config)# interface GigabitEthernet X/X Switch (config-if) # access-list port-state 4.2.45.6 access-list rate-limiter Command: access-list rate-limiter <RateLimiterId : 1-16> rate-limiter Rate limiter <RateLimiterId : 1-16> Rate limiter ID Default: Disable Usage Guide: To apply Rate Limiter ID for the ACL.

  • Page 73: Access-List Shutdown

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # access-list redirect interface GigabitEthernet 1/2 4.2.45.8 access-list shutdown Command: access-list shutdown shutdown Shut down incoming port. The shutdown feature only works when the packet length is less than 1518 (without VLAN tags).

  • Page 74: Description

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # aggregation group 7 4.2.45.10 description Command: description <string> description Port description <string> specifies a comment or a description of the port to assist the user. (Length: 1-12 characters)

  • Page 75: Dot1X Guest-Vlan

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # do show aaa console : local telnet : local : local http : local 4.2.45.12 dot1x guest-vlan Command: dot1x guest-vlan dot1x IEEE Standard for port-based Network Access Control...

  • Page 76: Dot1X Radius-Qos

    Command Guide of WGSW-48040HP force-unauthorized Port access is not allowed mac-based Switch authenticates on behalf of the client multi Multiple Host 802.1X Authentication single Single Host 802.1X Authentication Default: Force-authorized Usage Guide: To configure Port-control mode for 802.1X Example: To configure Port-Based 802.1X(Auto) mode for GigabitEthernet X/X.

  • Page 77: Dot1X Radius-Vlan

    Command Guide of WGSW-48040HP 4.2.45.15 dot1x radius-vlan Command: dot1x radius-vlan dot1x IEEE Standard for port-based Network Access Control radius-vlan Enables/disables per-port state of RADIUS-assigned VLAN. Default: Disable Usage Guide: To enable RADIUS-assigned VLAN for 802.1X Example: To enable RADIUS-assigned VLAN for GigabitEthernet X/X.

  • Page 78: Duplex

    Command Guide of WGSW-48040HP 4.2.45.17 duplex Command: duplex auto | full | half duplex Interface duplex auto Auto negotiation of duplex mode. full Forced full duplex. half Forced half duplex. Default: Auto Usage Guide: To configure duplex mode for interface.

  • Page 79: Excessive-Restart

    Command Guide of WGSW-48040HP 4.2.45.19 excessive-restart Command: excessive-restart excessive-restart Restart backoff algorithm after 16 collisions (No excessive-restart means discard frame after 16 collisions) Default: Discard Usage Guide: To enable Backoff Algorithm for the specific interface Example: To enable Backoff Algorithm for the GigabitEthernet X/X.

  • Page 80: Flowcontrol

    Command Guide of WGSW-48040HP 4.2.45.21 flowcontrol Command: flowcontrol off | on flowcontrol Traffic flow control. Disable flow control. Enable flow control. Default: Disable Usage Guide: To enable Flow-control for specific interface Example: To enable Flow-control for GigabitEthernet X/X Switch# configure terminal...

  • Page 81: Green-Ethernet Short-Reach

    Command Guide of WGSW-48040HP 4.2.45.23 green-ethernet short-reach Command: green-ethernet short-reach green-ethernet Green ethernet (Power reduction) short-reach Enable power saving for ports which is connect to link partner with short cable. Default: Usage Guide: To enable power saving for ports with short cable...

  • Page 82: Gvrp Leave-Request Vlan

    Command Guide of WGSW-48040HP 4.2.45.25 gvrp leave-request vlan Command: gvrp leave-request vlan <vlan_list> gvrp Enable GVRP on port(s) leave-request Emit a Leave-Request for test purpose Default: Usage Guide: To send GVRP Leave-Request to specific interface Example: To send GVRP Leave-Request(VLAN 1) to GigabitEthernet X/X...

  • Page 83: Ip Arp Inspection Logging

    Command Guide of WGSW-48040HP 4.2.45.27 ip arp inspection logging Command: ip arp inspection logging all | deny | permit Address Resolution Protocol inspection ARP inspection logging ARP inspection logging mode config log all entries deny log denied entries permit log permitted entries...

  • Page 84: Ip Dhcp Snooping Trust

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ip arp inspection trust 4.2.45.29 ip dhcp snooping trust Command: ip dhcp snooping trust Default: Trusted Usage Guide: To configure Trusted into DHCP Snooping for specific interface...

  • Page 85: Ip Igmp Snooping Immediate-Leave

    Command Guide of WGSW-48040HP Switch (config-if) # ip igmp snooping filter 1 4.2.45.31 ip igmp snooping immediate-leave Command: ip igmp snooping immediate-leave Default: Disabled Usage Guide: To enable IGMP Snooping Immediate-leave (Fast Leave) for specific interface Example: To enable IGMP Snooping Immediate-leave (Fast Leave) for GigabitEthernet X/X...

  • Page 86: Ip Igmp Snooping Mrouter

    Command Guide of WGSW-48040HP 4.2.45.33 ip igmp snooping mrouter Command: ip igmp snooping mrouter [ automatic | fix | none ] mrouter Multicast router port configuration automatic auto mode fix mode none none mode Default: Auto Usage Guide: To configure Multicast router port mode for specific interface...

  • Page 87: Ip Verify Source Limit

    Command Guide of WGSW-48040HP 4.2.45.35 ip verify source limit Command: ip verify source limit <0-2> <0-2> the number of limit Default: Unlimited Usage Guide: To limit numbers of Dynamic Client for specific interface Example: To limit 2 numbers of Dynamic Client for GigabitEthernet X/X...

  • Page 88: Ipv6 Mld Snooping Immediate-Leave

    Command Guide of WGSW-48040HP 4.2.45.37 ipv6 mld snooping immediate-leave Command: ipv6 mld snooping immediate-leave Default: Disabled Usage Guide: To enable MLD Snooping Immediate-leave (Fast Leave) for specific interface Example: To enable MLD Snooping Immediate-leave (Fast Leave) for GigabitEthernet X/X Switch# configure terminal...

  • Page 89: Lacp

    Command Guide of WGSW-48040HP Command: ipv6 mld snooping mrouter [ automatic | fix | none] mrouter Multicast router port configuration automatic auto mode fix mode none none mode Default: Auto Usage Guide: To configure MLD router port mode for specific interface...

  • Page 90: Lacp Key

    Command Guide of WGSW-48040HP 4.2.45.41 lacp key Command: lacp key <1-65535> | auto lacp Enable LACP on this interface Key of the LACP aggregation <1-65535> Key value auto Choose a key based on port speed Default: Auto Usage Guide: To configure LACP key for specific interface...

  • Page 91: Lacp Role

    Command Guide of WGSW-48040HP Switch (config-if) # lacp port-priority 555 4.2.45.43 lacp role Command: lacp role active | passive lacp Enable LACP on this interface role Active / Passive (speak if spoken to) role active Transmit LACP BPDUs continously passive...

  • Page 92: Lldp Cdp-Aware

    Command Guide of WGSW-48040HP To enable LACP timeout type (slow) for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # lacp timeout slow 4.2.45.45 lldp cdp-aware Command: lldp cdp-aware lldp LLDP configurations cdp-aware Configures if the interface shall be CDP aware (CDP discovery information is added to the LLDP neighbor...

  • Page 93: Lldp Med Transmit-Tlv

    Command Guide of WGSW-48040HP Usage Guide: To apply MED Media-VLAN policy of LLDP for specific interface Example: To apply MED Media-VLAN policy 2 of LLDPfor GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # lldp med media-vlan policy-list 2 4.2.45.47 lldp med transmit-tlv...

  • Page 94: Lldp Tlv-Select Management-Address

    Command Guide of WGSW-48040HP lldp LLDP configurations receive Enable/Disable decoding of received LLDP frames. Default: Both (Tx +Rx) Usage Guide: To configure LLDP Rx only mode for specific interface Example: To configure LLDP Rx only mode for GigabitEthernet X/X Switch# configure terminal...

  • Page 95: Lldp Tlv-Select System-Capabilities

    Command Guide of WGSW-48040HP lldp tlv-select port-description lldp LLDP configurations tlv-select To transmit which optional TLVs. port-description Enable/Disable transmission of port description. Default: Enabled Usage Guide: To enable port-description of LLDP TLV for specific interface Example: To enable port-description of LLDP TLV for GigabitEthernet X/X...

  • Page 96: Lldp Tlv-Select System-Name

    Command Guide of WGSW-48040HP lldp tlv-select system-description lldp LLDP configurations tlv-select To transmit which optional TLVs. system-description Enable/Disable transmission of system description. Default: Enabled Usage Guide: To enable system-description of LLDP TLV for specific interface Example: To enable system-description of LLDP TLV for GigabitEthernet X/X...

  • Page 97: Loop-Protect

    Command Guide of WGSW-48040HP Command: lldp transmit lldp LLDP configurations transmit Enable/Disabled transmision of LLDP frames. Default: Both (Tx +Rx) Usage Guide: To configure LLDP Tx only mode for specific interface Example: To configure LLDP Tx only mode for GigabitEthernet X/X...

  • Page 98: Loop-Protect Tx-Mode

    Command Guide of WGSW-48040HP loop-protect action [log] [shutdown] loop-protect Loop protection configuration action Action if loop detected Generate log shutdown Shutdown port Default: Shutdown Usage Guide: To configure action mode of Loop protection for specific interface Example: To configure action mode (log and shutdown) of Loop protection for GigabitEthernet X/X...

  • Page 99: Mac Address-Table Learning

    Command Guide of WGSW-48040HP Command: loop-protect tx-mode loop-protect Loop protection configuration tx-mode Actively generate PDUs Default: Enabled Usage Guide: To enable tx-mode of Loop protection for specific interface Example: To enable tx-mode of Loop protection for GigabitEthernet X/X Switch# configure terminal...

  • Page 100: Media-Type

    Command Guide of WGSW-48040HP 4.2.45.60 media-type Command: media-type dual | rj45 | sfp media-type Media type. dual Dual media interface (copper & fiber interface). rj45 rj45 interface (copper interface). sfp interface (fiber interface). Default: Usage Guide: To configure Copper or Fiber mode of media type for specific interface...

  • Page 101: Mvr Immediate-Leave

    Command Guide of WGSW-48040HP 4.2.45.62 mvr immediate-leave Command: mvr immediate-leave Multicast VLAN Registration configuration immediate-leave Immediate leave configuration Default: Disabled Usage Guide: To enable Immediate-leave of MVR for specific interface Example: To enable Immediate-leave of MVR for GigabitEthernet X/X Switch# configure terminal...

  • Page 102: Mvr Vlan

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # mvr name 111 type source 4.2.45.64 mvr vlan Command: mvr vlan <v_vlan_list> type [source | receiver ] Multicast VLAN Registration configuration vlan MVR multicast vlan <vlan_list>...

  • Page 103: Ping Ip

    Command Guide of WGSW-48040HP Usage Guide: To enable SSM of SyncE for specific interface Example: To enable SSM of SyncE for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # network-clock synchronization ssm 4.2.45.66 no Command:...

  • Page 104: Poe Mode

    Command Guide of WGSW-48040HP Default: Usage Guide: To run Ping function for specific interface Example: To run Ping function (IP address: 10.10.10.10 with size 88 bytes) for GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # ping ip 10.10.10.10 size 88 4.2.45.68 poe mode...

  • Page 105: Poe Pdcheck Action

    Command Guide of WGSW-48040HP pdcheck Allows user to enable or disable per port PD Alive Check function. To set PoE device IP address here for system making ping to the PoE device. <ipv4_addr> <ipv4_addr> Default: Usage Guide: To configure Ping PD IP Address of PoE for specific interface Example: To configure Ping PD IP Address (10.101.10.10) of PoE for GigabitEthernet X/X.

  • Page 106: Poe Pdcheck Enable

    Command Guide of WGSW-48040HP 4.2.45.71 poe pdcheck enable Command: poe pdcheck enable Power Over Ethernet. pdcheck Allows user to enable or disable per port PD Alive Check function. enable PD alive check enable. Default: Disabled Usage Guide: To enable PD Ping Alive Check function of PoE for specific interface.

  • Page 107: Poe Pdcheck Reboot-Time

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # poe pdcheck interval 100 4.2.45.73 poe pdcheck reboot-time Command: poe pdcheck reboot-time <30-180> Power Over Ethernet. pdcheck Allows user to enable or disable per port PD Alive Check function.

  • Page 108: Poe Power Limit

    Command Guide of WGSW-48040HP To configure PD Ping Alive Check retry count of PoE for specific interface. Example: To configure PD Ping Alive Check retry count (5) of PoE for GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # poe pdcheck retry-count 5 4.2.45.75 poe power limit...

  • Page 109: Poe Time-Range

    Command Guide of WGSW-48040HP Set priority to low. Default: Usage Guide: To configure interface priority of PoE for specific interface. Example: To configure interface priority (low) of PoE for GigabitEthernet X/X. Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # poe priority low 4.2.45.77 poe time-range...

  • Page 110: Port-Security Maximum

    Command Guide of WGSW-48040HP Command: port-security port-security Enable/disable port security per interface. Default: Disabled Usage Guide: To enable Port-security for specific interface Example: To enable Port-security for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # port-security 4.2.45.79 port-security maximum...

  • Page 111: Port-Security Violation

    Command Guide of WGSW-48040HP 4.2.45.80 port-security violation Command: port-security violation [protect | shutdown | trap | trap-shutdown] port-security Enable/disable port security per interface. violation The action involved with exceeding the limit. protect Don't do anything shutdown Shut down the port...

  • Page 112: Pvlan

    Command Guide of WGSW-48040HP To configure protected mode (trap-shutdown) of Port-security for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # port-security violation trap-shutdown 4.2.45.82 pvlan Command: pvlan <range_list> pvlan Private VLAN <range_list> list of PVLANs. Range is from 1 to number of ports.

  • Page 113: Qos Cos

    Command Guide of WGSW-48040HP To enable PVLAN isolation for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # pvlan isolation 4.2.45.84 qos cos Command: qos cos <Cos : 0-7> Quality of Service Class of service configuration <Cos : 0-7>...

  • Page 114: Qos Dpl

    Command Guide of WGSW-48040HP Usage Guide: To configure DEI of QoS for specific interface Example: To configure DEI (1) of QoS for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos dei 1 4.2.45.86 qos dpl Command: qos dpl <Dei : 0-1>...

  • Page 115: Qos Dscp-Remark

    Command Guide of WGSW-48040HP zero Classify to new DSCP if DSCP is 0 Default: Disabled Usage Guide: To configure DSCP Classify of QoS for specific interface Example: To configure DSCP Classify (Any) of QoS for GigabitEthernet X/X Switch# configure terminal...

  • Page 116: Qos Map Cos-Tag

    Command Guide of WGSW-48040HP qos dscp-translate Quality of Service dscp-translate DSCP ingress translation Default: Disabled Usage Guide: To configure DSCP ingress translation of QoS for specific interface Example: To configure DSCP ingress translation of QoS for GigabitEthernet X/X Switch# configure terminal...

  • Page 117: Qos Map Tag-Cos

    Command Guide of WGSW-48040HP To configure (QoS class, DP level) to (PCP, DEI) Mapping of QoS as below table for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos map cos-tag cos 1 dpl 1 pcp 6 dei 0 4.2.45.91 qos map tag-cos...

  • Page 118: Qos Pcp

    Command Guide of WGSW-48040HP 4.2.45.92 qos pcp Command: qos pcp <Pcp : 0-7> Quality of Service Priority Code Point configuration <Pcp : 0-7> Specific Priority Code Point Default: Usage Guide: To configure PCP of QoS for specific interface Example: To configure PCP (6) of QoS for GigabitEthernet X/X...

  • Page 119: Qos Queue-Policer Queue

    Command Guide of WGSW-48040HP 4.2.45.94 qos queue-policer queue Command: qos queue-policer queue <Queue : 0~7> <Rate : 100-13200000> Quality of Service queue-policer Queue policer configuration queue Specify queue <Queue : 0~7> Specific queue or range <Rate : 100-13200000> Policer rate in kbps...

  • Page 120: Qos Shaper

    Command Guide of WGSW-48040HP Example: To configure Egress Queue (4) Shapers Rate (9999 Kbps) of QoS for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos queue-shaper queue 4 9999 4.2.45.96 qos shaper Command: qos shaper <Rate : 100-13200000>...

  • Page 121: Qos Storm Unicast

    Command Guide of WGSW-48040HP Default: Usage Guide: To configure Broadcast Frames Storm Control Rate of QoS for specific interface Example: To configure Broadcast Frames Storm Control Rate (999 fps) of QoS for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos storm broadcast 999 fps 4.2.45.98 qos storm unicast...

  • Page 122: Qos Tag-Remark

    Command Guide of WGSW-48040HP qos storm unknown <Rate : 100-13200000> [fps] Quality of Service storm Storm policer unknown Police unknown (flooded) frames <Rate : 100-13200000> Policer rate (default kbps) Rate is fps Default: Usage Guide: To configure Unknown Frames Storm Control Rate of QoS for specific interface...

  • Page 123: Qos Tag-Remark Mapped

    Command Guide of WGSW-48040HP Switch (config-if) # qos tag-remark pcp 1 dei 1 4.2.45.101 qos tag-remark mapped Command: qos tag-remark mapped Quality of Service tag-remark Tag remarking configuration mapped Used mapped values (cos,dpl -> pcp,dei) Default: Classified Usage Guide: To enable Tag-remark mapped mode of QoS for specific interface...

  • Page 124: Qos Trust Tag

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # qos trust dscp 4.2.45.103 qos trust tag Command: qos trust tag Quality of Service trust Trust configuration VLAN tag Default: Disabled Usage Guide: To enable VLAN tag Classification of QoS for specific interface...

  • Page 125: Rmon Collection Stats

    Command Guide of WGSW-48040HP To configure RMON History Configuration for specific interface Example: To configure RMON History Configuration as below table for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # rmon collection history 1 buckets 5 interval 3 4.2.45.105 rmon collection stats...

  • Page 126: Shutdown

    Command Guide of WGSW-48040HP 4.2.45.106 shutdown Command: shutdown shutdown Shutdown of the interface. Default: No shutdown Usage Guide: To shut down specific interface Example: To shut down GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # shutdown 4.2.45.107 spanning-tree...

  • Page 127: Spanning-Tree Bpdu-Guard

    Command Guide of WGSW-48040HP Command: spanning-tree auto-edge spanning-tree Spanning Tree protocol auto-edge Auto detects edge status Default: Enabled Usage Guide: To enable Auto Edge of CIST Normal Port Configuration for specific interface Example: To enable Auto Edge of CIST Normal Port Configuration for GigabitEthernet X/X...

  • Page 128: Spanning-Tree Link-Type

    Command Guide of WGSW-48040HP Command: spanning-tree edge spanning-tree Spanning Tree protocol edge Edge port Default: Non-Edge Usage Guide: To enable edge port of CIST Normal Port Configuration for specific interface Example: To enable edge port of CIST Normal Port Configuration for GigabitEthernet X/X...

  • Page 129: Spanning-Tree Mst Cost

    Command Guide of WGSW-48040HP 4.2.45.112 spanning-tree mst <Instance : 0-7> cost Command: spanning-tree mst <Instance : 0-7> cost <Cost : 1-200000000> | auto spanning-tree Spanning Tree protocol STP bridge instance <Instance : 0-7> instance 0-7 (CIST=0, MST2=1...) cost STP Cost of this port <Cost : 1-200000000>...

  • Page 130: Spanning-Tree Restricted-Role

    Command Guide of WGSW-48040HP To enable Path Cost (32) of CIST / MST Normal Port Configuration (CIST) for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # spanning-tree mst 0 port-priority 32 4.2.45.114 spanning-tree restricted-role Command:...

  • Page 131: Speed

    Command Guide of WGSW-48040HP To enable Restrict topology change notifications of CIST Normal Port Configuration for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # spanning-tree restricted-tcn 4.2.45.116 speed Command: speed [10 | 100 | 1000 | 10g | auto] speed Configures interface speed.

  • Page 132: Switchport Forbidden Vlan Add

    Command Guide of WGSW-48040HP <vlan_id> VLAN ID of the VLAN when this port is in access mode Default: Usage Guide: To configure access VLAN ID for specific interface Example: To configure access VLAN ID (5) for GigabitEthernet X/X Switch# configure terminal...

  • Page 133: Switchport Forbidden Vlan Remove

    Command Guide of WGSW-48040HP 4.2.45.119 switchport forbidden vlan remove Command: switchport forbidden vlan remove <vlan_list> switchport Switching mode characteristics forbidden Adds or removes forbidden VLANs from the current list of forbidden VLANs vlan Add or modify VLAN entry in forbidden table.

  • Page 134: Switchport Hybrid Allowed Vlan

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport hybrid acceptable-frame-type tagged 4.2.45.121 switchport hybrid allowed vlan Command: switchport hybrid allowed vlan [all | none | add <vlan_list> | remove <vlan_list> | except <vlan_list>]...

  • Page 135: Switchport Hybrid Ingress-Filtering

    Command Guide of WGSW-48040HP hybrid Change PVID for hybrid port egress-tag Egress VLAN tagging configuration Tag all frames none No egress tagging except-native Tag all frames except frames classified to native VLAN of the hybrid port Default: Untagged Port VLAN...

  • Page 136: Switchport Hybrid Native Vlan

    Command Guide of WGSW-48040HP 4.2.45.124 switchport hybrid native vlan Command: switchport hybrid native vlan <vlan_id> switchport Switching mode characteristics hybrid Change PVID for hybrid port native Set native VLAN vlan Set native VLAN when interface is in hybrid mode <vlan_id>...

  • Page 137: Switchport Mode

    Command Guide of WGSW-48040HP To enable Port type (Unaware) in Hybrid VLAN mode for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport hybrid port-type unaware 4.2.45.126 switchport mode Command: switchport mode c-port | s-custom-port | s-port | unaware...

  • Page 138: Switchport Vlan Mac

    Command Guide of WGSW-48040HP id keyword <1-128> Unique VCE ID for each VCL entry (1-128) <ipv4_subnet> Source IP address and mask (Format: xx.xx.xx.xx/mm.mm.mm.mm). vlan vlan keyword <vlan_id> VLAN ID required for the group to VLAN mapping (Range: 1-4095) Default: None...

  • Page 139: Switchport Vlan Mapping

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport vlan mac 00:55:44:33:22:11 vlan 5 4.2.45.129 switchport vlan mapping Command: switchport vlan mapping <group id : 1-29> switchport Switching mode characteristics vlan VLAN commands mapping Maps an interface to a VLAN translation group.

  • Page 140: Switchport Voice Vlan Discovery-Protocol

    Command Guide of WGSW-48040HP <word16> Group Name (Range: 1 - 16 characters) vlan vlan keyword <vlan_id> VLAN ID required for the group to VLAN mapping (Range: 1-4095) Default: None Usage Guide: To configure VLAN protocol group for specific interface Example:...

  • Page 141: Switchport Voice Vlan Mode

    Command Guide of WGSW-48040HP Switch (config-if) # switchport voice vlan discovery-protocol lldp 4.2.45.132 switchport voice vlan mode Command: switchport voice vlan mode auto | disable | force switchport Switching mode characteristics voice Voice appliance attributes vlan Vlan for voice traffic...

  • Page 142: Interface Vlan

    Command Guide of WGSW-48040HP Disabled Usage Guide: To enable Voice VLAN security for specific interface Example: To enable Voice VLAN security for GigabitEthernet X/X Switch# configure terminal Switch (config)# interface GigabitEthernet X/X Switch (config-if) # switchport voice vlan security 4.2.46 interface vlan Command: interface vlan <vlan_list>...

  • Page 143: End

    Command Guide of WGSW-48040HP Usage Guide: To run exec commands in configure terminal mode Example: To run “show aaa” in configure terminal mode. Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# do show aaa console : local telnet : local...

  • Page 144: Ip Address

    Command Guide of WGSW-48040HP Default: None Usage Guide: To exit current mode Example: To exit current mode. Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# exit Switch (config)# 4.2.46.4 ip address Command: ip address <ipv4_addr> <ipv4_netmask> Interface Internet Protocol config commands...

  • Page 145: Ip Address Dhcp

    Command Guide of WGSW-48040HP 4.2.46.5 ip address dhcp Command: ip address dhcp Interface Internet Protocol config commands address Address configuraton dhcp Enable DHCP Default: None Usage Guide: To configure IP address mode for specific VLAN Example: To configure IP address mode (DHCP) for VLAN X...

  • Page 146: Ip Dhcp Server

    Command Guide of WGSW-48040HP Switch (config)# interface vlan X Switch (config-if-vlan)# ip address dhcp fallback 192.168.1.10 255.255.255.0 4.2.46.7 ip dhcp server Command: ip dhcp server Interface Internet Protocol config commands dhcp Configure DHCP server parameters server Enable DHCP server per VLAN...

  • Page 147: Ip Igmp Snooping Compatibility

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ip igmp snooping 4.2.46.9 ip igmp snooping compatibility Command: ip igmp snooping compatibility auto | v1 | v2 | v3 Interface Internet Protocol config commands igmp...

  • Page 148: Ip Igmp Snooping Priority

    Command Guide of WGSW-48040HP last-member-query-interval Last Member Query Interval in tenths of seconds <IpmcLmqi : 0-31744> 0 - 31744 tenths of seconds Default: Usage Guide: To configure Last-member-query-interval of IGMP snooping for specific VLAN Example: To configure Last-member-query-interval (100 seconds) of IGMP snooping for VLAN X...

  • Page 149: Ip Igmp Snooping Querier Address

    Command Guide of WGSW-48040HP 4.2.46.12 ip igmp snooping querier address Command: ip igmp snooping querier address <ipv4_ucast> Interface Internet Protocol config commands igmp Internet Group Management Protocol snooping Snooping IGMP querier IGMP Querier configuration address IGMP Querier address configuration <ipv4_ucast>...

  • Page 150: Ip Igmp Snooping Query-Interval

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ip igmp snooping querier election 4.2.46.14 ip igmp snooping query-interval Command: ip igmp snooping query-interval <IpmcQi : 1-31744> Interface Internet Protocol config commands igmp Internet Group Management Protocol...

  • Page 151: Ip Igmp Snooping Robustness-Variable

    Command Guide of WGSW-48040HP Default: Usage Guide: To configure Querier-interval of IGMP snooping for specific VLAN Example: To configure Querier-interval (60 seconds) of IGMP snooping for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ip igmp snooping query-max-response-time 600 4.2.46.16 ip igmp snooping robustness-variable...

  • Page 152: Ipv6 Address

    Command Guide of WGSW-48040HP ip igmp snooping unsolicited-report-interval <IpmcUri : 0-31744> Interface Internet Protocol config commands igmp Internet Group Management Protocol snooping Snooping IGMP robustness-variable Robustness Variable <IpmcUri : 0-31744> 0 - 31744 seconds Default: Usage Guide: To configure Unsolicited-Report-Interval of IGMP snooping for specific VLAN...

  • Page 153: Ipv6 Mld Snooping

    Command Guide of WGSW-48040HP 4.2.46.19 ipv6 mld snooping Command: ipv6 mld snooping ipv6 IPv6 configuration commands Multicast Listener Discovery snooping Snooping MLD Default: Disabled Usage Guide: To enable MLD snooping for specific VLAN Example: To enable MLD snooping for VLAN X...

  • Page 154: Ipv6 Mld Snooping Last-Member-Query-Interval

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ipv6 mld snooping compatibility v2 4.2.46.21 ipv6 mld snooping last-member-query-interval Command: ipv6 mld snooping last-member-query-interval <IpmcLmqi : 0-31744> ipv6 IPv6 configuration commands Multicast Listener Discovery snooping...

  • Page 155: Ipv6 Mld Snooping Querier Election

    Command Guide of WGSW-48040HP Usage Guide: To configure CoS priority of MLD snooping for specific VLAN Example: To configure CoS priority (5) of MLD snooping for VLAN X Switch# configure terminal Switch (config)# interface vlan X Switch (config-if-vlan)# ipv6 mld snooping priority 5 4.2.46.23 ipv6 mld snooping querier election...

  • Page 156: Ipv6 Mld Snooping Query-Max-Response-Time

    Command Guide of WGSW-48040HP query-interval Query Interval in seconds <IpmcQi : 1-31744> 1 - 31744 seconds Default: Usage Guide: To configure Querier-interval of MLD snooping for specific VLAN Example: To configure Querier-interval (600 seconds) of MLD snooping for VLAN X...

  • Page 157: Ipv6 Mld Snooping Unsolicited-Report-Interval

    Command Guide of WGSW-48040HP Command: ipv6 mld snooping robustness-variable <IpmcRv : 1-255> ipv6 IPv6 configuration commands Multicast Listener Discovery snooping Snooping MLD robustness-variable Robustness Variable <IpmcRv : 1-255> Packet loss tolerance count from 1 to 255 Default: Usage Guide: To configure Robustness Variable of MLD snooping for specific VLAN...

  • Page 158: Ip Arp Inspection

    Command Guide of WGSW-48040HP Switch (config-if-vlan)# ipv6 mld snooping unsolicited-report-interval 99 4.2.46.28 no Command: Negate a command or set its defaults Default: Usage Guide: To default the function for specific interface Example: To disable the function (ip address dhcp) for VLAN X...

  • Page 159: Ip Arp Inspection Entry Interface

    Command Guide of WGSW-48040HP Switch (config)# ip arp inspection 4.2.48 ip arp inspection entry interface Command: ip arp inspection entry interface [10GigabitEthernet | GigabitEthernet] <vlan_id> <mac_ucast> <ipv4_ucast> Internet Protocol Address Resolution Protocol inspection ARP inspection entry arp inspection entry interface...

  • Page 160: Ip Arp Inspection Translate Interface

    Command Guide of WGSW-48040HP Address Resolution Protocol inspection ARP inspection translate arp inspection translate all entries Default: Usage Guide: To translate dynamic entries into static ARP inspection table. Example: To translate dynamic entries into static ARP inspection table. Switch# configure terminal...

  • Page 161: Ip Arp Inspection Vlan

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# ip arp inspection translate interface GigabitEthernet 1/1 1 00:11:22:33:44:55 192.168.0.18 4.2.51 ip arp inspection vlan Command: ip arp inspection vlan <vlan_list> logging all | deny | permit Internet Protocol Address Resolution Protocol...

  • Page 162: Ip Dhcp Pool

    Command Guide of WGSW-48040HP excluded-address Prevent DHCP from assigning certain addresses <A.B.C.D> Low IP address Default: Usage Guide: To configure excluded IP range of DHCP Server. Example: To configure excluded IP range (192.168.0.100~192.168.0.101) of DHCP Server. Switch# configure terminal Switch (config)# ip dhcp excluded-address 192.168.0.100 192.168.0.101 4.2.53 ip dhcp pool...

  • Page 163: Broadcast

    Command Guide of WGSW-48040HP 4.2.53.1 broadcast Command: broadcast <A.B.C.D> broadcast Broadcast address in use on the client's subnet <A.B.C.D> Broadcast IP address Default: None Usage Guide: To configure Broadcast IP address (DHCP option 28) of DHCP Server Example: To configure Broadcast IP address (192.168.0.66) of DHCP Server for pool “planetbestswitch”...

  • Page 164: Client-Identifier Mac-Address

    Command Guide of WGSW-48040HP 4.2.53.3 client-identifier mac-address Command: client-identifier mac-address <MAC> client-identifier Client identifier mac-address MAC address type of client identifier <MAC> MAC address of client Default: None Usage Guide: To configure Bind IP to MAC of DHCP Server Example: To configure Bind IP to MAC (00:11:22:33:44:55) of DHCP Server for pool “planetbestswitch”...

  • Page 165: Default-Router

    Command Guide of WGSW-48040HP 4.2.53.5 default-router Command: default-router <A.B.C.D> default-router Default routers <A.B.C.D> Router's IP address Default: None Usage Guide: To configure Default Gateway of DHCP Server Example: To configure Default Gateway (192.168.0.1) of DHCP Server for pool “planetbestswitch” Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# default-router 192.168.0.1...

  • Page 166: Domain-Name

    Command Guide of WGSW-48040HP 4.2.53.7 do Command: do < exec commands > To run exec commands in config mode Default: Usage Guide: To run exec commands Example: To run “show aaa”. Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch...

  • Page 167: End

    Command Guide of WGSW-48040HP Switch (config-dhcp-pool)# domain-name planet.com 4.2.53.9 end Command: Go back to EXEC mode Default: Auto Usage Guide: To back to EXEC mode Example: To back to EXEC mode Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch...

  • Page 168: Hardware-Address

    Command Guide of WGSW-48040HP Switch (config-dhcp-pool)# exit Switch (config)# 4.2.53.11 hardware-address Command: hardware-address <MAC> hardware-address Client hardware address <MAC> Client MAC address Default: None Usage Guide: To configure MAC address of DHCP Server while the pool is in the host type.

  • Page 169: Lease

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# host 192.168.1.10 255.255.255.0 4.2.53.13 lease Command: lease <0-365> <0-23> <0-59> | infinite lease Address lease time <0-365> Days <0-23> Hours <0-59> Minutes infinite Infinite lease...

  • Page 170: Netbios-Node-Type

    Command Guide of WGSW-48040HP To configure NetBIOS Name Server of DHCP Server. Example: To configure NetBIOS Name Server (192.168.1.10) of DHCP Server for pool “planetbestswitch”. Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# netbios-name-server 192.168.1.10 4.2.53.15 netbios-node-type...

  • Page 171: Network

    Command Guide of WGSW-48040HP Default: None Usage Guide: To configure NetBIOS scope of DHCP Server. Example: To configure NetBIOS scope (planet) of DHCP Server for pool “planetbestswitch”. Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# netbios-scope planet 4.2.53.17 network...

  • Page 172: Nis-Server

    Command Guide of WGSW-48040HP Default: None Usage Guide: To configure NIS Domain Name of DHCP Server Example: To configure NIS Domain Name (planet.com) of DHCP Server for pool “planetbestswitch” Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# nis-domain-name planet.com 4.2.53.19 nis-server...

  • Page 173: Ntp-Server

    Command Guide of WGSW-48040HP Usage Guide: To default the function Example: To disable the function (nis-domain-name planet.com) for pool “planetbestswitch” Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# no nis-domain-name planet.com 4.2.53.21 ntp-server Command: ntp-server <A.B.C.D> ntp-server NTP servers <A.B.C.D>...

  • Page 174: Ip Dns Proxy

    Command Guide of WGSW-48040HP <HEX-VALUE> Hex values in 64 octets Default: None Usage Guide: To configure Vendor ID and info of DHCP Server Example: To configure Vendor ID and info as below table of DHCP Server for pool “planetbestswitch” Switch# configure terminal Switch (config)# ip dhcp pool planetbestswitch Switch (config-dhcp-pool)# vendor class-identifier "0x8"...

  • Page 175: Ip Http Secure-Redirect

    Command Guide of WGSW-48040HP Internet Protocol helper-address DHCP relay server <Ip : ipv4_ucast> IP address of the DHCP relay server Default: None Usage Guide: To configure IP address of DHCP. Example: To configure IP address (1.1.1.1) of DHCP. Switch# configure terminal Switch (config)# ip helper-address 1.1.1.1...

  • Page 176: Ip Igmp Host-Proxy

    Command Guide of WGSW-48040HP Internet Protocol http Hypertext Transfer Protocol secure-server Secure HTTP web server Default: Disabled Usage Guide: To enable HTTPs WebUI. Example: To enable HTTPs WebUI. Switch# configure terminal Switch (config)# ip http secure-server 4.2.58 ip igmp host-proxy...

  • Page 177: Ip Igmp Snooping

    Command Guide of WGSW-48040HP Internet Protocol igmp Internet Group Management Protocol host-proxy IGMP proxy configuration leave-proxy IGMP proxy for leave configuration Default: Disabled Usage Guide: To enable IGMP leave-proxy Example: To enable IGMP leave-proxy. Switch# configure terminal Switch (config)# ip igmp host-proxy leave-proxy 4.2.60 ip igmp snooping...

  • Page 178: Ip Igmp Ssm-Range

    Command Guide of WGSW-48040HP ip igmp snooping vlan <vlan_list> Internet Protocol igmp Internet Group Management Protocol snooping Snooping IGMP vlan IGMP VLAN <vlan_list> VLAN identifier(s): VID Default: Disabled Usage Guide: To enable IGMP Snooping for specific VLAN. Example: To enable IGMP Snooping for VLAN 1.

  • Page 179: Ip Igmp Unknown-Flooding

    Command Guide of WGSW-48040HP 4.2.63 ip igmp unknown-flooding Command: ip igmp unknown-flooding Internet Protocol igmp Internet Group Management Protocol unknown-flooding Flooding unregistered IPv4 multicast traffic Default: Enabled Usage Guide: To flood unregistered IPv4 multicast traffic. Example: To flood unregistered IPv4 multicast traffic.

  • Page 180: Ip Name-Server Dhcp

    Command Guide of WGSW-48040HP 4.2.65 ip name-server dhcp Command: ip name-server dhcp Internet Protocol name-server Domain Name System dhcp Dynamic Host Configuration Protocol Default: None Usage Guide: To configure DNS IP address via DHCP Server. Example: To configure DNS IP address via DHCP Server.

  • Page 181: Ip Route

    Command Guide of WGSW-48040HP 4.2.67 ip route Command: ip route <ipv4_addr> <ipv4_netmask> <ipv4_gateway> Internet Protocol route Add IP route <ipv4_addr> Network <ipv4_netmask> Netmask <ipv4_gateway> Gateway Default: None Usage Guide: To configure static route Example: To configure static route as below table.

  • Page 182: Ip Source Binding Interface

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# ip routing 4.2.69 ip source binding interface Command: ip source binding interface 10GigabitEthernet | GigabitEthernet <port_type_id> <ipv4_ucast> <ipv4_netmask> Internet Protocol source source command binding ip source binding interface ip source binding entry interface config <ipv4_ucast>...

  • Page 183: Ip Verify Source

    Command Guide of WGSW-48040HP Default: None Usage Guide: To enable SSH service Example: To enable SSH service Switch# configure terminal Switch (config)# ip ssh 4.2.71 ip verify source Command: ip verify source Internet Protocol verify verify command source verify source...

  • Page 184: Ipmc Profile

    Command Guide of WGSW-48040HP Default: Disabled Usage Guide: To translate dynamic entries to IP Source Guard table Example: To translate dynamic entries to IP Source Guard table Switch# configure terminal Switch (config)# ip verify source translate 4.2.73 ipmc profile Command:...

  • Page 185: Default Range

    Command Guide of WGSW-48040HP Default: Disabled Usage Guide: To enter IPMC profile mode Example: To enter IPMC profile mode (planet) Switch# configure terminal Switch (config)# ipmc profile planet Switch (config-ipmc-profile)# 4.2.74.1 default range Command: default range <EntryName : word16> default...

  • Page 186: End

    Command Guide of WGSW-48040HP Default: None Usage Guide: To configure description for specific IPMC Profile Example: To configure description (999) for specific IPMC Profile (planet) Switch# configure terminal Switch (config)# ipmc profile planet Switch (config-ipmc-profile)# description 999 4.2.74.3 do Command: do <...

  • Page 187: Exit

    Command Guide of WGSW-48040HP Go back to EXEC mode Default: Auto Usage Guide: To back to EXEC mode Example: To back to EXEC mode Switch# configure terminal Switch (config)# ipmc profile planet Switch (config-ipmc-profile)#end Switch# 4.2.74.5 exit Command: exit exit...

  • Page 188: Range

    Command Guide of WGSW-48040HP Negate a command or set its defaults Default: Usage Guide: To default the function. Example: To enable the function (description 999). Switch# configure terminal Switch (config)# ipmc profile planet Switch (config-ipmc-profile)# no description 999 4.2.74.7 range Command: range <EntryName : word16>...

  • Page 189: Ipv6 Mld Host-Proxy Leave-Proxy

    Command Guide of WGSW-48040HP Command: ipv6 mld host-proxy ipv6 IPv6 configuration commands Multicast Listener Discovery host-proxy MLD proxy configuration Default: Disabled Usage Guide: To enable MLD Proxy Example: To enable MLD Proxy. Switch# configure terminal Switch (config)# ipv6 mld host-proxy 4.2.76 ipv6 mld host-proxy leave-proxy...

  • Page 190: Ipv6 Mld Snooping

    Command Guide of WGSW-48040HP 4.2.77 ipv6 mld snooping Command: ipv6 mld snooping ipv6 IPv6 configuration commands Multicast Listener Discovery snooping Snooping MLD Default: Disabled Usage Guide: To enable MLD Snooping. Example: To enable MLD Snooping. Switch# configure terminal Switch (config)# ipv6 mld snooping 4.2.78 ipv6 mld snooping vlan...

  • Page 191: Ipv6 Mld Ssm-Range

    Command Guide of WGSW-48040HP 4.2.79 ipv6 mld ssm-range Command: ipv6 mld ssm-range <ipv6_mcast> <Ipv6PrefixLength : 8-128> ipv6 IPv6 configuration commands Multicast Listener Discovery ssm-range IPv6 address range of Source Specific Multicast <ipv6_mcast> Valid IPv6 multicast address <Ipv6PrefixLength : 8-128> Prefix length ranges from 8 to 128...

  • Page 192: Ipv6 Route

    Command Guide of WGSW-48040HP 4.2.81 ipv6 route Command: Ipv6 route <X:X:X:X::X/<0-128>> {<X:X:X:X::X>, interface vlan <vlan_id> <FE80::X:X:X >} ipv6 IPv6 configuration commands route Add IP route <X:X:X:X::X/<0-128>> IPv6 prefix x:x::y/z <X:X:X:X::X> IPv6 unicast address (except link-local address) of next-hop interface Select an interface to configure...

  • Page 193: Lacp System-Priority

    Command Guide of WGSW-48040HP 4.2.82 lacp system-priority Command: lacp system-priority <1-65535> lacp LACP settings system-priority System priority <1-65535> Priority value, lower means higher priority Default: 32768 Usage Guide: To configure LACP system-priority. Example: To configure LACP system-priority (99). Switch# configure terminal Switch (config)# lacp system-priority 99 4.2.83 line...

  • Page 194: Editing

    Command Guide of WGSW-48040HP 4.2.83.1 do Command: do < exec commands > To run exec commands. Default: Usage Guide: To run exec commands. Example: To run “show aaa”. Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# do show aaa...

  • Page 195: End

    Command Guide of WGSW-48040HP Switch (config-line)# editing 4.2.83.3 end Command: Go back to EXEC mode Default: None Usage Guide: To back to EXEC mode Example: To back to EXEC mode Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)#end Switch# 4.2.83.4 exec-banner...

  • Page 196: Exec-Timeout

    Command Guide of WGSW-48040HP Switch (config-line)# exec-banner 4.2.83.5 exec-timeout Command: exec-timeout <0-1440> exec-timeout Set the EXEC timeout <0-1440> Timeout in minutes Default: Usage Guide: To configure EXEC timeout Example: To configure EXEC timeout (10 minutes) Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# exec-timeout 10 4.2.83.6 exec-timeout...

  • Page 197: Exit

    Command Guide of WGSW-48040HP Switch (config-line)# exec-timeout 10 4.2.83.7 exit Command: exit exit Exit from current mode Default: None Usage Guide: To exit current mode Example: To exit current mode. Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# exit Switch (config)# 4.2.83.8 history size...

  • Page 198: Length

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# history size 1 4.2.83.9 length Command: length <0 or 3-512> length Set number of lines on a screen <0 or 3-512> Number of lines on screen (0 for no pausing)

  • Page 199: Motd-Banner

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# location taiwan 4.2.83.11 motd-banner Command: motd-banner motd-banner Enable the display of the MOTD banner Default: Enabled Usage Guide: To enable MOTD banner. Example: To enable MOTD banner..

  • Page 200: Privilege Level

    Command Guide of WGSW-48040HP Switch (config)# line vty 1 Switch (config-line)# no motd-banner 4.2.83.13 privilege level Command: privilege level <0-15> privilege Change privilege level for line level Assign default privilege level for line <0-15> Default privilege level for line Default:...

  • Page 201: Lldp Holdtime

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# line vty 1 Switch (config-line)# width 50 4.2.84 lldp holdtime Command: lldp holdtime <2-10> lldp LLDP configurations. holdtime Sets LLDP hold time (The neighbor switch will discarded the LLDP information after "hold time" multiplied with "timer"...

  • Page 202: Lldp Med Fast

    Command Guide of WGSW-48040HP Usage Guide: To configure Datum type of LLDP Example: To configure Datum type (nad83-mllw) of LLDP Switch# configure terminal Switch (config)# lldp med datum nad83-mllw 4.2.86 lldp med fast Command: lldp med fast <1-10> lldp LLDP configurations.

  • Page 203: Lldp Med Location-Tlv Elin-Addr

    Command Guide of WGSW-48040HP meters Specify the altitude in meters. Default: Usage Guide: To configure altitude of LLDP-MED Example: To configure altitude (Floors 5) of LLDP-MED Switch# configure terminal Switch (config)# lldp med location-tlv altitude floors 5 4.2.88 lldp med location-tlv elin-addr Command: lldp med location-tlv elin-addr <ELIN number>...

  • Page 204: Lldp Med Location-Tlv Longitude

    Command Guide of WGSW-48040HP lldp LLDP configurations. Media Endpoint Discovery location-tlv LLDP-MED Location Type Length Value parameter latitude Latitude parameter north Setting latitude direction to north. south Setting latitude direction to south <Degrees> Latitude degrees (0.0000-90.0000) Default: North, 0 Usage Guide:...

  • Page 205: Lldp Med Media-Vlan-Policy

    Command Guide of WGSW-48040HP Switch (config)# lldp med location-tlv longitude east 5 4.2.91 lldp med media-vlan-policy Command: lldp med media-vlan-policy <Index : 0-31> {guest-voice | guest-voice-signaling softphone-voice | streaming-video | video-conferencing | video-signaling | voice | voice-signaling} {tagged | untagged} <vlan_id> dscp <0-63> l2-priority <0-7>...

  • Page 206: Lldp Reinit

    Command Guide of WGSW-48040HP Switch (config)# lldp med media-vlan-policy 1 guest-voice tagged 1 dscp 45 l2-priority 4.2.92 lldp reinit Command: lldp reinit <1-10> lldp LLDP configurations. reinit LLDP tx reinitialization delay in seconds <1-10> 1-10 seconds. Default: Usage Guide: To configure Tx re-initialization delay time of LLDP...

  • Page 207: Lldp Transmission-Delay

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# lldp timer 555 4.2.94 lldp transmission-delay Command: lldp transmission-delay <1-8192> lldp LLDP configurations. transmission-delay Sets LLDP transmision-delay. LLDP transmission delay (the amount of time that the transmission of LLDP frames will delayed after LLDP configuration has changed) in seconds.) <1-8192>...

  • Page 208: Logging Level

    Command Guide of WGSW-48040HP Example: To configure address of log server Switch# configure terminal Switch (config)# logging host 192.168.5.5 4.2.96 logging level Command: logging level error | info | warning logging Syslog level level error Error info Information warning Warning...

  • Page 209: Loop-Protect

    Command Guide of WGSW-48040HP Usage Guide: To enable log server Example: To enable log server Switch# configure terminal Switch (config)# logging on 4.2.98 loop-protect Command: loop-protect loop-protect Loop protection configuration Default: Disabled Usage Guide: To enable Loop Protection Example: To enable Loop Protection...

  • Page 210: Loop-Protect Transmit-Time

    Command Guide of WGSW-48040HP Usage Guide: To configure shutdown time interval of Loop Protection Example: To configure shutdown time interval (888) of Loop Protection Switch# configure terminal Switch (config)# loop-protect shutdown-time 888 4.2.100 loop-protect transmit-time Command: loop-protect transmit-time <0-10> loop-protect...

  • Page 211: Mac Address-Table Static

    Command Guide of WGSW-48040HP Usage Guide: To configure Aging Time of MAC Address Table Example: To configure Aging Time (888) of MAC Address Table Switch# configure terminal Switch (config)# mac address-table aging-time 888 4.2.102 mac address-table static Command: mac address-table static <mac_addr> vlan <vlan_id> interface * | 10GigabitEthernet <port_type_list>...

  • Page 212: Monitor Destination

    Command Guide of WGSW-48040HP 4.2.103 monitor destination Command: monitor destination interface 10GigabitEthernet <port_type_list> | GigabitEthernet <port_type_list> monitor Set monitor configuration destination The destination port. That is the port that trafficed should be mirrored to Default: Disabled Usage Guide: To configure Mirroring Port...

  • Page 213: Mvr

    Command Guide of WGSW-48040HP 4.2.105 mvr Command: Multicast VLAN Registration configuration Default: Disabled Usage Guide: To enable MVR Example: To enable MVR Switch# configure terminal Switch (config)# mvr 4.2.106 mvr name <mvr_name> channel Command: mvr name <mvr_name> channel <ProfileName : word16>...

  • Page 214: Mvr Name Frame Priority

    Command Guide of WGSW-48040HP 4.2.107 mvr name <mvr_name> frame priority Command: mvr name <mvr_name> frame priority <CosPriority : 0-7> Multicast VLAN Registration configuration name MVR multicast name <MvrName : word16> MVR multicast VLAN name frame MVR control frame in TX...

  • Page 215: Mvr Name Igmp-Address

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# mvr name 123 frame tagged 4.2.109 mvr name <mvr_name> igmp-address Command: mvr name <mvr_name> igmp-address <ipv4_ucast> Multicast VLAN Registration configuration name MVR multicast name <MvrName : word16> MVR multicast VLAN name...

  • Page 216: Mvr Name Mode

    Command Guide of WGSW-48040HP Usage Guide: To configure the Last Member Query Interval of MVR profile Example: To configure the Last Member Query Interval (50 seconds) of MVR profile (123) Switch# configure terminal Switch (config)# mvr name 123 last-member-query-interval 500 4.2.111 mvr name <mvr_name>...

  • Page 217: Mvr Vlan Channel

    Command Guide of WGSW-48040HP Default: None Usage Guide: To create a profile of MVR VLAN Example: To create a profile of MVR VLAN (5) Switch# configure terminal Switch (config)# mvr vlan 5 4.2.113 mvr vlan <vlan_list> channel Command: mvr vlan <vlan_list> channel <ProfileName : word16>...

  • Page 218: Mvr Vlan Tagged

    Command Guide of WGSW-48040HP <vlan_list> MVR multicast VLAN list frame MVR control frame in TX priority Interface CoS priority <CosPriority : 0-7> CoS priority ranges from 0 to 7 Default: Usage Guide: To configure the frame priority of MVR VLAN...

  • Page 219: Mvr Vlan Igmp-Address

    Command Guide of WGSW-48040HP 4.2.116 mvr vlan <vlan_list> igmp-address Command: mvr vlan <vlan_list> igmp-address <ipv4_ucast> Multicast VLAN Registration configuration vlan MVR multicast vlan <vlan_list> MVR multicast VLAN list igmp-address MVR address configuration used in IGMP <ipv4_ucast> A valid IPv4 unicast address Default: 0.0.0.0...

  • Page 220: Mvr Vlan Mode

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# mvr vlan 123 last-member-query-interval 500 4.2.118 mvr vlan <vlan_list> mode Command: mvr vlan <vlan_list> mode [ compatible | dynamic ] Multicast VLAN Registration configuration vlan MVR multicast vlan <vlan_list> MVR multicast VLAN list...

  • Page 221: Ntp

    Command Guide of WGSW-48040HP Usage Guide: To configure profile name of MVR VLAN Example: To configure profile name (6) of MVR VLAN (5) Switch# configure terminal Switch (config)# mvr vlan 5 name 6 4.2.120 no Command: Negate a command or set its defaults...

  • Page 222: Ntp Server

    Command Guide of WGSW-48040HP Example: To enable the NTP service Switch# configure terminal Switch (config)# ntp 4.2.122 ntp server Command: ntp server <1-5> ip-address { <ipv4_var> | <ipv6_var> | <name_var> } Configure NTP server Configure NTP server <1-5> index number <hostname>...

  • Page 223: Poe Management Mode

    Command Guide of WGSW-48040HP Default: Enabled Usage Guide: To enable System PoE Admin Mode. Example: To enable System PoE Admin Mode. Switch# configure terminal Switch (config)# poe admin-mode enable 4.2.124 poe management mode Command: management mode class-consumption class-reserved-power allocation-consumption allocation-reserved-power...

  • Page 224: Poe Sequential Enable

    Command Guide of WGSW-48040HP 4.2.125 poe sequential enable Command: poe sequential enable Power Over Ethernet sequential PoE sequential is to delay power feeding when the switch is completely booted. enable poe sequential enable Default: Enabled Usage Guide: To enable Sequential Power up Option.

  • Page 225: Poe Sequential Rule

    Command Guide of WGSW-48040HP 4.2.127 poe sequential rule Command: poe sequential rule { port | priority } Power Over Ethernet sequential rule PoE sequential is to delay power feeding when the switch is completely booted. port System sequential feeding power the PoE interfaces based port number.

  • Page 226: Poe Temperature-Protection Enable

    Command Guide of WGSW-48040HP 4.2.129 poe temperature-protection enable Command: poe temperature-protection enable Power Over Ethernet temperature-protection Configure PoE over temperature protection to enable or disable. enable poe temperature-protection enable Default: Enabled Usage Guide: To enable PoE Temperature Protection. Example: To enable PoE Temperature Protection.

  • Page 227: Poe Usage-Threshold

    Command Guide of WGSW-48040HP 4.2.131 poe usage-threshold Command: poe usage-threshold <1-99> Power Over Ethernet usage-threshold The poe usage-threshold command sets a percentage threshold above which the system sends a log or SNMP trap.<1-99>: The -threshold percentage configured with this command.

  • Page 228: End

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# poe-time-range profile1 Switch (config-poe-time-range)# 4.2.132.1 do Command: do < exec commands > To run exec commands Default: Usage Guide: To run exec commands Example: To run “show aaa”. Switch# configure terminal...

  • Page 229: Exit

    Command Guide of WGSW-48040HP Example: To back to EXEC mode Switch# configure terminal Switch (config)# poe-time-range profile1 Switch (config-poe-time-range)#end Switch# 4.2.132.3 exit Command: exit exit Exit from current mode Default: None Usage Guide: To exit current mode Example: To exit current mode.

  • Page 230: Periodic

    Command Guide of WGSW-48040HP Example: To enable the function (description 999). Switch# configure terminal Switch (config)# poe-time-range profile1 Switch (config-poe-time-range)#no description 999 4.2.132.5 periodic Command: periodic { Mon | Tue | Wed | Thu | Fri | Sat | Sun } <start_h> <start_m> to <end_h>...

  • Page 231: Reboot-Only

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# poe-time-range profile1 Switch (config-poe-time-range)# periodic Mon 11 59 to 22 50 reboot 11 44 4.2.132.6 reboot-only Command: reboot-only { Mon | Tue | Wed | Thu | Fri | Sat | Sun } <reboot_h> <reboot_m>...

  • Page 232: Port-Security

    Command Guide of WGSW-48040HP 4.2.133 port-security Command: port-security port-security Enable/disable port security globally Default: Disabled Usage Guide: To enable the Port Security Example: To enable the Port Security Switch# configure terminal Switch (config)# port-security 4.2.134 port-security aging Command: port-security aging...

  • Page 233: Port-Security Aging Time

    Command Guide of WGSW-48040HP 4.2.135 port-security aging time Command: port-security aging time <10-10000000> port-security Enable/disable port security globally aging Enable/disable port security aging time Time in seconds between check for activity on learned MAC addresses <10-10000000> seconds Default: 3600 Usage Guide:...

  • Page 234: Qos Map Cos-Dscp

    Command Guide of WGSW-48040HP <cmd> Initial valid words and literals of the command to modify Default: None Usage Guide: To configure the Privilege Level for Command Line Example: To configure the Privilege Level (DHCP Pool mode, Level 12, Command: host) for Command Line...

  • Page 235: Qos Map Dscp-Classify

    Command Guide of WGSW-48040HP Class Selector PHB CS3 precedence 3(DSCP 24) Class Selector PHB CS4 precedence 4(DSCP 32) Class Selector PHB CS5 precedence 5(DSCP 40) Class Selector PHB CS6 precedence 6(DSCP 48) Class Selector PHB CS7 precedence 7(DSCP 56) Expedited Forwarding PHB(DSCP 46)

  • Page 236: Qos Map Dscp-Cos

    Command Guide of WGSW-48040HP Default PHB(DSCP 0) for best effort traffic Class Selector PHB CS1 precedence 1(DSCP 8) Class Selector PHB CS2 precedence 2(DSCP 16) Class Selector PHB CS3 precedence 3(DSCP 24) Class Selector PHB CS4 precedence 4(DSCP 32) Class Selector PHB CS5 precedence 5(DSCP 40)

  • Page 237: Qos Map Dscp-Egress-Translation

    Command Guide of WGSW-48040HP af33 Assured Forwarding PHB AF33(DSCP 30) af41 Assured Forwarding PHB AF41(DSCP 34) af42 Assured Forwarding PHB AF42(DSCP 36) af43 Assured Forwarding PHB AF43(DSCP 38) Default PHB(DSCP 0) for best effort traffic Class Selector PHB CS1 precedence 1(DSCP 8)

  • Page 238: Qos Map Dscp-Ingress-Translation

    Command Guide of WGSW-48040HP <DscpNum : 0-63> Specific DSCP af11 Assured Forwarding PHB AF11(DSCP 10) af12 Assured Forwarding PHB AF12(DSCP 12) af13 Assured Forwarding PHB AF13(DSCP 14) af21 Assured Forwarding PHB AF21(DSCP 18) af22 Assured Forwarding PHB AF22(DSCP 20) af23...
  • Page 239 Command Guide of WGSW-48040HP va } } to { <dscp_num_tr> | { be | af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } }...

  • Page 240: Qos Qce

    Command Guide of WGSW-48040HP 4.2.142 qos qce Command: qos qce <qce_id> [ { next <qce_id_next> } | last ] [ interface ( <port_type> [ <port_list> ] ) ] [ smac { <smac> | <smac_24> | any } ] [ dmac { <dmac> | unicast | multicast | broadcast | any } ] [ tag { [ type { untagged | tagged | c-tagged | s-tagged | any } ] [ vid { <ot_vid>...

  • Page 241: Qos Qce Update

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# qos qce 1 interface GigabitEthernet 1/1-2 tag type tagged vid 5 pcp 3 dei 1 dmac unicast frame-type ipv4 proto udp dscp 19 frag no sport 55 action cos 0 dpl 1 dscp 4 4.2.143 qos qce update...

  • Page 242: Qos Qce Refresh

    Command Guide of WGSW-48040HP [ pcp-dei { <action_pcp> <action_dei> | default } ] [ dscp { <action_dscp_dscp> | { be | af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } | default } ] [ policy { <action_policy>...

  • Page 243: Qos Wred

    Command Guide of WGSW-48040HP Example: To refresh the QCE. Switch# configure terminal Switch (config)# qos qce refresh 4.2.145 qos wred Command: qos wred queue <queue> min-th <min_th> mdp-1 <mdp_1> mdp-2 <mdp_2> mdp-3 <mdp_3> Quality of Service wred Weighted Random Early Discard...

  • Page 244: Radius-Server Attribute 32

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# qos wred queue 1 min-th 2 mdp-1 3 mdp-2 4 mdp-3 5 4.2.146 radius-server attribute 32 Command: radius-server attribute 32 <Id : line1-253> radius-server Configure RADIUS NAS-Identifier Default: None Usage Guide:...

  • Page 245: Radius-Server Attribute 95

    Command Guide of WGSW-48040HP Default: None Usage Guide: To configure the NAS-IP-Address Example: To configure the NAS-IP-Address (7.7.7.7) Switch# configure terminal Switch (config)# radius-server attribute 4 7.7.7.7 4.2.148 radius-server attribute 95 Command: radius-server attribute 95 <Ipv6 : ipv6_ucast> radius-server Configure RADIUS...

  • Page 246: Radius-Server Host

    Command Guide of WGSW-48040HP Default: Usage Guide: To configure the Deadtime of Radius-Server Example: To configure the Deadtime (15) of Radius-Server Switch# configure terminal Switch (config)# radius-server deadtime 15 4.2.150 radius-server host Command: radius-server host <host_name> [ auth-port <auth_port> ] [ acct-port <acct_port> ] [ timeout <seconds>...

  • Page 247: Radius-Server Key

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# radius-server host planet.com.tw timeout 10 retransmit 6 key 123456789 4.2.151 radius-server key Command: radius-server key <Key : line1-63> radius-server Configure RADIUS Set RADIUS encryption key <Key : line1-63> The shared key...

  • Page 248: Radius-Server Timeout

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# radius-server retransmit 5 4.2.153 radius-server timeout Command: radius-server timeout <Seconds : 1-1000> radius-server Configure RADIUS timeout Time to wait for a RADIUS server to reply <Seconds : 1-1000> Wait time in seconds...
  • Page 249 Command Guide of WGSW-48040HP normal ifInErrors The number of inbound packets that contained errors preventing them from being deliverable to a higher-layer protocol ifInNUcastPkts The number of broad-cast and multi-cast packets delivered to a higher-layer protocol ifInOctets The total number of octets received on the interface,...

  • Page 250: Rmon Event

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# rmon alarm 1 .1.3.6.1.2.1.2.2.1.10.15 50 absolute rising-threshold 1000 1 falling-threshold 520 1 falling 4.2.155 rmon event Command: rmon event <id: 1-65535> [ log ] [ trap <community> ] { [ description <description> ] }...

  • Page 251: Snmp-Server

    Command Guide of WGSW-48040HP Default: None Usage Guide: To configure the SFP temperature-threshold of sFlow Example: To configure the SFP temperature-threshold (55 degrees C) of sFlow Switch# configure terminal Switch (config)# sfp temperature-threshold 55 4.2.157 snmp-server Command: snmp-server snmp-server Set SNMP server's configurations...

  • Page 252: Snmp-Server Community

    Command Guide of WGSW-48040HP any security model v1 security model v2c security model v3 security model level security level auth authNoPriv Security Level noauth noAuthNoPriv Security Level priv authPriv Security Level read specify a read view for the group <ViewName : word255>...

  • Page 253: Snmp-Server Contact

    Command Guide of WGSW-48040HP <ipv4_addr> IPv4 address <ipv4_netmask> IPv4 netmask Default: None Usage Guide: To configure the Read / Write / Source network Community of SNMP Example: To configure the Read / Write / Source network Community (below table) of SNMP Switch# configure terminal Switch (config)# snmp-server community v3 public 192.168.0.15 255.255.255.0...

  • Page 254: Snmp-Server Engine-Id

    Command Guide of WGSW-48040HP 4.2.161 snmp-server engine-id Command: snmp-server engine-id local <Engineid : word10-32> snmp-server Set SNMP server's configurations engine-id Set SNMP engine ID local Set SNMP local engine ID <Engineid : word10-32> local engine ID Default: None Usage Guide:...

  • Page 255: End

    Command Guide of WGSW-48040HP 4.2.162.1 do Command: do < exec commands > To run exec commands. Default: Usage Guide: To run exec commands. Example: To run “show aaa”. Switch# configure terminal Switch (config)# snmp-server host planet Switch (config-snmps-host)#do show aaa...

  • Page 256: Exit

    Command Guide of WGSW-48040HP Switch# 4.2.162.3 exit Command: exit exit Exit from current mode Default: None Usage Guide: To exit current mode Example: To exit current mode. Switch# configure terminal Switch (config)# snmp-server host planet Switch (config-snmps-host)#exit Switch (config)# 4.2.162.4 host Command: host [<hostname>...

  • Page 257: Informs

    Command Guide of WGSW-48040HP Usage Guide: To configure Trap Host of SNMP Example: To configure Trap Host (below table) of SNMP Switch# configure terminal Switch (config)# snmp-server host planet Switch (config-snmps-host)# host planet.com 66 informs 4.2.162.5 no Command: Negate a command or set its defaults...

  • Page 258: Shutdown

    Command Guide of WGSW-48040HP <Retries : 0-255> retires times timeout timeout parmater <Timeout : 0-2147> timeout interval Default: None Usage Guide: To configure Trap Inform time of SNMP Example: To configure Trap Inform time (below table) of SNMP Switch# configure terminal...

  • Page 259: Traps

    Command Guide of WGSW-48040HP 4.2.162.8 traps Command: traps [ aaa authentication ] [ system [ coldstart ] [ warmstart ] ] [ switch [ stp ] [ rmon ] ] traps trap event configuration AAA event group authentication Authentication fail event...

  • Page 260: Spanning-Tree Aggregation

    Command Guide of WGSW-48040HP engineID Configure trap server's engine ID probe Probe trap server's engine ID Default: Disabled Usage Guide: To configure Version of SNMP Example: To configure Version (below table) of SNMP Switch# configure terminal Switch (config)# snmp-server host planet Switch (config-snmps-host)# version v2 planet 4.2.163 spanning-tree aggregation...

  • Page 261: End

    Command Guide of WGSW-48040HP Command: do < exec commands > To run exec commands. Default: Usage Guide: To run exec commands. Example: To run “show aaa”. Switch# configure terminal Switch (config)# spanning-tree aggregation Switch (config-stp-aggr)#do show aaa console : local...

  • Page 262: Exit

    Command Guide of WGSW-48040HP 4.2.163.3 exit Command: exit exit Exit from current mode Default: None Usage Guide: To exit current mode Example: To exit current mode. Switch# configure terminal Switch (config)# spanning-tree aggregation Switch (config-stp-aggr)#exit Switch (config)# 4.2.163.4 no Command:...

  • Page 263: Spanning-Tree Auto-Edge

    Command Guide of WGSW-48040HP 4.2.163.5 spanning-tree auto-edge Command: spanning-tree auto-edge spanning-tree Spanning Tree protocol auto-edge Auto detect edge status Default: Enabled Usage Guide: To enable the Auto Edge of CIST Aggregated Port Example: To enable the Auto Edge of CIST Aggregated Port...

  • Page 264: Spanning-Tree Edge

    Command Guide of WGSW-48040HP 4.2.163.7 spanning-tree edge Command: spanning-tree edge spanning-tree Spanning Tree protocol edge Edge port Default: Disabled Usage Guide: To enable the Admin Edge of CIST Aggregated Port Example: To enable the Admin Edge of CIST Aggregated Port...

  • Page 265: Spanning-Tree Mst Cost

    Command Guide of WGSW-48040HP Switch (config-snmps-host)# spanning-tree link-type shared 4.2.163.9 spanning-tree mst <instance> cost Command: spanning-tree mst <instance> cost { <cost> | auto } spanning-tree Spanning Tree protocol STP bridge instance <Instance : 0-7> instance 0-7 (CIST=0, MST1=1...) cost STP Cost of this port <Cost : 1-200000000>...

  • Page 266: Spanning-Tree Restricted-Role

    Command Guide of WGSW-48040HP Usage Guide: To configure the Port Priority of MSTI Port Example: To configure the Port Priority (96) of MSTI Port (MST 2) Switch# configure terminal Switch (config)# snmp-server host planet Switch (config-snmps-host)# spanning-tree mst 2 port-priority 96 4.2.163.11 spanning-tree restricted-role...

  • Page 267: Switchport Vlan Mapping

    Command Guide of WGSW-48040HP Usage Guide: To enable the Restricted TCN of CIST Example: To enable the Restricted TCN of CIST Switch# configure terminal (config)# spanning-tree aggregation (config-stp-aggr)# spanning-tree restricted-tcn 4.2.164 switchport vlan mapping Command: switchport vlan mapping <group> <vlan_list> <translation_vlan>...

  • Page 268: Tacacs-Server Deadtime

    Command Guide of WGSW-48040HP 4.2.165 tacacs-server deadtime Command: tacacs-server deadtime <minutes> tacacs-server Configure TACACS+ deadtime Time to stop using a TACACS+ server that doesn't respond <Minutes : 1-1440> Time in minutes Default: Usage Guide: To configure the Deadtime of TACACS+ Server...

  • Page 269: Transport Email Authentication

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# tacacs-server host planet.com port 55 timeout 6 key 7788 4.2.167 transport email authentication Command: transport email authentication username <username> password <password> transport Enable or disable transport email function. email Enable or disable transport email function.

  • Page 270: Transport Email Smtp-Server

    Command Guide of WGSW-48040HP <title> email title Default: Usage Guide: To configure SMTP sender's email address and title of the email Example: To configure SMTP sender's email address (sys@planet.com.tw) and title of the email (syserror) Switch# configure terminal Switch (config)# transport email from sys@planet.com.tw subject syserror 4.2.169 transport email smtp-server...

  • Page 271: Upnp

    Command Guide of WGSW-48040HP Command: transport email to <1 | 2> <mail_addr> transport Enable or disable transport email function. email Enable or disable transport email function. receiver's email <1|2> 1: mail address 1 2: mail address 2 <mail_addr> mail address...

  • Page 272: Upnp Ttl

    Command Guide of WGSW-48040HP Command: upnp advertising-duration <100-86400> upnp Set UPnP's configurations advertising-duration Set advertising duration <100-86400> advertising duration Default: Usage Guide: To configure the Advertising Duration of UPnP Example: To configure the Advertising Duration (123) of UPnP Switch# configure terminal Switch (config)# upnp advertising-duration 123 4.2.173 upnp ttl...

  • Page 273: Username

    Command Guide of WGSW-48040HP 4.2.174 username Command: username <username> privilege <priv> password { encrypted <encry_password> | none | unencrypted <password> } username Establish User Name Authentication <Username : word31> User name allows letters, numbers and underscores privilege Set user privilege level <privilegeLevel : 0-15>...
  • Page 274 Command Guide of WGSW-48040HP <vlan_list> VLAN IDs 1~4095 Default: None Usage Guide: To create the VLAN Profiles Example: To create the VLAN Profiles (VLAN 5) Switch# configure terminal Switch (config)# vlan 5 Switch (config-vlan)# 4.2.175.1 do Command: do < exec commands >...

  • Page 275: End

    Command Guide of WGSW-48040HP 4.2.175.2 end Command: Go back to EXEC mode Default: Auto Usage Guide: To back to EXEC mode Example: To back to EXEC mode Switch# configure terminal Switch (config)# vlan 5 Switch (config-vlan)#end Switch# 4.2.175.3 exit Command:...

  • Page 276: Name

    Command Guide of WGSW-48040HP 4.2.175.4 name Command: name <vlan_name> name ASCII name of the VLAN <vword32> The ASCII name for the VLAN Default: None Usage Guide: To configure description of VLAN Example: To configure description (FAE) of VLAN Switch# configure terminal...

  • Page 277: Vlan Ethertype S-Custom-Port

    Command Guide of WGSW-48040HP 4.2.176 vlan ethertype s-custom-port Command: vlan ethertype s-custom-port <etype> vlan VLAN commands ethertype Ether type for Custom S-ports s-custom-port Custom S-ports configuration <etype> Ethertype (Range: 0x0600-0xffff) Default: 0x88A8 Usage Guide: To create the Ethernet type of Custom S-ports...

  • Page 278: Voice Vlan

    Command Guide of WGSW-48040HP snap-8021h SNAP OUI is 8021h group Protocol-based VLAN group commands <grp_id> Group Name (Range: 1 - 16 characters) Default: None Usage Guide: To configure the Protocol-based VLAN Example: To configure the Protocol-based VLAN (below table) Switch# configure terminal Switch (config)# vlan protocol llc 0x55 0x66 group 3 4.2.178 voice vlan...

  • Page 279: Voice Vlan Aging-Time

    Command Guide of WGSW-48040HP 4.2.179 voice vlan aging-time Command: voice vlan aging-time <aging_time> voice Voice appliance attributes vlan Vlan for voice traffic aging-time Set secure learning aging time <AgingTime : 10-10000000> Aging time, 10-10000000 seconds Default: 86400 Usage Guide: To configure the Aging Time of Voice VLAN...

  • Page 280: Voice Vlan Oui

    Command Guide of WGSW-48040HP 4.2.181 voice vlan oui Command: voice vlan oui <oui> [ description <description> ] voice Voice appliance attributes vlan Vlan for voice traffic OUI configuration <oui> OUI value description Set description for the OUI <Description : line32>...

  • Page 281: Web Privilege Group

    Command Guide of WGSW-48040HP Switch# configure terminal Switch (config)# voice vlan vid 66 4.2.183 web privilege group Command: web privilege group <group_name> level { [ cro <cro: 0-15> ] [ crw <crw: 0-15> ] [ sro <sro: 0-15> ] [ srw <srw: 0-15> ] }...

  • Page 282: Copy

    Command Guide of WGSW-48040HP 4.3 copy 4.3.1 copy Command: copy { startup-config | running-config | <source_path> } { startup-config | running-config | <destination_path> } [ syntax-check ] copy Copy from source to destination flash:filename | tftp://server/path-and-filename File in FLASH or on TFTP server...

  • Page 283: Delete

    Command Guide of WGSW-48040HP Example: To configure Description (1233) of Debug Prompt Switch # debug prompt 1233 1233# 4.5 delete 4.5.1 delete Command: delete <path> delete Delete one file in flash: file system <Path : word> Name of file to delete...

  • Page 284: Dir

    Command Guide of WGSW-48040HP rw 1970-01-01 07:26:26 1833 startup-config 2 files, 2481 bytes total. 4.6 dir 4.6.1 dir Command: Directory of all files in flash: file system Default: None Usage Guide: To list directory of file system Example: To list directory of file system...

  • Page 285: Dot1X

    Command Guide of WGSW-48040HP Usage Guide: To exit enable mode Example: To exit enable mode Switch # disable Switch > 4.8 do 4.8.1 do Command: do < exec commands > To run exec commands. Default: Usage Guide: To run exec commands.

  • Page 286: Enable

    Command Guide of WGSW-48040HP dot1x initialize [ interface ( <port_type> [ <plist> ] ) ] dot1x IEEE Standard for port-based Network Access Control initialize Force re-authentication immediately Default: Usage Guide: To re-authenticate specific interface immediately. Example: To re-authenticate specific interface (GigabitEthernet 1/1) immediately.

  • Page 287: Exit

    Command Guide of WGSW-48040HP 4.11 exit 4.11.1 exit Command: exit exit Exit from EXEC mode Default: None Usage Guide: To exit EXEC mode Example: To exit EXEC mode Switch # disable Switch > exit Press ENTER to get started 4.12 firmware 4.12.1 firmware swap...

  • Page 288: Firmware Upgrade

    Command Guide of WGSW-48040HP Switch # firmware swap 4.12.2 firmware upgrade Command: firmware upgrade <tftpserver_path_file> firmware Firmware upgrade/swap upgrade Firmware upgrade <TFTPServer_path_file : word> TFTP Server IP address, path and file name for the server containing the new image. Default:...

  • Page 289: Logout

    Command Guide of WGSW-48040HP Usage Guide: To do DHCP renew for specific VLAN Example: To do DHCP renew for specific VLAN (6) Switch # ip dhcp retry interface vlan 6 4.14 logout 4.14.1 logout Command: logout logout Exit from EXEC mode...
  • Page 290 Command Guide of WGSW-48040HP Default: None Usage Guide: To view the file Example: To view the file (222) Switch # copy running-config flash:222 Building configuration... % Saving 2038 bytes to flash:222 Switch # more flash:222 hostname Switch username admin privilege 15 password none...

  • Page 291: Ping

    Command Guide of WGSW-48040HP Switch# no erps 1 command force port0 4.17 ping 4.17.1 ping ip Command: ping ip <v_ip_addr> [ repeat <count> ] [ size <size> ] [ interval <seconds> ] ping Send ICMP echo messages IP (ICMP) echo <v_ip_addr>...

  • Page 292: Ping Ipv6

    Command Guide of WGSW-48040HP 4.17.2 ping ipv6 Command: ping ipv6 <v_ipv6_addr> [ repeat <count> ] [ size <size> ] [ interval <seconds> ] [ interface vlan <v_vlan_id> ] ping Send ICMP echo messages ipv6 IPv6 (ICMPv6) echo interface Select an interface to configure...

  • Page 293: Reload Defaults

    Command Guide of WGSW-48040HP reload cold reload Reload system cold Reload cold. Default: Usage Guide: To restart the device. Example: To restart the device. Switch# reload cold 4.18.2 reload defaults Command: reload defaults [ keep-ip ] reload Reload system defaults Reload defaults without rebooting.

  • Page 294: Show

    Command Guide of WGSW-48040HP send { * | console 0 | vty <vty_list> } <message> reload Reload system All tty lines console Primary terminal line Virtual terminal Default: Usage Guide: To send message for command line user. Example: To send message ( hi, I will upgrade the firmware, OK? ) for command line user (All).

  • Page 295: Show Access Management

    Command Guide of WGSW-48040HP Usage Guide: To display the AAA services. Example: To display the AAA services Switch # show aaa console : local telnet : local : local http : local 4.20.2 show access management Command: show access management [ statistics | <access_id_list> ]...

  • Page 296: Show Access-List

    Command Guide of WGSW-48040HP 4.20.3 show access-list Command: show access-list [ interface [ ( <port_type> [ <v_port_type_list> ] ) ] ] [ rate-limiter [ <rate_limiter_list> ] ] [ ace statistics [ <ace_list> ] ] show Show running system information access...

  • Page 297: Show Access-List

    Command Guide of WGSW-48040HP GigabitEthernet 1/1 : --------------------- GigabitEthernet 1/1 access-list action is permit GigabitEthernet 1/1 access-list policy ID is 0 GigabitEthernet 1/1 access-list rate limiter ID is disabled GigabitEthernet 1/1 access-list redirect is disabled GigabitEthernet 1/1 access-list logging is disabled...

  • Page 298: Show Access-List Ace-Status

    Command Guide of WGSW-48040HP Switch access-list rate limiter ID 5 is 1 pps Switch access-list rate limiter ID 6 is 1 pps Switch access-list rate limiter ID 7 is 1 pps Switch access-list rate limiter ID 8 is 1 pps...

  • Page 299: Show Aggregation

    Command Guide of WGSW-48040HP loop-protect The ACEs that are configured by Loop Protect module The ACEs that are configured by MEP module The ACEs that are configured by PTP module static The ACEs that are configured by users manually upnp...

  • Page 300: Show Aggregation Mode

    Command Guide of WGSW-48040HP show Show running system information aggregation Aggregation port configuration mode Traffic distribution mode Default: Usage Guide: To display the Aggregation status. Example: To display the Aggregation status. Switch # show aggregation AggrID Name Type Speed Configured Ports...

  • Page 301: Show Clock

    Command Guide of WGSW-48040HP 4.20.8 show clock Command: show clock show Show running system information clock Configure time-of-day clock Default: Usage Guide: To display the system time. Example: To display the system time. Switch # show clock System Time : 2014-01-01T00:25:51+00:00 4.20.9 show clock detail...

  • Page 302: Show Dot1X Statistics

    Command Guide of WGSW-48040HP Daylight Saving Time Mode : Disabled. Daylight Saving Time Start Time Settings : Week: 0 Day: 0 Month: 0 Date: 0 Year: 0 Hour: 0 Minute: 0 Daylight Saving Time End Time Settings : Week: 0...

  • Page 303: Show Dot1X Status

    Command Guide of WGSW-48040HP Switch # show dot1x statistics all interface GigabitEthernet 1/1 GigabitEthernet 1/1 EAPOL Statistics: Rx Total: Tx Total: Rx Response/Id: Tx Request/Id: Rx Response: Tx Request: Rx Start: Rx Logoff: Rx Invalid Type: Rx Invalid Length: GigabitEthernet 1/1 Backend Server Statistics:...

  • Page 304: Show Green-Ethernet

    Command Guide of WGSW-48040HP Switch # show dot1x status GigabitEthernet 1/1 : --------------------- Admin State Port State Last Source Last ID ------------------ --------------------- ----------------- ------------- Force Authorized Globally Disabled Current Radius QOS Current Radius VLAN Current Guest VLAN -------------------- --------------------...

  • Page 305: Show Green-Ethernet Energy-Detect

    Command Guide of WGSW-48040HP 4.20.13 show green-ethernet energy-detect Command: show green-ethernet energy-detect [ interface ( <port_type> [ <port_list> ] ) ] show Show running system information green-ethernet Green ethernet (Power reduction) energy-detect Shows green ethernet energy-detect status for a specific port or ports.

  • Page 306: Show History

    Command Guide of WGSW-48040HP 4.20.15 show history Command: show history show Show running system information history Display the session command history Default: Usage Guide: To display the command history. Example: To display the command history. Switch # show history show green-ethernet interface GigabitEthernet 1/1...

  • Page 307: Show Interface Statistics

    Command Guide of WGSW-48040HP Usage Guide: To display the SFP Transceiver information. Example: To display the SFP Transceiver information for interface GigabitEthernet 1/1. Switch # show interface GigabitEthernet 1/1 capabilities GigabitEthernet 1/1 Capabilities: SFP Type: None SFP Vendor name: SFP Vendor PN: SFP Vendor revision: 4.20.17 show interface <port_type>...

  • Page 308: Show Interface Status

    Command Guide of WGSW-48040HP Interface Rx Octets Tx Octets ---------------------- ------------------ ------------------ GigabitEthernet 1/1 4.20.18 show interface <port_type> <port_type_list> status Command: show interface <port_type> <port_type_list> status show Show running system information interface Interface status and configuration status Display status Default: Usage Guide: To display the port status.

  • Page 309: Show Interface Veriphy

    Command Guide of WGSW-48040HP Default: Usage Guide: To display the VLAN mode. Example: To display the VLAN mode for interface GigabitEthernet 1/1. Switch # show interface GigabitEthernet 1/1 switchport Name: GigabitEthernet 1/1 Administrative mode: access Access Mode VLAN: 1 Trunk Native Mode VLAN: 1...

  • Page 310: Show Interface Veriphy

    Command Guide of WGSW-48040HP Switch # show interface GigabitEthernet 1/1 veriphy Starting VeriPHY - Please wait Interface Pair A Length Pair B, Length ---------------------- ------ ------ ------- ------- GigabitEthernet 1/1 Pair C Length Pair D Length ------ ------ ------ ------- 4.20.21 show interface <port_type>...

  • Page 311: Show Ip Arp

    Command Guide of WGSW-48040HP Command: show interface vlan [ <vlist> ] show Show running system information interface Interface status and configuration vlan VLAN status Default: Usage Guide: To display the MAC address and IP address of specific VLAN. Example: To display the MAC address and IP address for all VLANs.

  • Page 312: Show Ip Arp Inspection

    Command Guide of WGSW-48040HP 4.20.24 show ip arp inspection Command: show ip arp inspection show Show running system information Internet Protocol arp Address Resolution Protocol inspection ARP inspection Default: Usage Guide: To display the ARP Inspection Configuration. Example: To display the ARP Inspection Configuration.

  • Page 313: Show Ip Arp Inspection Entry

    Command Guide of WGSW-48040HP Default: Usage Guide: To display the ARP Inspection Configuration. Example: To display the ARP Inspection Configuration. Switch # show ip arp inspection ARP Inspection Mode : disabled Port Port Mode Check VLAN Log Type ---- ---------...

  • Page 314: Show Ip Dhcp Detailed Statistics

    Command Guide of WGSW-48040HP 4.20.27 show ip dhcp detailed statistics Command: show ip dhcp detailed statistics { server | client | snooping | relay | normal-forward | combined } [ interface ( <port_type> [ <port_list> ] ) ] show Show running system information...

  • Page 315: Show Ip Dhcp Excluded-Address

    Command Guide of WGSW-48040HP Rx Release: Tx Release: Rx Inform: Tx Inform: Rx Lease Query: Tx Lease Query: Rx Lease Unassigned: Tx Lease Unassigned: Rx Lease Unknown: Tx Lease Unknown: Rx Lease Active: Tx Lease Active: Rx Lease Active: Tx Lease Active: Rx Discarded checksum error: 4.20.28 show ip dhcp excluded-address...

  • Page 316: Show Ip Dhcp Pool

    Command Guide of WGSW-48040HP 4.20.29 show ip dhcp pool Command: show ip dhcp pool [ <pool_name> ] show Show running system information Internet Protocol dhcp Dynamic Host Configuration Protocol pool DHCP pools information Default: Usage Guide: To display the DHCP pools information.

  • Page 317: Show Ip Dhcp Relay

    Command Guide of WGSW-48040HP 4.20.30 show ip dhcp relay Command: show ip dhcp relay [ statistics ] show Show running system information Internet Protocol dhcp Dynamic Host Configuration Protocol relay DHCP relay agent configuration statistics Traffic statistics Default: Usage Guide: To display the DHCP relay information.

  • Page 318: Show Ip Dhcp Server Binding (Gg)

    Command Guide of WGSW-48040HP Switch # show ip dhcp server DHCP server is globally disabled. All VLANs are disabled. 4.20.32 show ip dhcp server binding (GG) Command: show ip dhcp server binding [ state { allocated | committed | expired } ] [ type { automatic | manual | expired } ] [ <ip>...

  • Page 319: Show Ip Dhcp Server Declined-Ip (Gg)

    Command Guide of WGSW-48040HP 4.20.33 show ip dhcp server declined-ip (GG) Command: show ip dhcp server declined-ip show Show running system information Internet Protocol dhcp Dynamic Host Configuration Protocol server DHCP server information declined-ip Declined IP address Default: Usage Guide: To display the DHCP Decline information.

  • Page 320: Show Ip Dhcp Snooping

    Command Guide of WGSW-48040HP Database Counters ========================= POOL Excluded IP Declined IP ========================= Binding Counters ========================= Automatic Manual Expired ========================= Message Received Counters ========================= DISCOVER REQUEST DECLINE RELEASE INFORM ========================= Message Sent Counters ========================= OFFER ========================= 4.20.35 show ip dhcp snooping Command: show ip dhcp snooping [interface ( <port_type>...

  • Page 321: Show Ip Dhcp Snooping Table

    Command Guide of WGSW-48040HP interface Select an interface to configure Default: Usage Guide: To display the DHCP Snooping configuration. Example: To display the DHCP Snooping configuration for GigabitEthernet 1/1. Switch # show ip dhcp snooping interface GigabitEthernet 1/1 GigabitEthernet 1/1 untrusted 4.20.36 show ip dhcp snooping table...

  • Page 322: Show Ip Igmp Snooping

    Command Guide of WGSW-48040HP Internet Protocol http Hypertext Transfer Protocol server HTTP web server secure Secure status Status Default: Usage Guide: To display the DHCP Snooping table. Example: To display the DHCP Snooping table. Switch # show ip http server secure status...

  • Page 323: Show Ip Igmp Snooping Mrouter

    Command Guide of WGSW-48040HP Switch # show ip igmp snooping detail IGMP Snooping is disabled to stop snooping IGMP control plane. Multicast streams destined to unregistered IGMP groups will be flooding. 4.20.39 show ip igmp snooping mrouter Command: show ip igmp snooping mrouter [ detail ]...

  • Page 324: Show Ip Name-Server

    Command Guide of WGSW-48040HP interface IP interface status and configuration brief Brief IP interface status Default: Usage Guide: To display the IP interface status. Example: To display the IP interface status. Switch # show ip interface brief Vlan Address Method...

  • Page 325: Show Ip Route

    Command Guide of WGSW-48040HP 4.20.42 show ip route Command: show ip route show Show running system information Internet Protocol route Display the current ip routing table Default: Usage Guide: To display the IP Routing table. Example: To display the IP Routing table.

  • Page 326: Show Ip Ssh

    Command Guide of WGSW-48040HP Example: To display the Static IP Source Guard Table. Switch # show ip source binding interface GigabitEthernet 1/1 Type Port VLAN IP Address IP Mask ---- ---- ---- ---------- ------- Static GigabitEthernet 1/1 1 192.168.0.22 255.255.255.0 4.20.44 show ip ssh...
  • Page 327 Command Guide of WGSW-48040HP Default: Usage Guide: To display the IP statistics. Example: To display the IP statistics. Switch # show ip statistics IPv4 statistics: Rcvd: 9751 total in 1454882 bytes 9606 local destination, 0 forwarding 0 header error, 0 address error, 0 unknown protocol...

  • Page 328: Show Ip Verify Source

    Command Guide of WGSW-48040HP IPv4 ICMP statistics: Rcvd: 2618 Messages, 0 Error Sent: 2618 Messages, 0 Error ICMP message statistics: IPv4 ICMP Message: Echo Reply Rcvd: 0 Packet Sent: 2618 Packets IPv4 ICMP Message: Echo Rcvd: 2618 Packets Sent: 0 Packet 4.20.46 show ip verify source...

  • Page 329: Show Ipmc Profile

    Command Guide of WGSW-48040HP 4.20.47 show ipmc profile Command: show ipmc profile [ <profile_name> ] [ detail ] show Show running system information ipmc IPv4/IPv6 multicast configuration profile IPMC profile configuration <ProfileName : word16> Profile name detail Detail information of a profile...

  • Page 330: Show Ipv6 Interface

    Command Guide of WGSW-48040HP Example: To display the IP Multicast Range. Switch # show ipmc range Range Name Start Address: 224.24.24.24 End Address : 224.24.24.25 4.20.49 show ipv6 interface Command: show ipv6 interface [ vlan <vlan_list> { brief | statistics } ]...

  • Page 331: Show Ipv6 Mld Snooping

    Command Guide of WGSW-48040HP 3 local destination, 0 forwarding 0 header error, 0 address error, 0 unknown protocol 0 no route, 0 truncated, 0 discarded Sent: 17 total in 1104 bytes 17 generated, 0 forwarded 0 discarded Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble)

  • Page 332: Show Ipv6 Mld Snooping Mrouter

    Command Guide of WGSW-48040HP MLD Snooping is disabled to stop snooping MLD control plane. Multicast streams destined to unregistered MLD groups will be flooding. 4.20.51 show ipv6 mld snooping mrouter Command: show ip igmp snooping mrouter [ detail ] show...

  • Page 333: Show Ipv6 Route

    Command Guide of WGSW-48040HP vlan VLAN of IPv6 interface Default: Usage Guide: To display the IPv6 neighbor information. Example: To display the IPv6 neighbor information. Switch # show ipv6 neighbor 2001::7766 via VLAN1: 00-30-4F-00-99-00 Permanent/REACHABLE fe80::201:c1ff:fe00:9900 via VLAN1: 00-30-4F-00-99-00 Permanent/REACHABLE 4.20.53 show ipv6 route...

  • Page 334: Show Ipv6 Statistics

    Command Guide of WGSW-48040HP 4.20.54 show ipv6 statistics Command: show ipv6 statistics [ system ] [ interface vlan <vlan_list> ] [ icmp ] [ icmp-msg <type> ] show Show running system information ipv6 IPv6 configuration commands statistics Traffic statistics icmp...

  • Page 335: Show Lacp

    Command Guide of WGSW-48040HP IP interface statistics: IPv6 Statistics on Interface VLAN: 1 Rcvd: 12 total in 1032 bytes 3 local destination, 0 forwarding 0 header error, 0 address error, 0 unknown protocol 0 no route, 0 truncated, 9 discarded...

  • Page 336: Show Line

    Command Guide of WGSW-48040HP lacp LACP configuration/status internal Internal LACP configuration neighbour Neighbour LACP status statistics Internal LACP statistics system-id LACP system id Default: Usage Guide: To display the LACP mode information. Example: To display the LACP mode information. Switch # show lacp internal...

  • Page 337: Show Link-Oam

    Command Guide of WGSW-48040HP * You are at this line now. Alive from Console. Default privileged level is 2. Command line editing is enabled Display EXEC banner is enabled. Display Day banner is enabled. Terminal width is 80. length is 24.

  • Page 338: Show Lldp Med Media-Vlan-Policy

    Command Guide of WGSW-48040HP PDU stats ----------- Information PDU TX: Information PDU RX: Variable request PDU RX: Variable request PDU TX: Variable response PDU RX: Variable response PDU TX: Loopback PDU RX: Loopback PDU TX: Link Unique event notification PDU TX:...

  • Page 339: Show Lldp Med Remote-Device

    Command Guide of WGSW-48040HP Example: To display the LLDP-MED policy information. Switch # show lldp med media-vlan-policy Policy Id Application Type Vlan ID L2 Priority DSCP Voice Tagged 4.20.59 show lldp med remote-device Command: show lldp med remote-device [ interface ( <port_type> [ <port_list> ] ) ]...

  • Page 340: Show Lldp Statistics

    Command Guide of WGSW-48040HP Default: Usage Guide: To display the LLDP neighbors information. Example: To display the LLDP neighbors information. Switch # show lldp neighbors No LLDP entries found 4.20.61 show lldp statistics Command: show lldp statistics [ interface ( <port_type> [ <port_type_list> ] ) ]...

  • Page 341: Show Logging

    Command Guide of WGSW-48040HP 4.20.62 show logging Command: show logging {<log_id> | error | info | warning } [ switch <switch_list> ] show Show running system information logging Syslog <logging_id: 1-4294967295> Logging ID switch Switch <switch_list> Switch ID list in 1...

  • Page 342: Show Mac Address-Table

    Command Guide of WGSW-48040HP Example: To display the Loop protection information for GigabitEthernet 1/1. Switch # show loop-protect interface GigabitEthernet 1/1 Loop Protection Configuration ====================================== Loop Protection : Enable Transmission Time : 2 sec Shutdown Time : 2 sec GigabitEthernet 1/1 ------------------------------ Loop protect mode is enabled.

  • Page 343: Show Mep

    Command Guide of WGSW-48040HP Default: Usage Guide: To display the MAC address table. Example: To display the MAC address table for VLAN 1. Switch # show mac address-table vlan 1 Type VID MAC Address Ports Static 1 33:33:00:00:00:01 GigabitEthernet 1/1-25 10GigabitEthernet 1/1-4 CPU...

  • Page 344: Show Mvr

    Command Guide of WGSW-48040HP Usage Guide: To display the MEP information. Example: To display the MEP instance 1 information. Switch # show mep 1 MEP state is: Inst cLevel cMeg cMep cAis cLck cSsf aBlk aTsf 1 False False False False False True False True 4.20.66 show mvr...

  • Page 345: Show Network-Clock

    Command Guide of WGSW-48040HP IGMP MVR VLAN 1 (Name is 1) interface is enabled. Querier status is IDLE RX IGMP Query:0 V1Join:0 V2Join:0 V3Join:0 V2Leave:0 TX IGMP Query:0 / (Source) Specific Query:0 Interface Channel Profile: <No Associated Profile> Switch-1 MVR-MLD Interface Status MLD MVR VLAN 1 (Name is 1) interface is enabled.

  • Page 346: Show Ntp Status

    Command Guide of WGSW-48040HP LOL: FALSE DHOLD: TRUE SSM State is: Interface Tx SSM Rx SSM Mode GigabitEthernet 1/1 QL_NONE QL_LINK Master 4.20.68 show ntp status Command: show ntp status show Show running system information Configure NTP status status Default: Usage Guide: To display the NTP Server information.

  • Page 347: Show Platform Phy Failover

    Command Guide of WGSW-48040HP show Show running system information platform Platform specific information PHYs' information interface Search by port Default: Usage Guide: To display the PHY information. Example: To display the PHY information for GigabitEthernet 1/1. Switch # show platform phy interface GigabitEthernet 1/1...

  • Page 348: Show Platform Phy Id

    Command Guide of WGSW-48040HP 4.20.71 show platform phy id Command: show platform phy id [ interface ( <port_type> [ <port_type_list> ] ) ] show Show running system information platform Platform specific information PHYs' information interface Search by port Default: Usage Guide: To display the PHY ID.

  • Page 349: Show Port-Security Port

    Command Guide of WGSW-48040HP Switch # show platform phy status interface GigabitEthernet 1/1 Port Issues seen during 1G PHY warmstart Issues during 10G PHY WS ---- ----------------------------------- ------------------------ 4.20.73 show port-security port Command: show port-security port [ interface ( <port_type> [ <port_type_list> ] ) ]...

  • Page 350: Show Privilege

    Command Guide of WGSW-48040HP interface Search by port Default: Usage Guide: To display the status of Port Security. Example: To display the status of Port Security. Switch # show port-security switch interface GigabitEthernet 1/1 Users: L = Limit Control 8 = 802.1X...
  • Page 351 Command Guide of WGSW-48040HP Command: show ptp <clockinst> { default | current | parent | time-property | filter | servo | clk | ho | uni | master-table-unicast | slave | { { port-state | port-ds | wireless | foreign-master-record } [ interface ( <port_type> [ <port_type_list> ] ) ] } }...

  • Page 352: Show Ptp Local-Clock

    Command Guide of WGSW-48040HP --------- --------- ----------------- ----- ---- Ethernet False False 4.20.77 show ptp <clockinst> local-clock Command: show ptp <clockinst> local-clock show Show running system information Precision time Protocol (1588) <Clockinst : 0-3> Show various PTP data local-clock Show local clock current time...

  • Page 353: Show Ptp Slave-Table-Unicast

    Command Guide of WGSW-48040HP Example: To display the slave lock configuration for PTP instance 0. Switch # show ptp 0 slave-cfg Stable Offset Offset Ok Offset Fail ------------- ------------- ----------- 1000 1000 3000 4.20.79 show ptp <clockinst> slave-table-unicast Command: show ptp <clockinst> slave-table-unicast...

  • Page 354: Show Pvlan

    Command Guide of WGSW-48040HP Default: Usage Guide: To display the external clock output configuration. Example: To display the external clock output configuration. Switch # show ptp ext PTP External One PPS mode: Output, Clock output enabled: True, frequency : 1, VCXO enable: True 4.20.81 show pvlan...

  • Page 355: Show Qos

    Command Guide of WGSW-48040HP pvlan PVLAN configuration isolation show isolation configuration interface Search by port Default: Usage Guide: To display the port isolation configuration. Example: To display the port isolation configuration. Switch # show pvlan isolation Port Isolation -------------------------------- ---------...
  • Page 356 Command Guide of WGSW-48040HP Usage Guide: To display the QoS configuration. Example: To display the QoS configuration for GigabitEthernet 1/1. Switch # show qos interface GigabitEthernet 1/1 interface GigabitEthernet 1/1 qos cos 0 qos pcp 0 qos dpl 0 qos dei 0...

  • Page 357: Show Radius-Server

    Command Guide of WGSW-48040HP qos queue-shaper queue 2 mode: disabled, rate: 500 kbps, excess: disabled qos queue-shaper queue 3 mode: disabled, rate: 500 kbps, excess: disabled qos queue-shaper queue 4 mode: disabled, rate: 500 kbps, excess: disabled qos queue-shaper queue 5 mode: disabled, rate: 500 kbps, excess: disabled...

  • Page 358: Show Rmon Alarm

    Command Guide of WGSW-48040HP Default: Usage Guide: To display the RADIUS Server configuration. Example: To display the RADIUS Server configuration. Switch # show radius-server Global RADIUS Server Timeout : 5 seconds Global RADIUS Server Retransmit : 3 times Global RADIUS Server Deadtime...

  • Page 359: Show Rmon Event

    Command Guide of WGSW-48040HP SampleType : deltaValue Value Startup : risingOrFallingAlarm RisingThrld FallingThrld RisingEventIndex : 2 FallingEventIndex : 1 4.20.86 show rmon event Command: show rmon event [ <id_list> ] show Show running system information rmon RMON statistics event Display the RMON event table...

  • Page 360: Show Rmon Statistics

    Command Guide of WGSW-48040HP rmon RMON statistics history Display the RMON history table Default: Usage Guide: To display the RMON History configuration. Example: To display the RMON History ID 1 configuration. Switch # show rmon history 1 History ID :...

  • Page 361: Show Running-Config

    Command Guide of WGSW-48040HP Data Source : .1.3.6.1.2.1.2.2.1.1.5 etherStatsDropEvents etherStatsOctets : 10221727 etherStatsPkts : 127086 etherStatsBroadcastPkts : 45280 etherStatsMulticastPkts : 70008 etherStatsCRCAlignErrors etherStatsUndersizePkts etherStatsOversizePkts etherStatsFragments etherStatsJabbers etherStatsCollisions etherStatsPkts64Octets : 26017 etherStatsPkts65to127Octets : 101063 etherStatsPkts128to255Octets : 5 etherStatsPkts256to511Octets : 1 etherStatsPkts512to1023Octets : 0 etherStatsPkts1024to1518Octets: 0 4.20.89 show running-config...
  • Page 362 Command Guide of WGSW-48040HP line Show line settings console Console Default: Usage Guide: To display the running-config. Example 1: To display the running-config. Switch # show running-config Building configuration... username admin privilege 15 password none loop-protect loop-protect transmit-time 2 loop-protect shutdown-time 2...

  • Page 363: Show Snmp

    Command Guide of WGSW-48040HP 4.20.90 show snmp Command: show snmp show Show running system information snmp Display SNMP configurations Default: Usage Guide: To display the SNMP information. Example: To display the SNMP information Switch # show snmp SNMP Configuration SNMP Mode...
  • Page 364 Command Guide of WGSW-48040HP SNMPv3 Groups Table; Security Model : v1 Security Name : public Group Name : default_ro_group Security Model : v1 Security Name : private Group Name : default_rw_group Security Model : v2c Security Name : public Group Name...

  • Page 365: Show Snmp Access

    Command Guide of WGSW-48040HP View Type : included 4.20.91 show snmp access Command: show snmp access [ <group_name> { v1 | v2c | v3 | any } { auth | noauth | priv } ] show Show running system information...

  • Page 366: Show Snmp Community V3

    Command Guide of WGSW-48040HP 4.20.92 show snmp community v3 Command: show snmp community v3 [ <community> ] show Show running system information snmp Display SNMP configurations community Community SNMPv3 <Community : word127> Specify community name Default: Usage Guide: To display the SNMPv3 Community information.

  • Page 367: Show Snmp Mib Context

    Command Guide of WGSW-48040HP Default: Usage Guide: To display the SNMP Host information. Example: To display the SNMP Host information Switch # show snmp host Trap Global Mode: Disabled 4.20.94 show snmp mib context Command: show snmp mib context show...
  • Page 368 Command Guide of WGSW-48040HP IEEE8021-PAE-MIB : - ieee8021paeMIB (.1.0.8802.1.1.1.1) IEEE8023-LAG-MIB : - lagMIBObjects (.1.2.840.10006.300.43.1) IF-MIB : - ifMIB (.1.3.6.1.2.1.31) IP-FORWARD-MIB : - ipForward (.1.3.6.1.2.1.4.24) IP-MIB : - ipv4InterfaceTable (.1.3.6.1.2.1.4.28) - ipv6InterfaceTable (.1.3.6.1.2.1.4.30) - ipTrafficStats (.1.3.6.1.2.1.4.31) - ipAddressTable (.1.3.6.1.2.1.4.34) - ipNetToPhysicalTable (.1.3.6.1.2.1.4.35) - ipv6ScopeZoneIndexTable (.1.3.6.1.2.1.4.36)

  • Page 369: Show Snmp Mib Ifmib Ifindex

    Command Guide of WGSW-48040HP - tcp (.1.3.6.1.2.1.6) - udp (.1.3.6.1.2.1.7) RMON-MIB : - statistics (.1.3.6.1.2.1.16.1) - history (.1.3.6.1.2.1.16.2) - alarm (.1.3.6.1.2.1.16.3) - event (.1.3.6.1.2.1.16.9) SMON-MIB : - switchRMON (.1.3.6.1.2.1.16.22) SNMP-FRAMEWORK-MIB : - snmpEngine (.1.3.6.1.6.3.10.2.1) SNMP-MPD-MIB : - dot1dTpHCPortTable (.1.3.6.1.2.1.17.4.5) - snmpMPDStats (.1.3.6.1.6.3.11.2.1) SNMP-USER-BASED-SM-MIB : - usmStats (.1.3.6.1.6.3.15.1.1)

  • Page 370: Show Snmp Security-To-Group

    Command Guide of WGSW-48040HP Switch # show snmp mib ifmib ifIndex ifIndex ifDescr Interface ---------- ------------------------------------- --------- 1 Switch 1 - Port 1 GigabitEthernet 1/1 2 Switch 1 - Port 2 GigabitEthernet 1/2 3 Switch 1 - Port 3 GigabitEthernet 1/3...

  • Page 371: Show Snmp User

    Command Guide of WGSW-48040HP show snmp security-to-group [ { v1 | v2c | v3 } <security_name> ] show Show running system information snmp Display SNMP configurations security-to-group security-to-group configuration v1 security model v2c security model v3 security model <SecurityName : word32>...

  • Page 372: Show Snmp View

    Command Guide of WGSW-48040HP Command: show snmp user [ <username> <engineID> ] show Show running system information snmp Display SNMP configurations user User <Username : word32> Security user name <Engiedid : word10-32> Security Engine ID Default: Usage Guide: To display the SNMP User information.

  • Page 373: Show Spanning-Tree

    Command Guide of WGSW-48040HP Example: To display the SNMP viewer information. Switch # show snmp view View Name : default_view OID Subtree : .1 View Type : included 4.20.99 show spanning-tree Command: show spanning-tree summary active interface <port_type> [ <port_type_list> ] ) } | { detailed [ interface ( <port_type> [ <port_type_list> ] ) ] } | configuration <instance>...

  • Page 374: Show Switchport Forbidden

    Command Guide of WGSW-48040HP Regional Root: 32768. 00-30-4F-00-99-00 Int. PathCost: 0 Max Hops : 20 TC Flag : Steady TC Count TC Last Port Port Role State Pri PathCost Edge P2P Uptime --------- -------------- ---------- --- -------- ---- --- ------------- 4.20.100 show switchport forbidden...

  • Page 375: Show Terminal

    Command Guide of WGSW-48040HP Default: Usage Guide: To display the TACACS+ Server configuration. Example: To display the TACACS+ Server configuration. Switch # show tacacs-server Global TACACS+ Server Timeout : 5 seconds Global TACACS+ Server Deadtime : 0 minutes Global TACACS+ Server Key No hosts configured! 4.20.102 show terminal...

  • Page 376: Show Upnp

    Command Guide of WGSW-48040HP exec-timeout is 10 min 0 second. Current session privilege is 15. Elapsed time is 0 day 1 hour 12 min 15 sec. Idle time is 0 day 0 hour 0 min 0 sec. 4.20.103 show upnp...

  • Page 377: Show Version

    Command Guide of WGSW-48040HP Example: To display the user status for all. Switch # show users Line is con 0. * You are at this line now. Connection is from Console. User name is admin. Privilege is 15. Elapsed time is 0 day 1 hour 20 min 49 sec.

  • Page 378: Show Vlan

    Command Guide of WGSW-48040HP System Location : System Time : 1970-01-01T22:56:08+00:00 System Uptime : 22:56:08 Active Image ------------ Image : managed Version : 000 Date : 2013-12-06T15:22:03+01:00 Alternate Image --------------- Image : managed.bk Version : 000 Date : 2013-10-02T15:15:04+02:00 Product...

  • Page 379: Show Vlan Ip-Subnet

    Command Guide of WGSW-48040HP Switch # show vlan VLAN Name Interfaces ---- -------------------------------- ---------- default Gi 1/1-25 10G 1/1-4 4.20.107 show vlan ip-subnet Command: show vlan ip-subnet [ id <subnet_id> ] show Show running system information vlan VLAN status ip-subnet...

  • Page 380: Show Vlan Protocol

    Command Guide of WGSW-48040HP Default: Usage Guide: To display the MAC-based VLAN information. Example: To display the MAC-based VLAN information. Switch # show vlan mac MAC Address Interfaces ----------- ---------- 00-40-55-00-00-00 1 GigabitEthernet 1/1 4.20.109 show vlan protocol Command: show vlan protocol [ eth2 { <etype> | arp | ip | ipx | at } ] [ snap { <oui> | rfc-1042 | snap-8021h } <pid>...

  • Page 381: Show Voice Vlan

    Command Guide of WGSW-48040HP To display the Protocol-based VLAN information. Example: To display the Protocol-based VLAN information. Switch # show vlan protocol Protocol Type Protocol (Value) Group ID ------------- ------------------------ -------- LLC_SNAP OUI-00:e0:2b; PID:0x1 Switch 1 --------- Group ID Ports...

  • Page 382: Show Web Privilege Group

    Command Guide of WGSW-48040HP GigabitEthernet 1/1 switchport voice vlan mode is auto GigabitEthernet 1/1 switchport voice security is disabled GigabitEthernet 1/1 switchport voice discovery protocol is oui 4.20.111 show web privilege group Command: show web privilege group [ <group_name> ] level...

  • Page 383: Terminal

    Command Guide of WGSW-48040HP 5 10 5 10 Green_Ethernet 5 10 5 10 5 10 5 10 IPMC_Snooping 5 10 5 10 LACP 5 10 5 10 LLDP 5 10 5 10 Loop_Protect 5 10 5 10 MAC_Table 5 10...

  • Page 384: Terminal Exec-Timeout

    Command Guide of WGSW-48040HP editing Enable command line editing Default: Enabled Usage Guide: To enable editing mode for current terminal session. Example: To enable editing mode for current terminal session. Switch # terminal editing 4.21.2 terminal exec-timeout Command: terminal exec-timeout <min> [ <sec> ]...

  • Page 385: Terminal Length

    Command Guide of WGSW-48040HP size Set history buffer size <history_size> Number of history commands, 0 means disable Default: Usage Guide: To configure history buffer side for current terminal session. Example: To configure history buffer side with 20 lines for current terminal session.
  • Page 386 Command Guide of WGSW-48040HP terminal Set terminal line parameters width Set width of the display terminal <lines:0 or 40-512> Number of characters on a screen line (0 for unlimited width) Default: Usage Guide: To configure width of command display for current terminal session.
