CAPA84R Capa Board

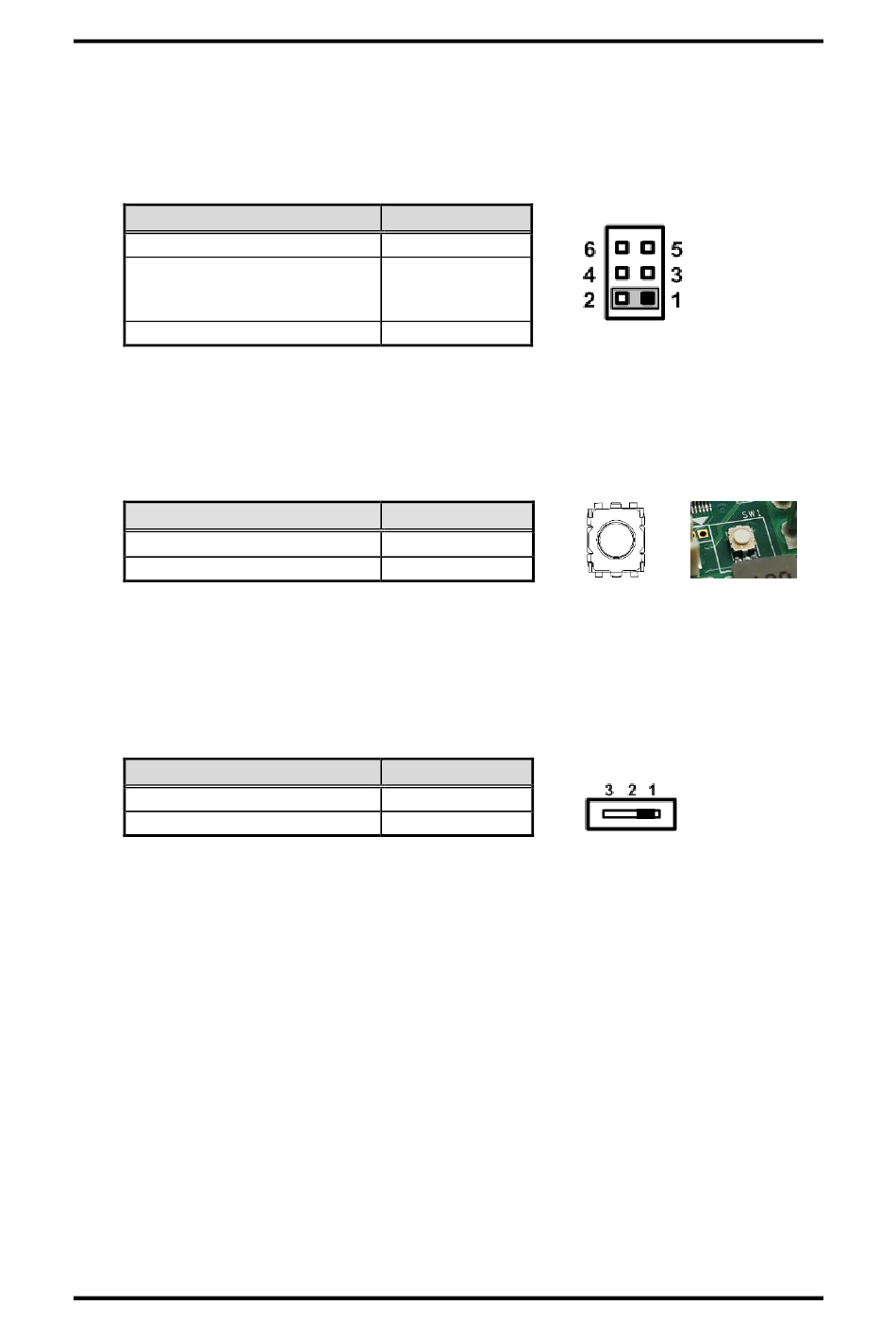

2.3.1

LVDS Voltage Selection (JP1)

This is a 2x3-pin (pitch=2.0mm) jumper. The board supports voltage selection for flat
panel displays. Use JP1 to set LVDS connector (CN18) pin 1~6 VCCM to +3.3V, +5V or
+12V voltage level. To prevent hardware damage, before connecting please make sure
that input voltage of the flat panel is correct.
Function
+3.3V level (Default)
+5V level
+12V level
2.3.2

Restore BIOS Optimal Defaults (SW1)

Use SW1 to clear CMOS. Press the tact switch for at least 1 second to restore BIOS
optimal defaults.
Function
Normal (Default)
Restore BIOS optimal defaults
2.3.3

Auto Power On (SW2)

If SW2 is enabled for power input, the system will be automatically power on without
pressing soft power button. If SW2 is disabled for power input, it is necessary to
manually press soft power button to power on the system.
Function
Disable auto power on (Default)
Enable auto power on
10
Setting
1-2 close
2-4 close
Or
4-6 close
5-6 close
Setting
Release
Press
Setting
1-2 close
2-3 close
Board and Pin Assignments
