Installation
Entrained air or gas bubbles in the measuring tube can result in an increase in measuring errors.
Therefore, avoid the following mounting locations in the pipe installation:
• Highest point of a pipeline. Risk of air accumulating.
• Directly upstream of a free pipe outlet in a vertical pipeline.
Mounting location
Notwithstanding the above, the installation proposal below permits installation in an open vertical
pipeline. Pipe restrictions or the use of an orifice with a smaller cross-section than the nominal
diameter prevent the sensor running empty while measurement is in progress.

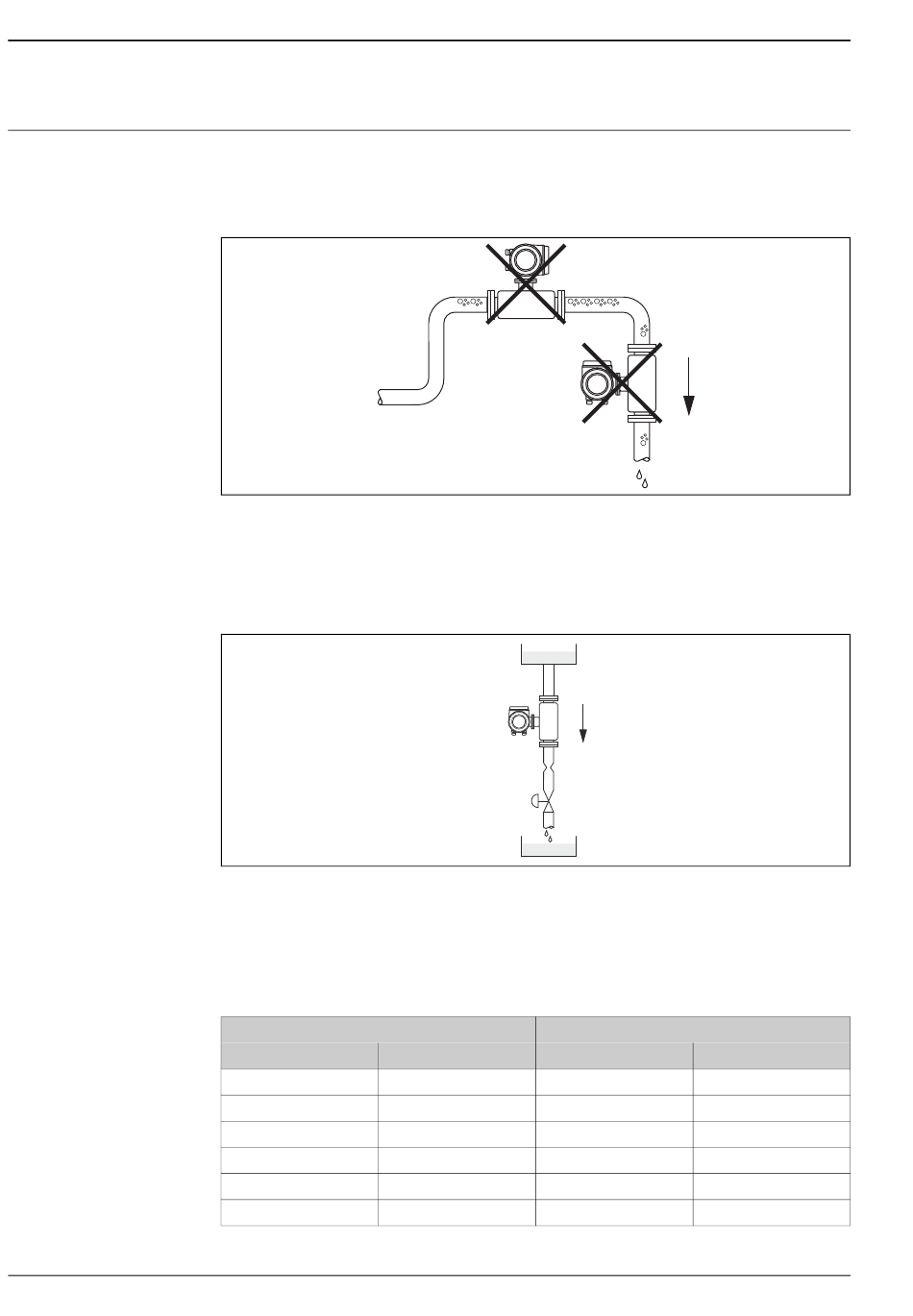

Installation in a down pipe (e.g. for batching applications)
1
Supply tank
2
Sensor
3
Orifice plate, pipe restriction (see Table following page)
4
Valve
5
Batching tank
DN
[mm]
8
15
25
40
50
80
1
2
3
4
5
⌀ Orifice plate, pipe restriction
[in]
[mm]
³⁄₈
6
½
10
1
14
1½
22
2
28
3
50
Proline Promass 40E
a0003605
a0003597
[in]
0.24
0.40
0.55
0.87
1.10
2.00
