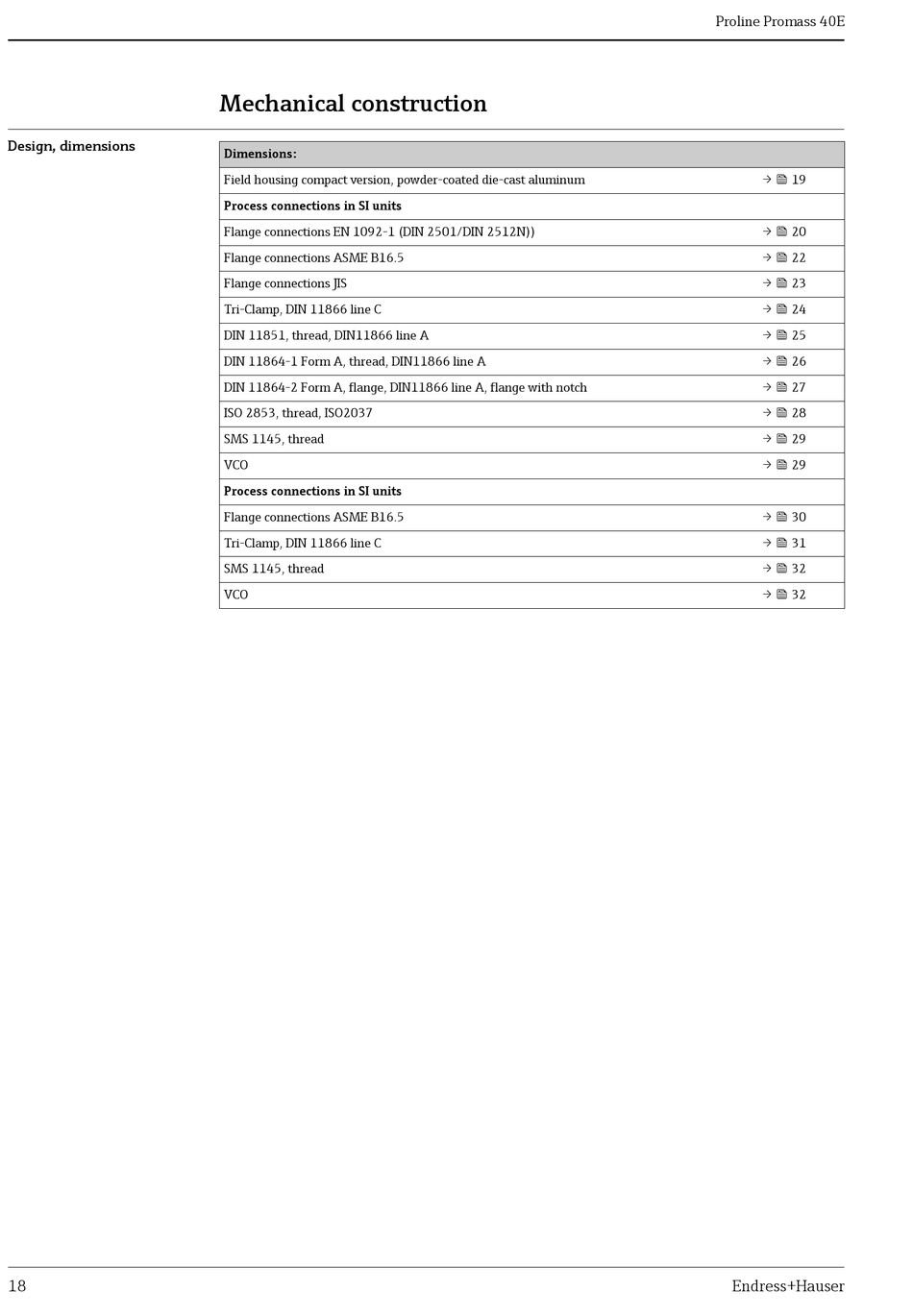

Mechanical construction

Dimensions:
Field housing compact version, powder-coated die-cast aluminum
Process connections in SI units
Flange connections EN 1092-1 (DIN 2501/DIN 2512N))
Flange connections ASME B16.5
Flange connections JIS
Tri-Clamp, DIN 11866 line C
DIN 11851, thread, DIN11866 line A
DIN 11864-1 Form A, thread, DIN11866 line A
DIN 11864-2 Form A, flange, DIN11866 line A, flange with notch
ISO 2853, thread, ISO2037
SMS 1145, thread
VCO
Process connections in SI units
Flange connections ASME B16.5
Tri-Clamp, DIN 11866 line C
SMS 1145, thread
VCO
Proline Promass 40E
→  19
→  20
→  22
→  23
→  24
→  25
→  26
→  27
→  28
→  29
→  29
→  30
→  31
→  32
→  32
