Endress+Hauser Proline Promass 40E Technical Information page 28

28

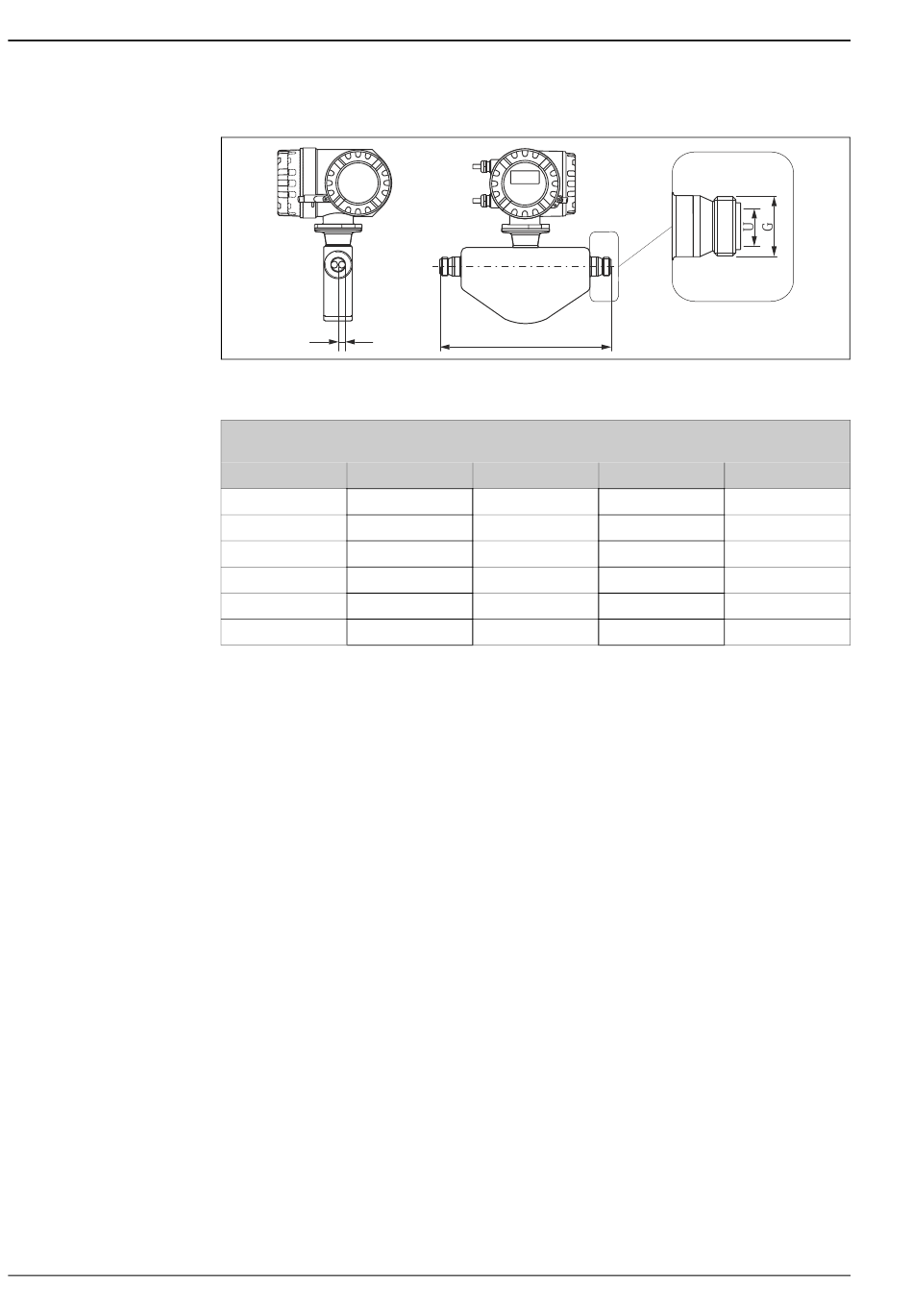

ISO 2853, thread, ISO2037
di
Dimension in mm (in)
ISO 2853, thread, ISO2037: 1.4404 (316/316L)
Order code for "Process connection", option FJW
DN
8
15
25
40
50
80
1)
Max. thread diameter to ISO 2853 Annex A
3A version, Ra ≤ 0.8 μm (150 grit): order code for "Process connection", option FJA
All dimensions in [mm]
E
+1.5 (+0.06)
L
–2.0 (–0.08)
G 1) L
37.13 229
37.13 273
37.13 324
50.68 456
64.16 562
91.19 672
Proline Promass 40E
A0021290
U di
22.6 5.35
22.6 8.30
22.6 12.0
35.6 17.6
48.6 26.0
72.9 40.5
