Terminal assignment

Supply voltage

Power consumption

Power supply failure

Electrical connection

Potential equalization

Cable entries

6

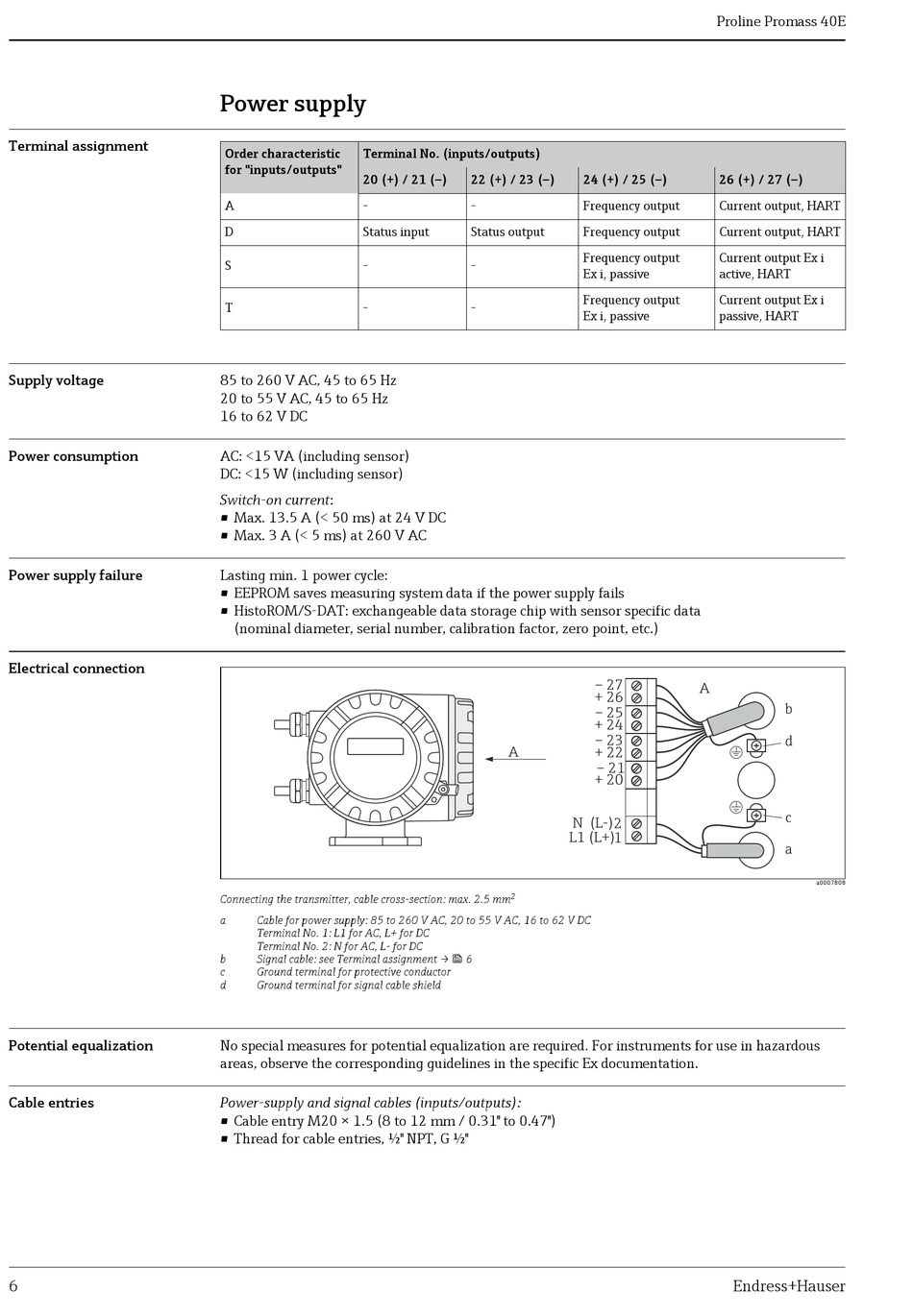

Power supply

Order characteristic Terminal No. (inputs/outputs)
for "inputs/outputs"
20 (+) / 21 (–)
A -
D Status input
S -
T -
85 to 260 V AC, 45 to 65 Hz
20 to 55 V AC, 45 to 65 Hz
16 to 62 V DC
AC: <15 VA (including sensor)
DC: <15 W (including sensor)
Switch-on current:
• Max. 13.5 A (< 50 ms) at 24 V DC
• Max. 3 A (< 5 ms) at 260 V AC
Lasting min. 1 power cycle:
• EEPROM saves measuring system data if the power supply fails
• HistoROM/S-DAT: exchangeable data storage chip with sensor specific data
(nominal diameter, serial number, calibration factor, zero point, etc.)
Connecting the transmitter, cable cross-section: max. 2.5 mm
a Cable for power supply: 85 to 260 V AC, 20 to 55 V AC, 16 to 62 V DC
Terminal No. 1: L1 for AC, L+ for DC
Terminal No. 2: N for AC, L- for DC
b Signal cable: see Terminal assignment →  6
c Ground terminal for protective conductor
d Ground terminal for signal cable shield
No special measures for potential equalization are required. For instruments for use in hazardous
areas, observe the corresponding guidelines in the specific Ex documentation.
Power-supply and signal cables (inputs/outputs):
• Cable entry M20 × 1.5 (8 to 12 mm / 0.31" to 0.47")
• Thread for cable entries, ½" NPT, G ½"
22 (+) / 23 (–) 24 (+) / 25 (–)
- Frequency output
Status output Frequency output
Frequency output
-
Ex i, passive
Frequency output
-
Ex i, passive
– 27
+ 26
– 25
+ 24
– 23
A + 22
– 21
+ 20
N (L-)
2
L1 (L+) 1
2
Proline Promass 40E
26 (+) / 27 (–)
Current output, HART
Current output, HART
Current output Ex i
active, HART
Current output Ex i
passive, HART
A
b
d
c
a
a0007808
