PVED-CLS startup guide

Parameter setting

PVED-CLS WAS calibration

Danfoss | October 2018

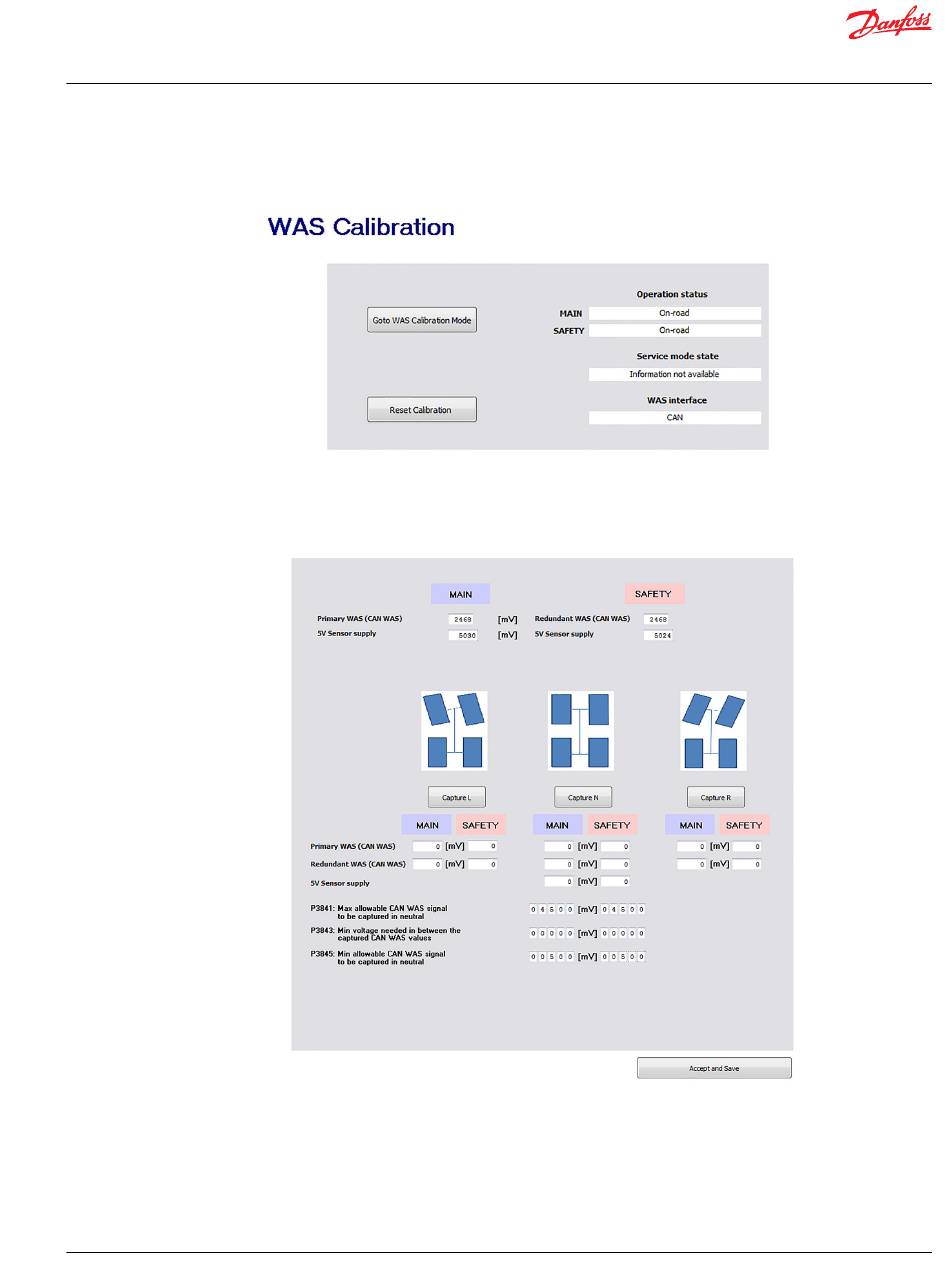

Navigate to the WAS calibration section via System Navigator > Auto-Calibration > WAS Calibration

1. Select Go to WAS calibration mode

2. Steer left, straight (neutral) and right (in any order) using the steering wheel and press the

appropriate button when wheels are at the desired angle.

3. Press Accept and save

Values will automatically change in either the Analog Sensor Calibration Data or CAN WAS Calibration

Data page, based on which type of WAS was selected in the Peripherals configuration.

AB285975085591en-000101 | 17
