Installation guide
Electronic superheat controller
Type EKE 1A (PV05)
Introduction
Superheat controller EKE 1A is for use where superheat must be accurately controlled,
typically in commercial air conditioning, Commercial and industrial heat pumps, Commercial
refrigeration, food retailing and industrial applications.
Compatible valves: Danfoss ETS 6, ETS 8M (Bipolar) / ETS / ETS Colibri® / ETS L, KVS / KVS
Colibri® and CCM / CCMT / CCMT L / CTR valves.
Reference: For details please see EKE data sheet.

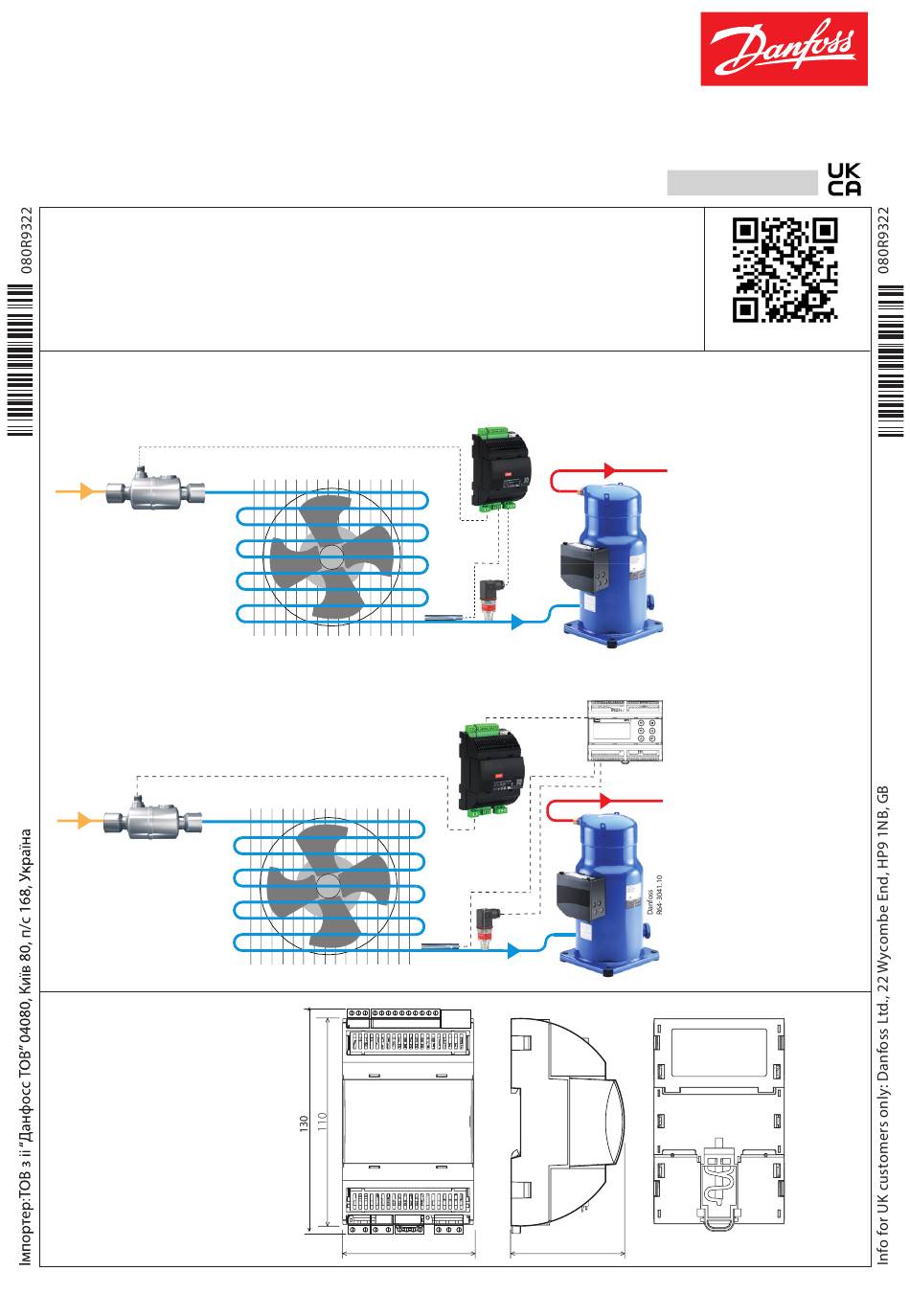

Applications
1. Superheat controller: standalone
ETS Colib ri®
2. Valve driver
ETS Colib ri®
Dimensions EKE 1A
Weight: 152 gram
© Danfoss | Climate Solutions | 2024.03
S2
Pe
Reference signal
Reference signal
S2
Pe
CAN RJ
70
60
ENGINEERING
T O M O R R O W
English
More info
Danfoss
Danfoss
R64-3033.10
R64-3033.10
Danfoss
80G8215.11
AN232086439413en-000706 | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PV05 and is the answer not in the manual?

Questions and answers

Related Manuals for Danfoss PV05

Summary of Contents for Danfoss PV05

  • Page 1 Commercial and industrial heat pumps, Commercial refrigeration, food retailing and industrial applications. Compatible valves: Danfoss ETS 6, ETS 8M (Bipolar) / ETS / ETS Colibri® / ETS L, KVS / KVS Colibri® and CCM / CCMT / CCMT L / CTR valves.
  • Page 2 Normally Closed: 2 A General purpose, 250 V AC, 100 k cycle Stepper valves: A1, A2, A3, A4 Bipolar stepper motor output: - Danfoss ETS 8M (Bipolar) / ETS C / ETS L / KVS / KVS C / CCMT 2 – CCMT 42 / CCMT L / CTR Valves Stepper...
  • Page 3 Danfoss does not assume any liability for damages, injuries, or adverse consequences (“damage”) resulting from the incorrect or improper use of the product and you agree to indemnify Danfoss for any such damage resulting from your incorrect or improper use of the product.
  • Page 4 ANALOG / DIGITAL INPUT CAN - RJ CAN RJ CAN RJ Superheat controller Superheat controller EKE 1A - 080G5300 STEPPER VALVE DIGITAL OUTPUT PWR 24V Vbat STEPPER VALVE DIGITAL OUTPUT AN232086439413en-000706 | 4 © Danfoss | Climate Solutions | 2024.03...
  • Page 5 Normally open or 2.5 A Batt normally closed backup T fuse (optional) (optional) (optional) ETS 6 valve ON/OFF Alarm solenoid valve ETS / KVS Colibri ® CCMT / CTR valve AN232086439413en-000706 | 5 © Danfoss | Climate Solutions | 2024.03...
  • Page 6 CAN RJ CAN RJ Superheat controller Superheat controller Superheat controller Superheat controller Superheat controller Superheat controller EKE 1x - 080G5xxx EKE 1x - 080G5xxx EKE 1x - 080G5xxx Power supply AN232086439413en-000706 | 6 © Danfoss | Climate Solutions | 2024.03...
  • Page 7 Separate the sensor and digital input cables as much as possible (at least 10 cm) from the power cables to the loads to avoid possible electromagnetic disturbance. Never lay power cables and probe cables in the same conduits (including those in the electrical panels). AN232086439413en-000706 | 7 © Danfoss | Climate Solutions | 2024.03...
  • Page 8 • The stepper motor is connected to the “Stepper Valve” terminals (see terminal assignment) with a standard M12 connection cable. • To con gure stepper motor valves other than Danfoss stepper motor valves, the correct valve parameters must be set as described in the Valve con guration section (see manual for details).

  • Page 9: Led Indication

    • Place cable holder close to MMIMYK to keep USB connector rmly in place. • Keep USB cable length < 1 m. • Place MMIMYK and route USB cable far from noise sources (inverter, motors, contactors etc.) AN232086439413en-000706 | 9 © Danfoss | Climate Solutions | 2024.03...
  • Page 10 Note: Setup and service menu requires login with the default password 100 ( daily use), 200 (service use) or 300 (commissioning use). Long press Enter key to access login menu. AN232086439413en-000706 | 10 © Danfoss | Climate Solutions | 2024.03...

  • Page 11: Status Menu

    Setup wizard via MMIGRS2 display When all connections to the controller have been made, after the power is switched on, the Danfoss logo will appear for 5 seconds, then the Home screen will be displayed. To access the Wizard: press and hold enter to access the Login screen, the commissioning password is 300, scroll down the Setup and service menu and select “Setup wizard”.
  • Page 12 The setting will depend on the system requirement. Parameter: R012 Main Switch Select valve type Select prede ned Danfoss valve type ETS, ETS C, KVS, KVS C, CCM, CCMT, CTR, or user de ned. Parameter: I067 Valve con guration Application mode...
  • Page 13 Range 2 – 9 K N116 SH ref. delta temp. factor ( %) Range 20 – 100 For a detailed parameter list and explanation, please check the EKE data sheet. AN232086439413en-000706 | 13 © Danfoss | Climate Solutions | 2024.03...

  • Page 14: For Your Own Notes

    For your own notes AN232086439413en-000706 | 14 © Danfoss | Climate Solutions | 2024.03...

  • Page 15: Related Products

    M12 cable ACCCBI cables for MMI display and gateway. EKE is compatible with Danfoss stepper M12 Angle cable to connect motor valves i.e Danfoss ETS 6, ETS, KVS, Danfoss stepper motor valve and ETS Colibri®, KVS colibri®, CTR, CCMT EKE controller AN232086439413en-000706 | 15 ©...
