PVED-CLS startup guide
Parameter setting
Parameter
Conditions for value change
P3690
Set to desired flow limit [1000 = 100%] at 0 km/h (see graph below)
P3692
Set to desired flow limit (y-axis) at desired vehicle speed in km/h (P3696)
P3694
Set to desired flow limit (y-axis) at desired vehicle speed in km/h (P3697)
P3696
Set to desired vehicle speed in km/h (x-axis) at desired flow limit (P3692)
P3697
Set to desired vehicle speed in km/h (x-axis) at desired flow limit (P3694)
©
Danfoss | October 2018
PVED-CLS AUX— flow limitation
AUX Flow Limitation is used with Open Loop Joysticks to restrict the maximum flow to steering cylinders
as the vehicle speed increases. This function scales all joystick flow commands based on vehicle speed.
Don't set flow limit below 200 (20%). See Section 11.9 Open Loop Joystick – Vehicle Speed Dependent
Flow Scaling in the User Manual for more info.

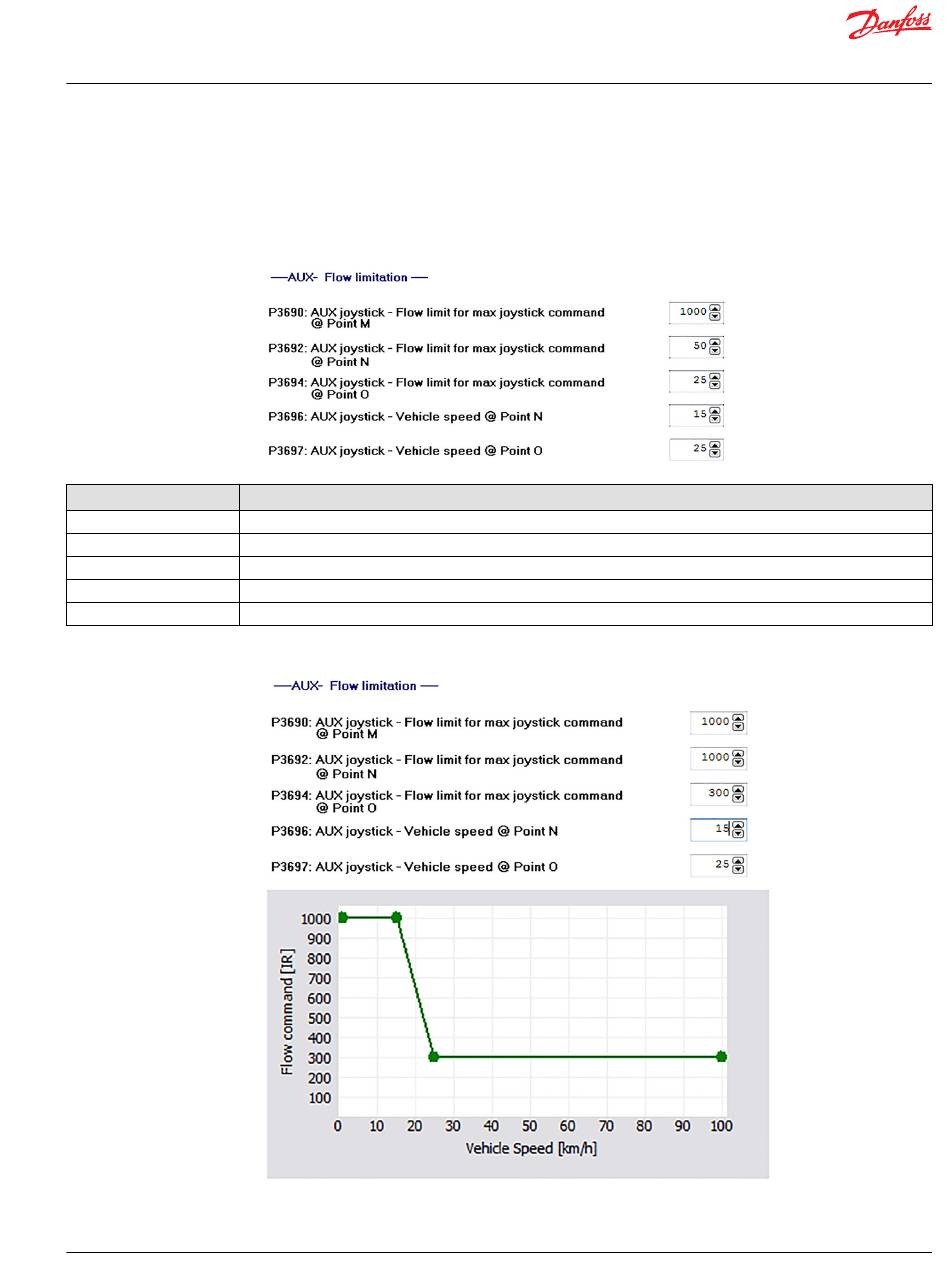

Example of AUX flow limitation
AB285975085591en-000101 | 29
