Installation Guide
Electrical Actuating Module
PVE series 4 for PVG 120
Oliestrømmens retning for
standard monterede grupper.
Oil flow direction for standard
assembled groups.
Richtung des Ölstroms für
Standard-Baugruppen.
Sens du débit pour ensembles
standard.
Hirschmann-version
on/off
Hirschmann-version
proportional
© Danfoss A/S, 2014-03
PVEH
PVEO
Signal voltage (A or B)
Function
A (pin 1)
Neutral
0
Q: P -> A
U
DC
Q: P -> B
0
Function
Signal voltage (U
Neutral
U
(pin 2) = 0.5 • U
S
Q: P -> A
U
(pin 2) = (0.5 -> 0.25) • U
S
Q: P -> B
U
(pin 2) = (0.5 -> 0.75) • U
S
520L0403 • Rev CB • Mar 2014
A
B
B
B (pin 2)
0
0
U
DC
)
S
DC
DC
DC
P
A
A
P
B
P
M A
S
V310158.A
1
Advertisement
Related Manuals for Danfoss PVE Series
Summary of Contents for Danfoss PVE Series

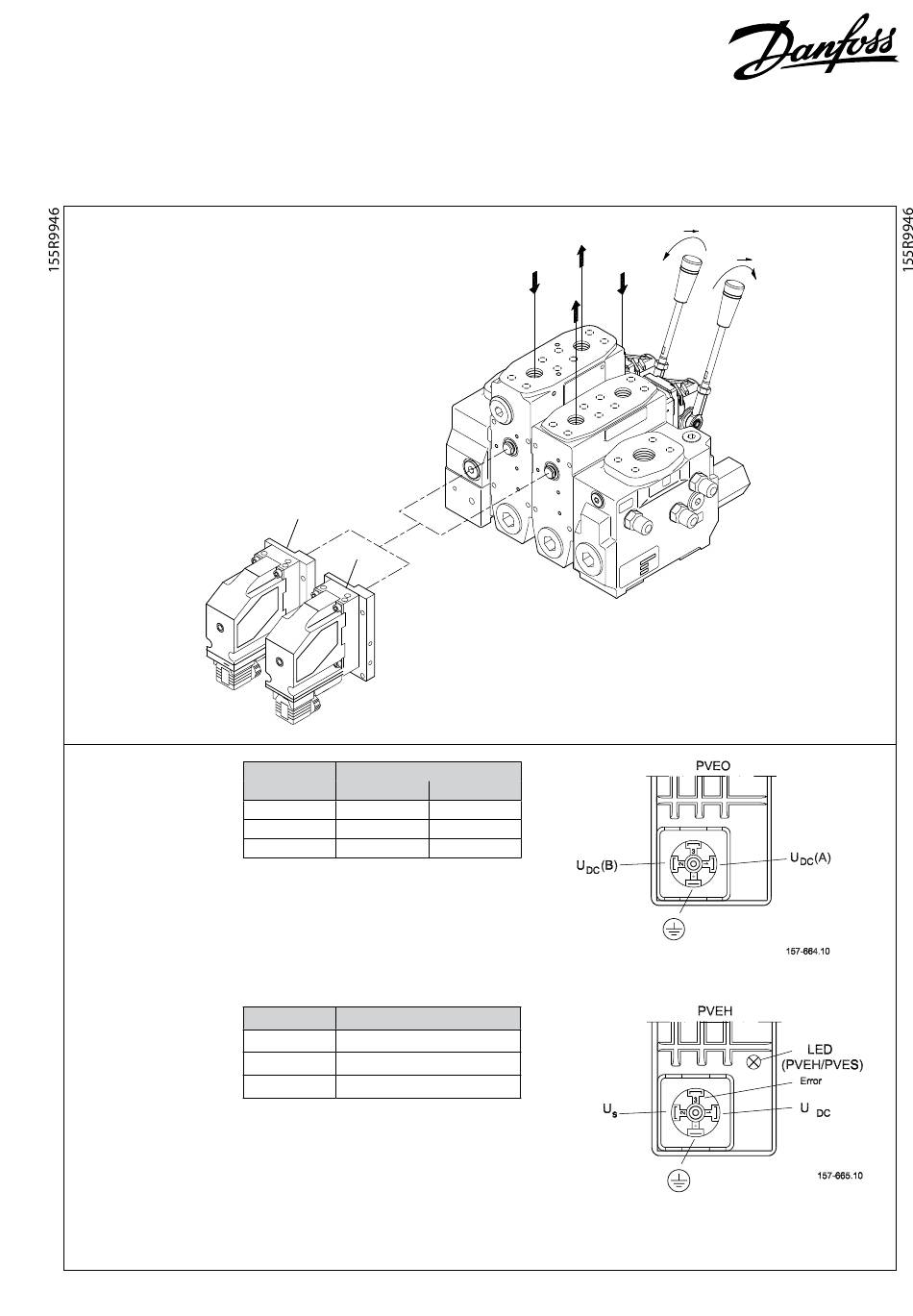

- Page 1 Installation Guide Electrical Actuating Module PVE series 4 for PVG 120 Oliestrømmens retning for standard monterede grupper. Oil flow direction for standard assembled groups. Richtung des Ölstroms für Standard-Baugruppen. Sens du débit pour ensembles standard. PVEH PVEO V310158.A Hirschmann-version Signal voltage (A or B)
- Page 2 Q: P -> A Q: P -> B (pin 1) = (0.5 -> 0.75) • U AMP-stik til PVE serie 4 AMP connector for PVE series 4 AMP-Stecker für PVE Serie 4 Kit AMP pour PVE serie 4 PVE function (grey)
- Page 3 (b) : Signal de commande pour LED (c) : Styresignal til alarmudgang (c) : Control signal for alarm output (c) : Steuersignal für Alarmausgang (c) : Signal de commande pour la sortie d'alarme © Danfoss A/S, 2014-03 520L0403 • Rev CB • Mar 2014...
- Page 4 B - Richtung Sense B V310108.A Transducer omdrejning Håndtagsbevægelse Turn of transducer Movement of lever Transducerdrehung Hebelbewegung Rotation du transducteur Mouvement du manipulateur 1.5 mm 3.0 mm 4.5 mm 520L0403 • Rev CB • Mar 2014 © Danfoss A/S, 2014-03...
- Page 5 For security reasons, any replacement of O-rings between valve block 1 and intermediate plate 2 may only be effected at service shops authorized by Danfoss. Mixing up PVE series 2 for PVG 120 and PVG 32 may lead to self-actuation. Aus Sicherheitsgründen darf eventuelle Auswechslung von O-Ringen zwischen im Ventilblock 1 und Zwischenplatte 2 nur bei Danfoss autorisierten Kunden-dienstwerkstätten ausgeführt...
- Page 6 The process of choosing the control system – and safety level – could e.g. be governed by EN 954-1 (Safety related parts of control system). See also Technical information for PVE series 4. Tous les distributeurs - y compris les distributeurs proportionnels - peuvent tomber en panne et entraîner de sérieux dommages.
