PVED-CLS startup guide
Parameter setting
PVED-CLS Boot EE data
Parameter
P0003 (main controller)
P0003 (safety controller)
16 | © Danfoss | October 2018

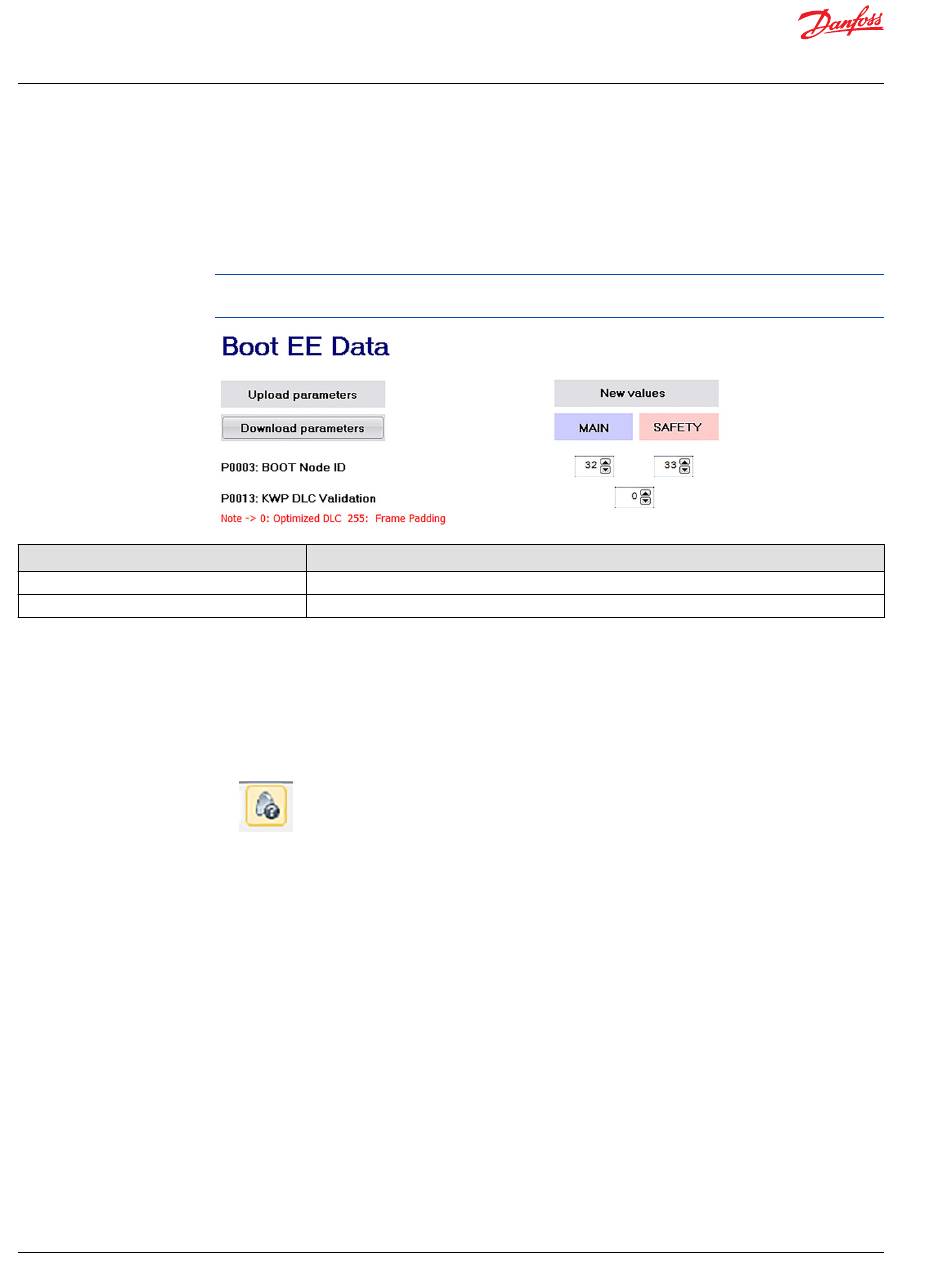

Navigate to the boot EE data section via System Navigator > Configuration > Boot EE Data
Boot Node ID's set the Source Addresses of the Main and Safety micro-controllers which are used for
Bootloader mode. These addresses are seen in the ECU list in the PLUS+1
are different than the Main and Safety Source Addresses that are set in the SEHS Protocol Data page.
If the default addresses conflict with other addresses on the bus or a different messaging scheme is
desired, modify parameters as described.
Condition for value change
Set to desired Bootloader Source Address for Main Controller
Set to desired Bootloader Source Address for Safety Controller
Accept Boot Node ID parameters
1. Download the changed parameters by pressing Download parameters
2. After changing the Boot Node ID's, cycle power on the PVED-CLS for new ID's to take affect
The new ID's will show up in the ECU list; however, the Service Tool pages are still linked to the old
addresses and will produce an error.
3. Start to fix the address error by clicking the Replace Missing ECU icon shown below:
4. Follow the prompts and replace the default Main (32) and Safety (33) Source Addresses with the new
addresses and press OK to complete.
® Service Tool. By default, these
