Application Guide
PVED-CLS startup guide
Parameter setting
PVED-CLS hydraulic configuration P3072-P3097
Example parameter settings
Parameter settings
Parameter
Conditions for value changes
P3072
Not present if there is no cut-off valve (usually with EHPS)
P3078
Set to 0 if PVED-CLS is part of desk setup
P3097
Set to 50 if using 12V coil on a 24V system
P3080
Set to "YES" if using EHPS
P3081
Set to match the valve type used
P3082
If using EHPS, enter desired turns lock-to-lock x100 that matches the hydraulic system
P3084
Set to match OSP displacement in cubic centimeters
P3086
Set to match volume needed to turn lock-to-lock. If using unbalanced cylinder, set to average of left and right.
Parameter
12V coil
P3074
1100mA
P3076
500mA
©
Danfoss | October 2018

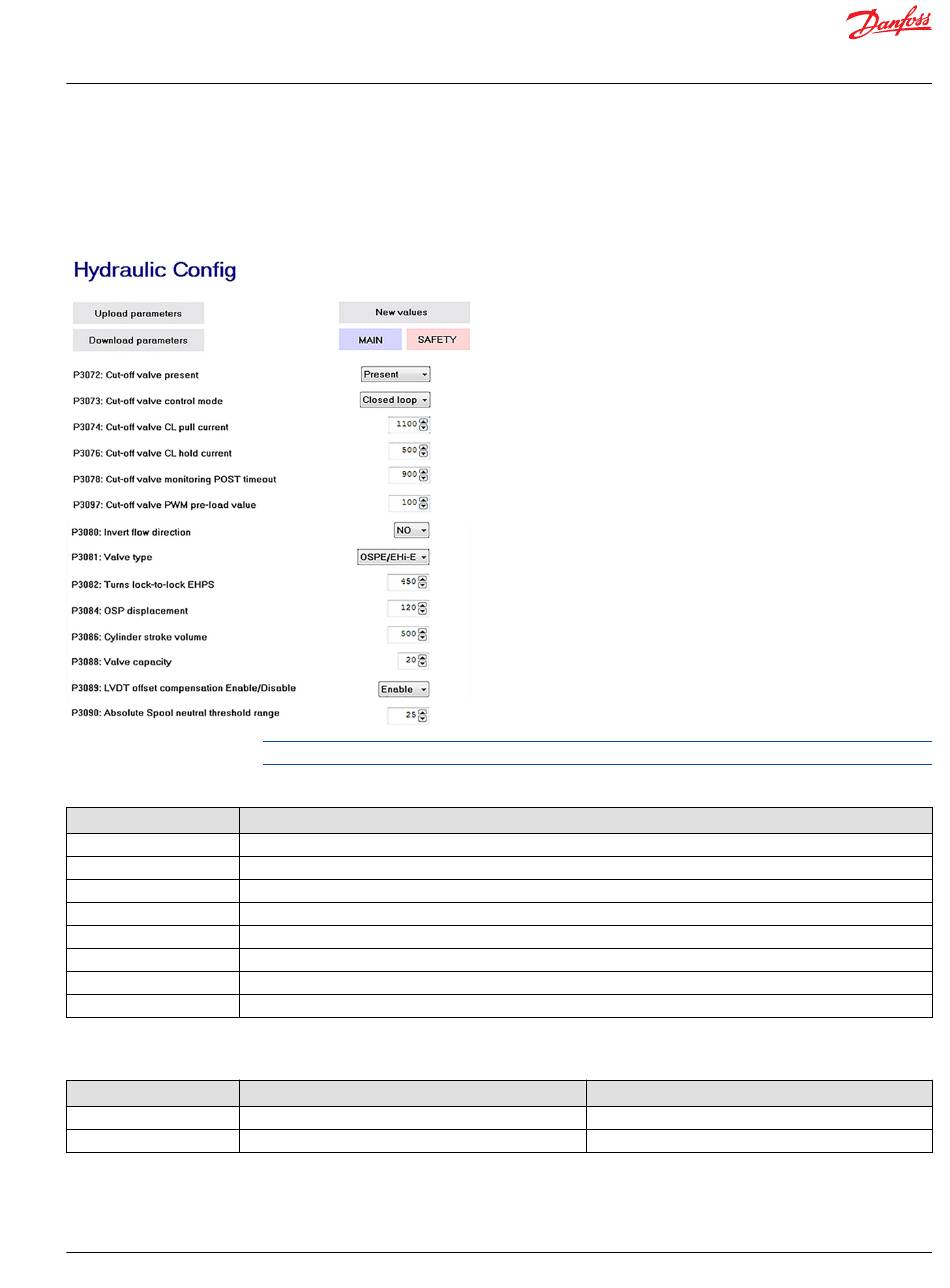

Navigate to the hydraulic configuration section via System Navigator > Configuration > Hydraulic
Config
If the parameter change is not described below or conditions are not met, use the default values.
The default parameters are based on 12V coil. Depending on the voltage, the following parameters may
need to be changed:
The pre-load parameter P3097 is a PWM signal and it must be set to scale the input voltage down to the
rated current of the spool:
24V coil
550mA
250mA
AB285975085591en-000101 | 7
