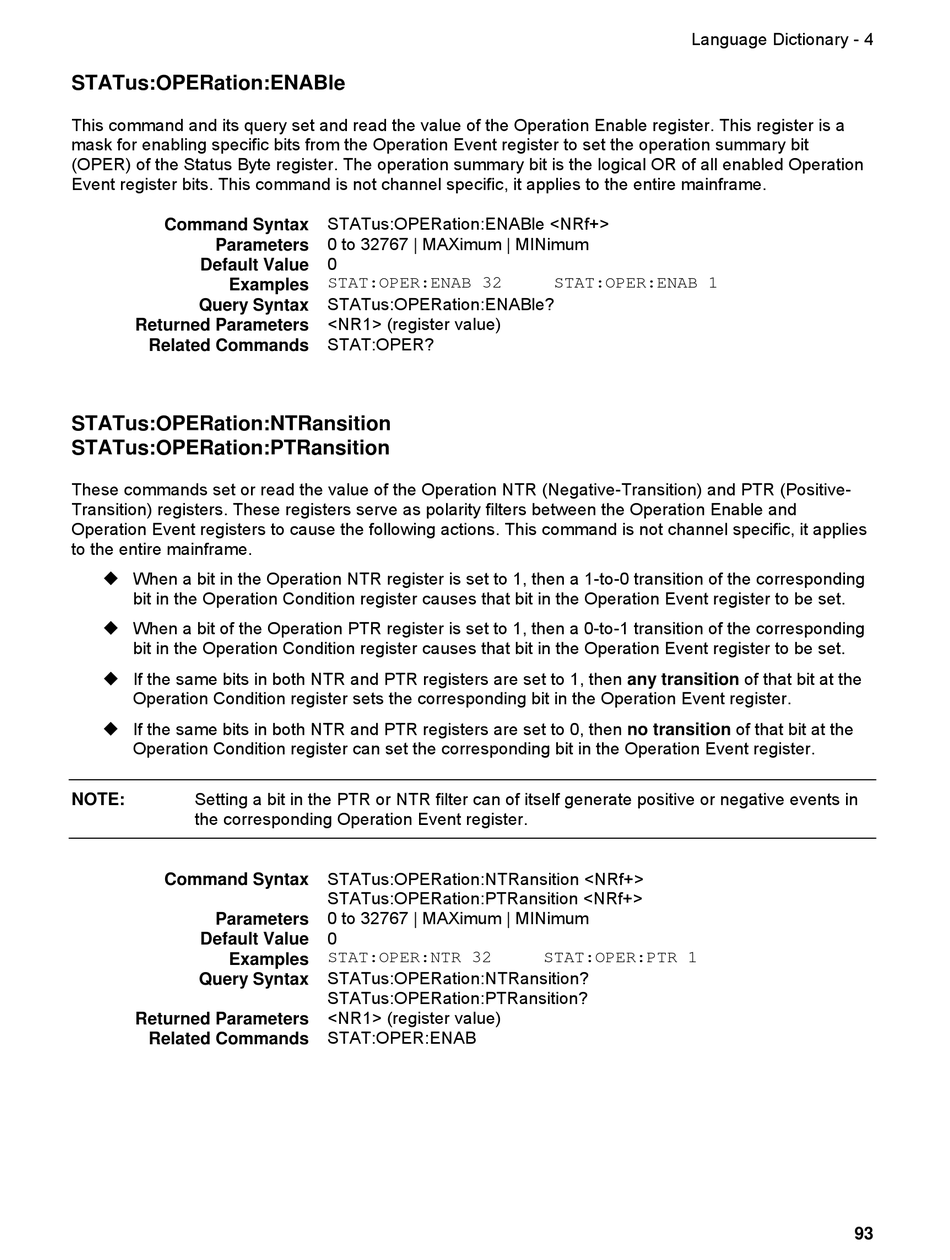

STATus:OPERation:ENABle

This command and its query set and read the value of the Operation Enable register. This register is a
mask for enabling specific bits from the Operation Event register to set the operation summary bit
(OPER) of the Status Byte register. The operation summary bit is the logical OR of all enabled Operation
Event register bits. This command is not channel specific, it applies to the entire mainframe.
Command Syntax
Parameters
Default Value
Examples
Query Syntax
Returned Parameters
Related Commands
STATus:OPERation:NTRansition
STATus:OPERation:PTRansition
These commands set or read the value of the Operation NTR (Negative-Transition) and PTR (Positive-
Transition) registers. These registers serve as polarity filters between the Operation Enable and
Operation Event registers to cause the following actions. This command is not channel specific, it applies
to the entire mainframe.
 When a bit in the Operation NTR register is set to 1, then a 1-to-0 transition of the corresponding
bit in the Operation Condition register causes that bit in the Operation Event register to be set.
 When a bit of the Operation PTR register is set to 1, then a 0-to-1 transition of the corresponding
bit in the Operation Condition register causes that bit in the Operation Event register to be set.
 If the same bits in both NTR and PTR registers are set to 1, then any transition of that bit at the
Operation Condition register sets the corresponding bit in the Operation Event register.
 If the same bits in both NTR and PTR registers are set to 0, then no transition of that bit at the
Operation Condition register can set the corresponding bit in the Operation Event register.
Setting a bit in the PTR or NTR filter can of itself generate positive or negative events in
NOTE:
the corresponding Operation Event register.
Command Syntax
Parameters
Default Value
Examples
Query Syntax
Returned Parameters
Related Commands
STATus:OPERation:ENABle <NRf+>
0 to 32767 | MAXimum | MINimum
0
STAT:OPER:ENAB 32
STATus:OPERation:ENABle?
<NR1> (register value)
STAT:OPER?
STATus:OPERation:NTRansition <NRf+>
STATus:OPERation:PTRansition <NRf+>
0 to 32767 | MAXimum | MINimum
0
STAT:OPER:NTR 32
STATus:OPERation:NTRansition?
STATus:OPERation:PTRansition?
<NR1> (register value)
STAT:OPER:ENAB
Language Dictionary - 4
STAT:OPER:ENAB 1
STAT:OPER:PTR 1
