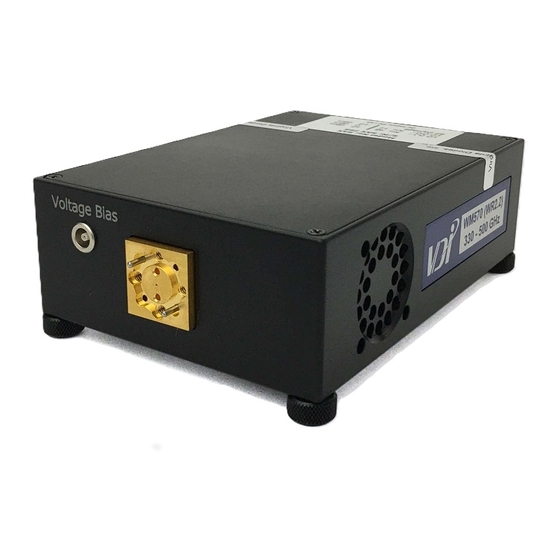

- Page 1 N9029BV Mini Signal Analyzer Frequency Extension Module The Keysight N9029BV Mini Signal Analyzer Frequency Extension (Mini SAX) Modules are a smaller version of the Keysight N9029AVxx SAX modules, and are also manufactured by Virginia Diodes, Inc (VDI). PRODUCT NOTE...
-
Page 2: Trademark Acknowledgments
No additional DOCUMENT THAT CONFLICT WITH government requirements THESE TERMS, THE WARRANTY beyond those set forth in the © Keysight Technologies, Inc. 2021, TERMS IN THE SEPARATE EULA shall apply, except to the 2023 AGREEMENT WILL CONTROL. extent that those terms, rights, or... - Page 3 Mini Signal Analyzer Frequency Extension Modules and Accessories The Keysight N9029BV Mini Signal Analyzer Frequency Extension (Mini SAX) Modules are a smaller version of the Keysight N9029AVxx SAX modules, and are also manufactured by Virginia Diodes, Inc (VDI). The modules are for use with Keysight's X-Series EXA, MXA, or PXA spectrum analyzers with external mixer option EXM recommended for ease of use.
-
Page 4: Power Requirements
(which is readily identifiable and is easily reached by the operator) may be used as a disconnecting device. An external attenuator is recommended when using N9029BV Mini-SAX with the EXM option to avoid exceeding the damage input LO power (16 dBm). - Page 5 Refer to the label on the product for the serial number. Table 2 SAX Mini Modules Keysight Frequency Model Number Model Number (GHz) N9029BV-W01 WR1.0 (WM-250) Mini SAX 750 to 1100 N9029BV-W02 WR2.2 (WM-570) Mini SAX 330 to 500 N9029BV-W03 WR3.4 Mini SAX...
- Page 6 Always use the information printed on the SAX label of your module. • When using the LO/IF (L) Input (External Mixing), use LO (L): N= X, with "X" being the multiplication factor value shown on your SAX label. • When using the LO/IF (H) Input, use LO (H): N= X, with "X" being the multiplication factor value shown on your SAX label.
- Page 7 Frequency Up-Converter Operation The option UDC has an IF input and 9 volt connections for external devices. For frequency up-conversion, the left jumper is to be removed. LO/IF Input Voltage Bias Port IF Input The IF input frequency will be up-converted to the multiplication factor of the LO input (H) ++ IF input N x LO input (H) + IF input = waveguide output frequency}.
-
Page 8: Safety And Information
Safety and Information Use the Keysight supplied power cord or one with the same or better electrical rating. No operator serviceable parts inside. Refer servicing to qualified personnel. To prevent electrical shock do not remove covers. The Mains wiring and connectors shall be compatible with the connector used in the premise electrical system. -
Page 9: Instrument Markings
Instrument Markings Listed below are definitions for the markings that may be found on the product. The instruction documentation symbol. The product is marked with this symbol when it is necessary for the user to refer to the instructions in the documentation. The AC symbol indicates the required nature of the line module input power. -
Page 10: Accessories And Information
Accessories and Information A list of accessories for the N9029BV Mini SAX Modules can be found on the N9029AV99 Waveguide Accessories for mm-Wave Product Note (N9029-90035) at: https://www.keysight.com/us/en/assets/9921-01743/user-manuals/N9029AV99- Millimeter-Waveguide-Accessories-Product-Note.pdf. For information concerning the operation and connections, reference the VDI User Guide... - Page 12 This information is subject to change without notice. © Keysight Technologies 2021, 2023 Print Date: June 2023 Supersedes: February 2023 www.keysight.com...
