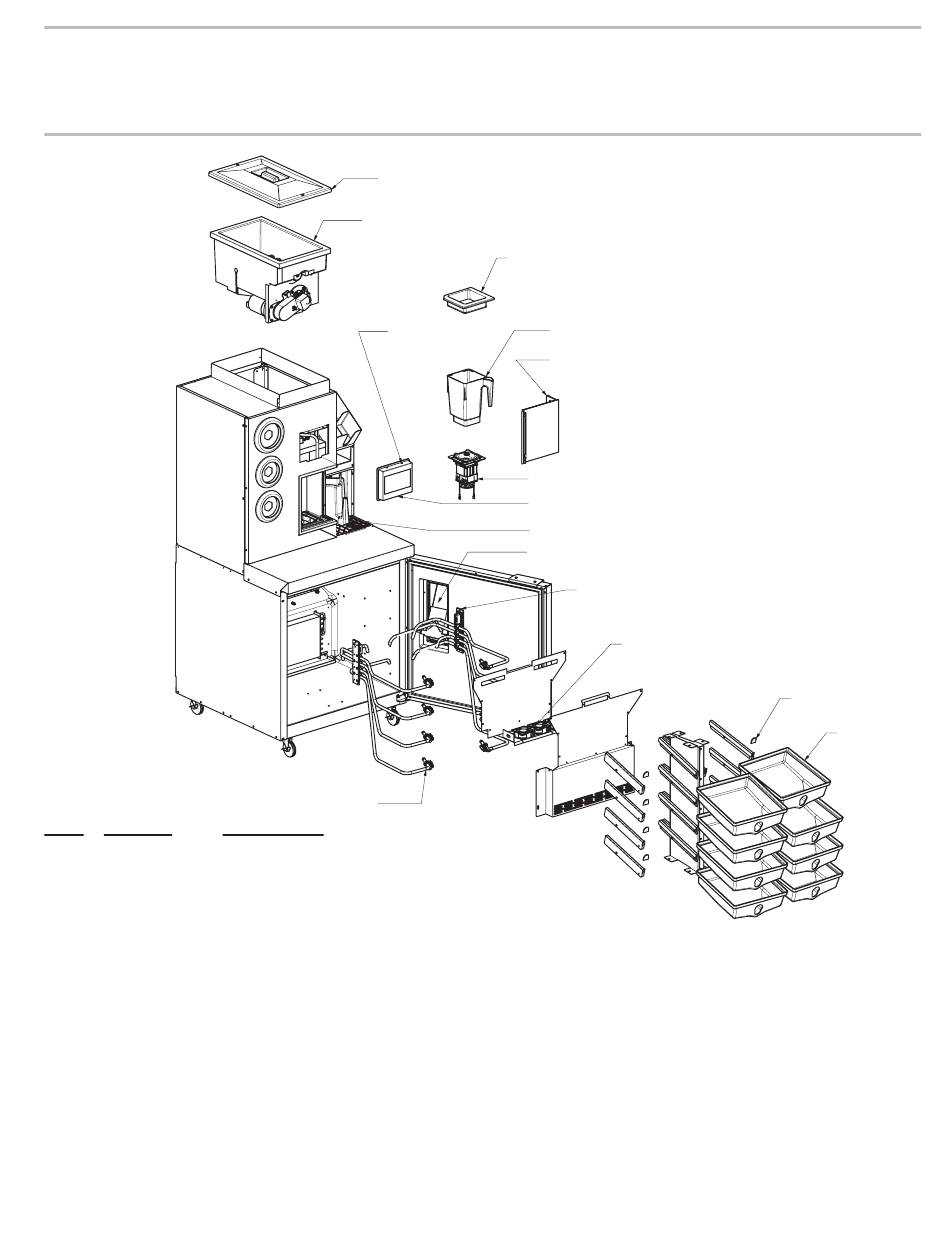

Main Unit Assembly 1

Item Part No. Description
1 05-3226 Lid, Ice Dispenser, Gemini
2 82-4715 Ice Hopper, BDI - 409, Gemini
3 82-4720 Splash Cover, Blend Station, Smoothie
4 82-4654 Product Jar, Blendtec, Smoothie
5 82-4747 Alcove Door Assy, Blend Station, Gemini
6 04-1032 SCR, 8 - 32 x .375", Flathead
7 82-4656 Blender Motor, Blendtec, Smoothie
8 82-4677 Bezel Assy, Blend Station, Gemini
9 82-4733 Grate, Rinse Station, Gemini
10 05-3209 Door, Whipcrm Door, Front, Gemini
11 82-4739 Flow Sensor, Right, Blendtec, Gemini
12 91-0206 Fan, Axial, 115/60, Smoothie (x4)
13 05-3217 Cap, Vinyl, Black Caplug, 1Wx1H .06 gap
14 82-4651 Tray, Bagged Product, Smoothie (x8)
15 82-4711 Flow Sensor, Left, Blendtec, Gemini
18

ILLUSTRATIONS AND PART LISTINGS

1
2
6
15
3
4
5
7
8
9
10
11
12
13
14
