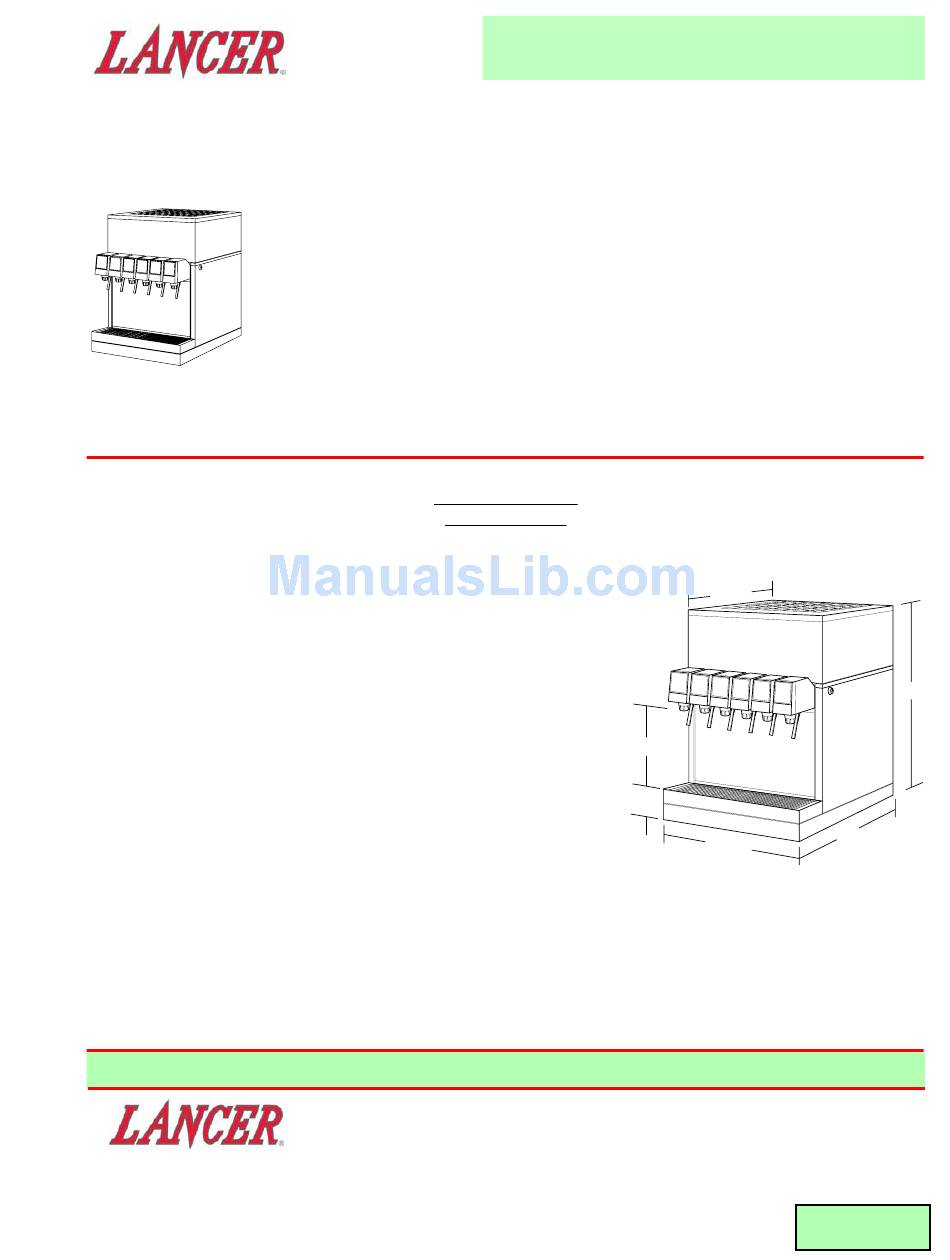

INSTALLATION AND SERVICE MANUAL
FOR LANCER DISPENSERS

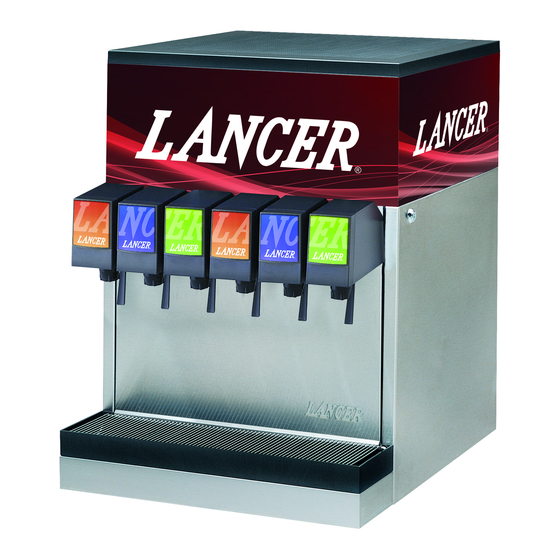

SERIES 1500 POSTMIX
SERIES 1500E POSTMIX
SERIES 1500 PREMIX
SPECIFICATIONS
1500 POSTMIX
19 3/16 inches
24 inches
25 3/8 inches
150 pounds
130 pounds
220 pounds
30 pounds
12 gallons
1/3 HP, Tecumseh, 115V/60Hz
25 W, 115V
9 W, 115V
Lancer Electronic Ice Bank Control (EIBC)
Basler, 115V (Primary)/24V (Secondary)
230V/50Hz and 240V/60Hz systems available
This is an initial manual release.
6655 LANCER BLVD. • SAN ANTONIO, TEXAS 78219 USA • (210) 310-7000
FAX SALES
FAX ENGINEERING: • 210-310-7096
Please refer to the Lancer web site (www.lancercorp.com) for
information relating to Lancer Installation and Service Manuals,
Instruction Sheets, Technical Bulletins, Service Bulletins, etc.
(48.74 cm)
(60.96 cm)
(64.45 cm)
(68.2 kg)
(59.0 kg)
(99.8 kg)
9 1/2 "
(13.6 kg)
24.13 cm
(45.4 liters)
3 1/2 "
8.89 cm
18 3/4 "
47.63 cm
24 "
60.96 cm
19 3/16 "
48.74 cm
REV.
02/11/00
P.N.
28-0450
25 3/8 "
64.45 cm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SERIES 1500 POSTMIX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for lancer SERIES 1500 POSTMIX

Summary of Contents for lancer SERIES 1500 POSTMIX

  • Page 1 • NORTH AMERICA – 210-310-7245 • INTERNATIONAL SALES – 210-310-7242 • CUSTOMER SERVICE – 210-310-7242 • • LATIN AMERICA – 210-310-7245 • EUROPE – 32-2-755-2399 • PACIFIC – 61-8-8268-1978 • FAX ENGINEERING: • 210-310-7096 REV. 02/11/00 P.N. 28-0450 "Lancer" is the registered trademark of Lancer • Copyright — 2000 by Lancer, all rights reserved.
  • Page 2 60.96 cm 19 3/16 " 48.74 cm CONDENSER MOTOR 9 W, 115V ICE BANK CONTROL Lancer Electronic Ice Bank Control (EIBC) TRANSFORMER Basler, 115V (Primary)/24V (Secondary) OPTIONS 230V/50Hz and 240V/60Hz systems available DRINK CAPACITY 350 - 12 ounce (354.8 ml) drinks under 40°F (4.4°C) at four (4) drinks per minute with 75°F (23.9°C) ambient inlet water and syrup.

  • Page 3: Table Of Contents

    4.15 COMPRESSOR STARTS AND RUNS A SHORT TIME BUT SHUTS OFF ON OVERLOAD ...6 4.16 COMPRESSOR AND CONDENSER FAN MOTOR WILL NOT START AFTER FIVE (5) MINUTE POWER OFF DELAY (LANCER EIBC EXPORT ONLY) ............7 4.17 COMPRESSOR AND CONDENSER FAN MOTOR WILL NOT START AFTER FIVE (5) MINUTE POWER OFF DELAY (LANCER EIBC USA ONLY) ............7...

  • Page 4: Installation

    1. INSTALLATION RECEIVING Each unit is completely tested under operating conditions and thoroughly inspected before shipment. At the time of shipment, the carrier accepts the unit and any claim for damages must be made with the carrier. Upon receiving units from the delivering carrier, carefully inspect carton for visible indication(s) of damage.

  • Page 5: Connecting To Electrical Power

    equipped with electronic ice bank controls. D. Replace the yellow plug. E. Reinstall bonnet on dispenser. CONNECTING TO ELECTRICAL POWER WARNING THIS UNIT MUST BE PROPERLY ELECTRICALLY GROUNDED TO AVOID POSSIBLE FATAL ELECTRICAL SHOCK OR SERIOUS INJURY TO THE OPERATOR. THE POWER CORD IS PROVIDED WITH A THREE PRONG GROUNDED PLUG.

  • Page 6: Connecting To Syrup Supply

    C. Flush water supply line thoroughly. D. Route tubing through cutout in counter or through access hole in back of unit. E. Leave 12 inches (30 cm) of extra tubing length below the counter for servicing and moving the dispenser. F.

  • Page 7: Yearly

    YEARLY A. Clean water bath interior, including evaporator coils and refrigeration components. B. Clean the entire exterior of the unit. C. Sanitize syrup lines. 3. DISPENSER CLEANING AND SANITIZING AMBIENT PROCESS A. The ambient process is the most common method for cleaning and sanitizing dispenser equipment.

  • Page 8: Troubleshooting

    4. TROUBLESHOOTING TROUBLE CAUSE REMEDY Water leakage around A. Damaged or improperly A. If damaged, replace. If improperly nozzle. installed o-ring above diffuser. installed, adjust. Leakage between upper A. Gap between upper and lower A. Tighten all six (6) retaining screws. and lower valve bodies.

  • Page 9: Valve Will Not Shut Off

    TROUBLE CAUSE REMEDY (Section 4.8 continued from previous page.) B. Improper or inadequate water B. Remove valve from mounting block or syrup supply. and open shutoffs slightly and check water and syrup supply. If no supply, check dispenser for problems. Ensure BIB connection is engaged.

  • Page 10: Compressor And Condenser Fan Motor Will Not Start After Five

    Board. five (5) minute Power C. Probe unplugged. C. Check probe connection at PCB. Off delay (Lancer EIBC Export only). 4.17 Compressor and A. Improper Wiring. A. Check Power Indicator Lamp; Condenser Fan Motor check wiring per Wiring Diagram.

  • Page 11: Illustrations, Parts Lists And Wiring Diagrams

    A FIVE (5) MINUTE DELAY BEFORE THE COMPRESSOR/FAN STARTS. OVERLOAD GREEN BLACK KILL WHITE SWITCH MOTOR AGITATOR MOTOR TO VALVES 24 V LEADS LANCER BANK CONTROL RELAY PROBE LABEL, WIRING DIAGRAM, CED, PN 06-1148/01 EIBC PROBE CONNECTION POWER INDICATOR LAMP POWER CONNECTIONS HOT OUT HOT IN...

  • Page 12: Bank Control (Eibc); Pn 82-2667; Usa Only

    SERIES 1500 REFRIGERATION DECK ASSEMBLY, R-134A, WITH LANCER ELECTRONIC ICE BANK CONTROL (EIBC); PN 82-2667; USA ONLY...

  • Page 13: Bank Control (Eibc); Pn 82-2667; Usa Only

    SERIES 1500 REFRIGERATION DECK ASSEMBLY, R-134A, WITH LANCER ELECTRONIC ICE BANK CONTROL (EIBC); PN 82-2667; USA ONLY (CONTINUED) ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 30-5107 Shroud, Fan, Bottom 82-1692/01 Air Shield Assy, Right 30-5106 Shroud, Fan, Top 50-0302...

  • Page 14: Pn 82-2048E, 240V/60Hz; Export Only

    SERIES 1500 REFRIGERATION DECK ASSEMBLY, R-134A, WITH LANCER ELECTRONIC ICE BANK CONTROL (EIBC); PN 82-2050E, 115V/60HZ; PN 82-2099E, 230V/50HZ; PN 82-2048E, 240V/60HZ; EXPORT ONLY...

  • Page 15: Pn 82-2048E, 240V/60Hz; Export Only

    SERIES 1500 REFRIGERATION DECK ASSEMBLY, R-134A, WITH LANCER ELECTRONIC ICE BANK CONTROL (EIBC); PN 82-2050E, 115V/60HZ; PN 82-2099E, 230V/50HZ; PN 82-2048E, 240V/60HZ; EXPORT ONLY (CONTINUED) ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 06-0856/01 Label, Fill Hole 30-5107 Shroud, Fan, Bottom...

  • Page 16: Series 1500 Cabinet Assembly, High Performance

    SERIES 1500 CABINET ASSEMBLY, HIGH PERFORMANCE...

  • Page 17: Series 1500 Cabinet Assembly, High Performance

    SERIES 1500 CABINET ASSEMBLY, HIGH PERFORMANCE (CONTINUED) ITEM PART NO. DESCRIPTION 30-0636/02 Wrapper, External 51-0568 Trim, Gray 04-0067 Rivet 50-0173 Insulation, Tape, Front 50-0178 Insulation, Top 50-0214 Insulation, Tape, Sides 50-0118 Insulation, Tape, Back 04-0082 Nut, Hex, 10-24, SS 30-0612 Back, Plate 10 04-0477 Screw, 8 - 32 x 3/8 inch...

  • Page 18: Series 1500E And 1500 Premix Cabinet Assembly

    SERIES 1500E AND 1500 PREMIX CABINET ASSEMBLY...

  • Page 19: Series 1500E And 1500 Premix Cabinet Assembly

    SERIES 1500E AND 1500 PREMIX CABINET ASSEMBLY (CONTINUED) ITEM PART NO. DESCRIPTION NOTE: Cage Assembly Part Numbers are: 23-0777 5V, Premix 51-0744/01 Wrapper, External 23-0778 6V, Premix 50-0173 Insulation, Tape, Front 23-1139 5V, 2-2-1 Manifold, 3/8 Inch Syrup 50-0178 Insulation, Top Inlets, E-Model 50-0214 Insulation, Tape, Sides...
  • Page 20 NOTES Please refer to the Lancer web site (www.lancercorp.com) for information relating to Lancer Installation and Service Manuals, Instruction Sheets, Technical Bulletins, Service Bulletins, etc.
