lancer 500 Series Installation And Service Manual

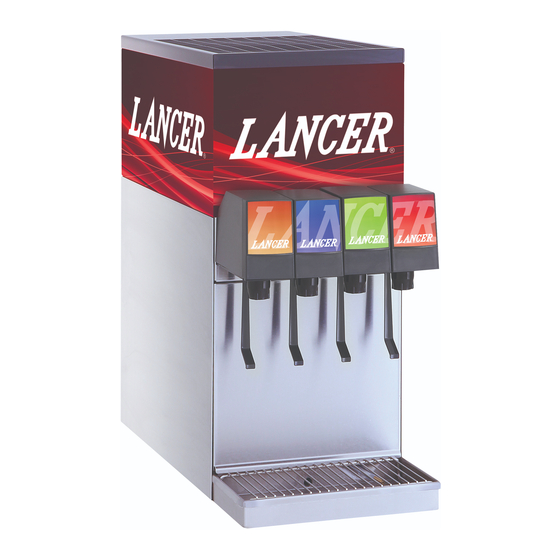

Counter electric dispenser
Hide thumbs Also See for 500 Series:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
DIMENSION
Width
Depth
Height (without legs)
WEIGHT
Shipping
Empty
Operating
WATER REQUIREMENTS
IF WATER SOURCE EXCEEDS 60 PSIG (4.22 KG/CM
ASSEMBLY (PN 18-0253) MUST BE USED TO LIMIT WATER PRESSURE TO 60 PSIG (4.22 KG/CM
FAILURE TO USE REGULATOR WILL RESULT IN IMPROPER PERFORMANCE OF DISPENSER.
Minimum flowing pressure of 35 PSIG (2.46 kg/cm
Maximum static pressure of 60 PSIG (4.22 kg/cm
CARBON DIOXIDE (CO
Minimum pressure of 70 PSIG (4.92 kg/cm
Maximum pressure of 80 PSIG (5.62 kg/cm
ICE BANK WEIGHT
WATER BATH CAPACITY
COMPRESSOR
AGITATOR MOTOR
CONDENSER FAN MOTOR
ICE BANK CONTROL
TRANSFORMER
Optional 230V/50Hz and 240V/60Hz systems available.
DRINK CAPACITY
57 – 12 ounce drinks under 40°F (4.4°C) at four (4) drinks per minute with 75°F (23.9°C) ambient, inlet
water, and inlet syrup.
• NORTH AMERICA – 210-310-7245 • INTERNATIONAL SALES – 210-310-7242 • CUSTOMER SERVICE – 210-310-7242 •
• LATIN AMERICA – 210-310-7245 • EUROPE – 32-2-755-2399 • PACIFIC – 61-8-8268-1978 •
"Lancer" is the registered trademark of Lancer • Copyright — 2000 by Lancer, all rights reserved.
INSTALLATION AND SERVICE MANUAL
COUNTER ELECTRIC DISPENSER
LANCER SERIES 500
SPECIFICATIONS
10 3/8 inches
25 1/4 inches
22 15/16 inches (583 mm)
108 pounds
89 pounds
125 pounds
) REQUIREMENTS
2
, 4.83 BAR)
2
, 5.52 BAR)
2
16 pounds
5.1 gallons
¼ HP Tecumseh, 115V/60Hz
15W, 115V
9W, 115V
Lancer Electronic Ice Bank Control
Basler, 115V (Primary)/24V (Secondary)
This manual is an initial issue
6655 LANCER BLVD. • SAN ANTONIO, TEXAS 78219 USA • (210) 310-7000
FAX SALES
FAX ENGINEERING: • 210-310-7096
FOR
(264 mm)
(641 mm)
(49.0 kg)
(40.4 kg)
(55.4 kg)
CAUTION
), A RECOMMENDED WATER REGULATOR
2
, 2.41 BAR)
2
, 4.14 BAR)
2
(17.26 kg)
(19.3 liters)
Please refer to the Lancer web
site (www.lancercorp.com)
for information relating to
Lancer
Installation
and
Service Manuals, Instruction
Sheets, Technical Bulletins,
Service Bulletins, etc.
REV:
04/20/00
P.N.
28–0449
).
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for lancer 500 Series

Summary of Contents for lancer 500 Series

  • Page 1 • NORTH AMERICA – 210-310-7245 • INTERNATIONAL SALES – 210-310-7242 • CUSTOMER SERVICE – 210-310-7242 • • LATIN AMERICA – 210-310-7245 • EUROPE – 32-2-755-2399 • PACIFIC – 61-8-8268-1978 • FAX ENGINEERING: • 210-310-7096 REV: 04/20/00 "Lancer" is the registered trademark of Lancer • Copyright — 2000 by Lancer, all rights reserved. P.N. 28–0449...

  • Page 2: Table Of Contents

    ON OVERLOAD ..........................6 4.16 COMPRESSOR AND CONDENSER FAN MOTOR WILL NOT START AFTER FIVE (5) MINUTE POWER OFF DELAY (LANCER EIBC EXPORT ONLY) ........6 4.17 COMPRESSOR AND CONDENSER FAN MOTOR WILL NOT START AFTER FIVE (5) MINUTE POWER OFF DELAY (LANCER EIBC USA ONLY)..........6 4.18 WARM DRINKS..........................6...

  • Page 3: Unpacking

    UNPACKING A. Remove cup rest by lifting out. B. Remove splash plate by pulling forward at the bottom. Drip tray can be removed before removing splash plate. C. Remove drip tray by lifting out. D. Remove shipping base. DO NOT LAY UNIT ON ITS SIDE OR BACK. DO NOT USE DRIP TRAY FRAME FOR A HANDLE.

  • Page 4: Scheduled Maintenance

    B. Mark both ends of product and water lines and route to dispenser. Flush lines to be sure each is clean. Failure to do so may result in clogging of valve(s), resulting in improper operation. Connect lines to dispenser and secure using Oetiker clamps. C.

  • Page 5: Valves

    phenolpthalein shows that the rinse water is free of residual detergent. F. Fill the lines with a low pH (7.0) chlorine solution containing at least 50 parts per million (PPM) (50 mg/L) available chlorine. Make sure that lines are completely filled and allow to stand for ten (10) minutes.

  • Page 6: Insufficient Syrup Flow

    TROUBLE CAUSE REMEDY Insufficient syrup flow. A. Insufficient CO pressure to A. Adjust CO pressure to 80 PSI BIB pumps. (5.5 bar) [minimum 70 PSI (4.8 bar)] for BIB pumps. B. Shutoff on mounting block not B. Open shutoff fully. fully open.

  • Page 7: Compressor Does Not Start (No Hum), But Condenser Fan Motor Runs

    Board. five (5) minute Power C. Probe unplugged. C. Check probe connection at PCB. Off delay (Lancer EIBC Export only). 4.17 Compressor and A. Improper Wiring. A. Check Power Indicator Lamp; Condenser Fan Motor check wiring per Wiring Diagram.

  • Page 8: Illustrations, Parts Listings, And Wiring Diagrams

    G. Dispenser capacity exceeded. G. Add pre-chiller. 5. ILLUSTRATIONS, PARTS LISTINGS, AND WIRING DIAGRAMS 500 CED WIRING DIAGRAM, 220-240V/50-60HZ, LANCER ELECTRONIC ICE BANK CONTROL (INTERNATIONAL ONLY) IMPORTANT WHEN STARTING UNIT OR IF CURRENT IS INTERRUPTED, THERE IS A FIVE (5) MINUTE DELAY BEFORE THE COMPRESSOR/FAN STARTS.

  • Page 9: 500 Ced Wiring Diagram, 115V/60Hz, Lancer Electronic Ice Bank Control And Control Housing Connections, Usa Only

    500 CED WIRING DIAGRAM, 115V/60HZ, LANCER ELECTRONIC ICE BANK CONTROL AND CONTROL HOUSING CONNECTIONS, USA ONLY IMPORTANT WHEN STARTING UNIT OR IF CURRENT IS INTERRUPTED, THERE IS A FIVE (5) MINUTE DELAY BEFORE THE COMPRESSOR/FAN STARTS. OVERLOAD GREEN JCT. BLACK...

  • Page 10: Cabinet Assembly

    CABINET ASSEMBLY...
  • Page 11 CABINET ASSEMBLY (CONTINUED) ITEM PART NO. Description 30-5260/01 Wrapper, Cabinet 07-0347 Plate, Cover 23-1111 Cup Rest 51-0735 Drip Tray Assy 30-5037 Frame, Drip Tray 52-0843 Wire Harness, 2 Valve 52-2103 Wire Harness, 3 Valve 52-0842 Wire Harness, 4 Valve 52-0849/01 Wire Harness, Key Lock (Optional) 42-0017 Tank Assy, Insulated...

  • Page 12: Compressor Deck Assembly

    COMPRESSOR DECK ASSEMBLY...

  • Page 13: Compressor Deck Assembly

    COMPRESSOR DECK ASSEMBLY (CONTINUED) ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 83-0045 Compressor, 115V/60Hz, 1/4 82-2662 Compressor Deck Assy, 115V/60Hz 82-2665 Compressor Deck Assy, 230V/50Hz 83-0047 Compressor, 230V/50Hz, 1/4 82-2666 Compressor Deck Assy, 240V/60Hz 82-2096 Deck SubAssy, with Insulation 83-0046 Compressor, 240V/60Hz, 1/4 23-0955...
  • Page 14 NOTES...
  • Page 15 FAX: 55-11-4612-2219 China 78, LBS Marg, Bhandup (W) e-mail: fabio.queiroz@bras.com.br 1856, Hu Tai Road Mumbai 400-078, India Lancer Chile Ltda. - Chile Shanghai, 200436, China Phone: 91-22-2561-6665 Contact: Heriberto Concha Phone: 86-21-5650-3555 Cel No.: 91-98-2029-5252 Vicuna Mackenna 3019, San Joaquin...
  • Page 16 Directory of USA - Canada Offices, International Offices, and Authorized Distributors Corporate Office 6655 Lancer Blvd. • San Antonio, Texas 78219 • 210-310-7000 • 1-800-729-1500 • FAX 210-310-7250 Lancer USA Lancer Russia Ernest F. Mariani Company Manufacturing Locations 614 West 600 South...
