Programming

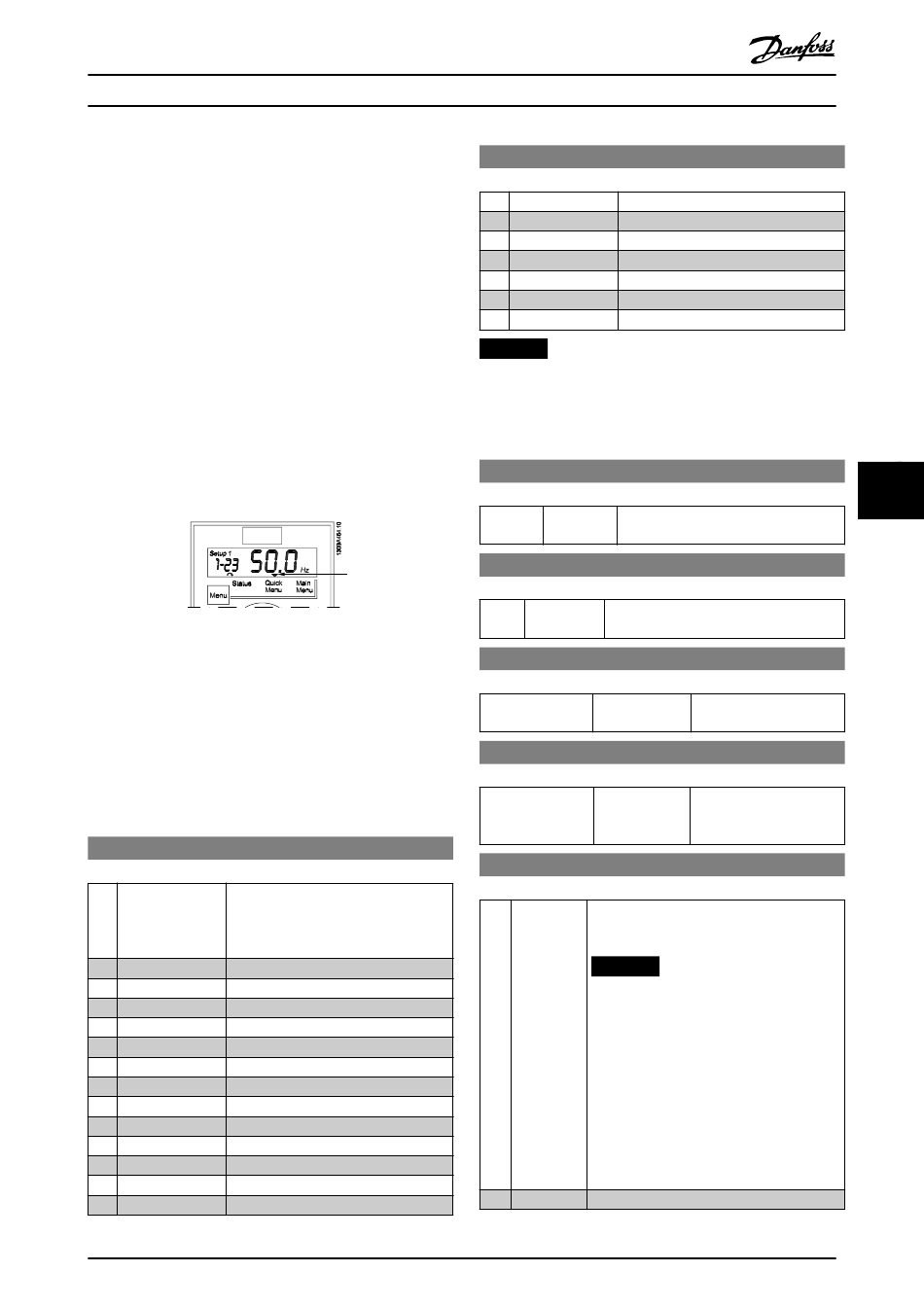

7.3 Quick Menu

The Quick Menu gives easy access to the most frequently
used parameters.
1. To enter Quick Menu, press [Menu] key until
indicator in display is placed above Quick Menu.
▲ ▼
2.
Press [ ] [ ] to select either QM1 or QM2, then
press [OK].
▲ ▼
3.
Press [ ] [ ] to browse through the parameters in
the Quick Menu.
4. Press [OK] to select a parameter.
▲ ▼
5.
Press [ ] [ ] to change the value of a parameter
setting.
6. Press [OK] to accept the change.
7. To exit, press either [Back] twice to enter Status,
or press [Menu] once to enter Main Menu.
Illustration 7.9 Indicating Quick Menu Mode

7.4 Quick Menu Parameters

7.4.1 Quick Menu Parameters - Basic
Settings QM1
This section describes the parameters in Quick Menu.
*=Factory setting.
1-20 Motor Power [kW]/[hp] (P
Option: Function:
Enter motor power from nameplate
data.
Two sizes down, 1 size up from nominal
VLT rating.
[1] 0.09 kW/0.12 hp
[2] 0.12 kW/0.16 hp
[3] 0.18kW/0.25 hp
[4] 0.25 kW/0.33 hp
[5] 0.37kW/0.50 hp
[6] 0.55 kW/0.75 hp
[7] 0.75 kW/1.00 hp
[8] 1.10 kW/1.50 hp
[9] 1.50 kW/2.00 hp
[10] 2.20 kW/3.00 hp
[11] 3.00 kW/4.00 hp
[12] 3.70 kW/5.00 hp
[13] 4.00 kW/5.40 hp
MG02K402
Design Guide
)
m.n
Danfoss A/S © 01/2016 All rights reserved.
1-20 Motor Power [kW]/[hp] (P
Option: Function:
[14] 5.50 kW/7.50 hp
[15] 7.50 kW/10.0 hp
[16] 11.00 kW/15.00 hp
[17] 15.00 kW/20.00 hp
[18] 18.50 kW/25.00 hp
[19] 22.00 kW/29.50 hp
[20] 30.00 kW/40.00 hp
NOTICE
Changing this parameter affects parameters 1-22 Motor
Voltage to 1-25 Motor Nominal Speed, 1-30 Stator
Resistance (Rs), 1-33 Stator Leakage Reactance (X1), and
1-35 Main Reactance (Xh).
1-22 Motor Voltage (U_ )
m.n
Range: Function:
230/400 V [50–999 V] Enter motor voltage from nameplate
data.
1-23 Motor Frequency (f_
m.n
Range: Function:
50 Hz [20–400 Hz] Enter motor frequency from nameplate
*
data.
1-24 Motor Current (I_ )
m.n
Range:
M-type dependent [0.01–100.00 A] Enter motor current from
*
1-25 Motor Nominal Speed (n_
Range:
M-type Dependent [100–9999
*
RPM]
1-29 Automatic Motor Tuning (AMT)
Option: Function:
Use AMT to optimize motor performance.
When parameter 1-01 Motor Control Principle is
set to [0] U/f, AMT does not work.
NOTICE
This parameter cannot be changed
while the motor is running.
1. Stop the frequency converter - make
sure that the motor is at standstill.
2. Select [2] Enable AMT.
3. Apply start signal:
- Via LCP: Press [Hand On].
- Or in remote on mode: Apply start
signal on terminal 18.
[0] Off AMT function is disabled.
*
)
m.n
)
Function:
nameplate data.
)
m.n
Function:
Enter motor nominal
speed from nameplate
data.
