Product Overview
For example, consider a pump application where the speed
of a pump is to be controlled so that the static pressure in
a pipe is constant. The static pressure value is supplied to
the frequency converter as the setpoint reference. A static
pressure sensor measures the actual static pressure in the
pipe and supplies this data to the frequency converter as a
feedback signal. If the feedback signal is greater than the
+
Reference
S
_
Feedback

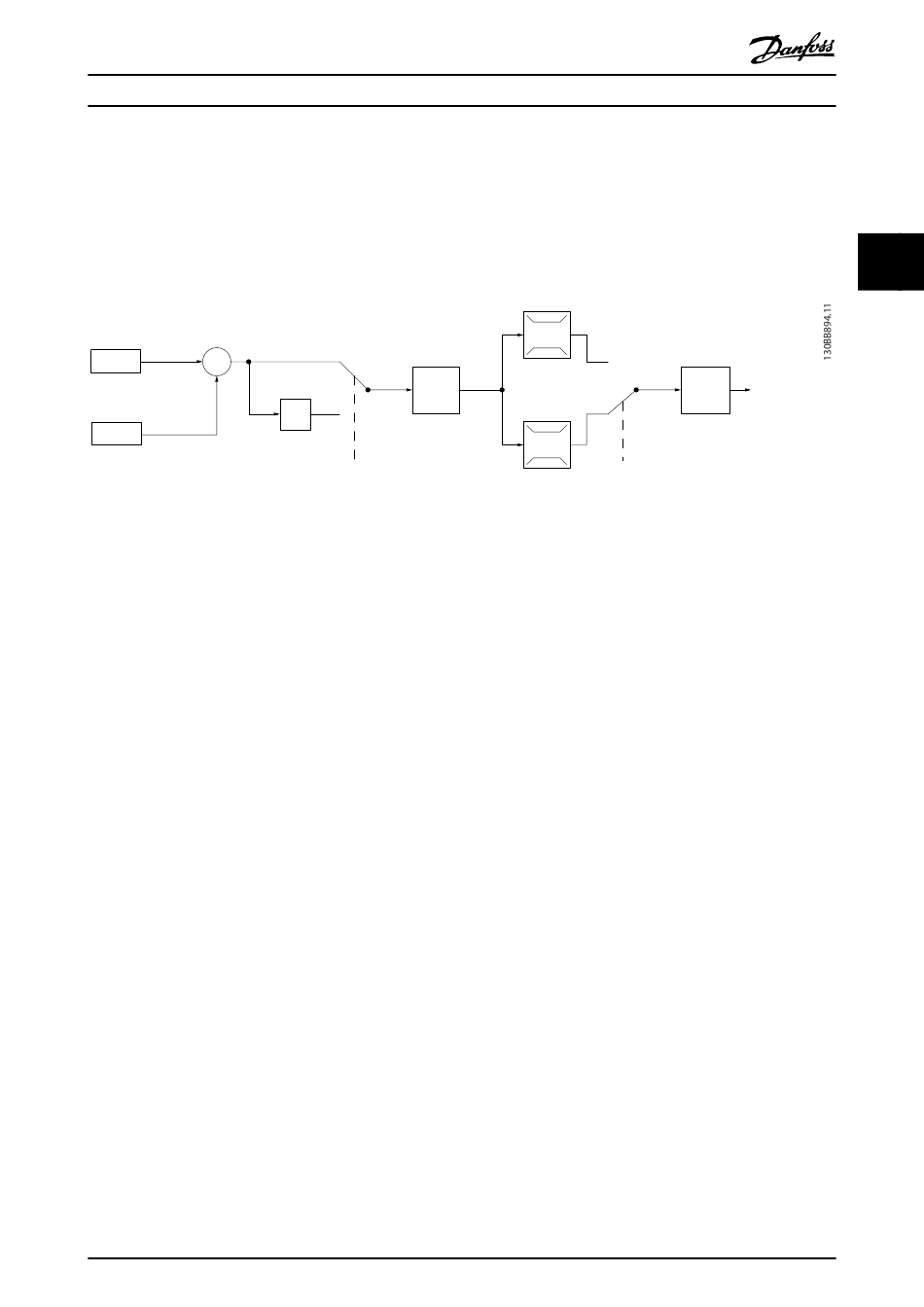

Illustration 3.3 Control Structure Closed Loop
While the default values for the closed-loop controller of
the frequency converter often provide satisfactory
performance, the control of the system can often be
optimized by adjusting parameters.
MG02K402
Design Guide
PI
*[-1]
7-30 PI
Normal/Inverse
Control
Danfoss A/S © 01/2016 All rights reserved.
setpoint reference, the frequency converter slows the
pump down to reduce the pressure. In a similar way, if the
pipe pressure is lower than the setpoint reference, the
frequency converter automatically speeds the pump up to
increase the pressure provided by the pump.
