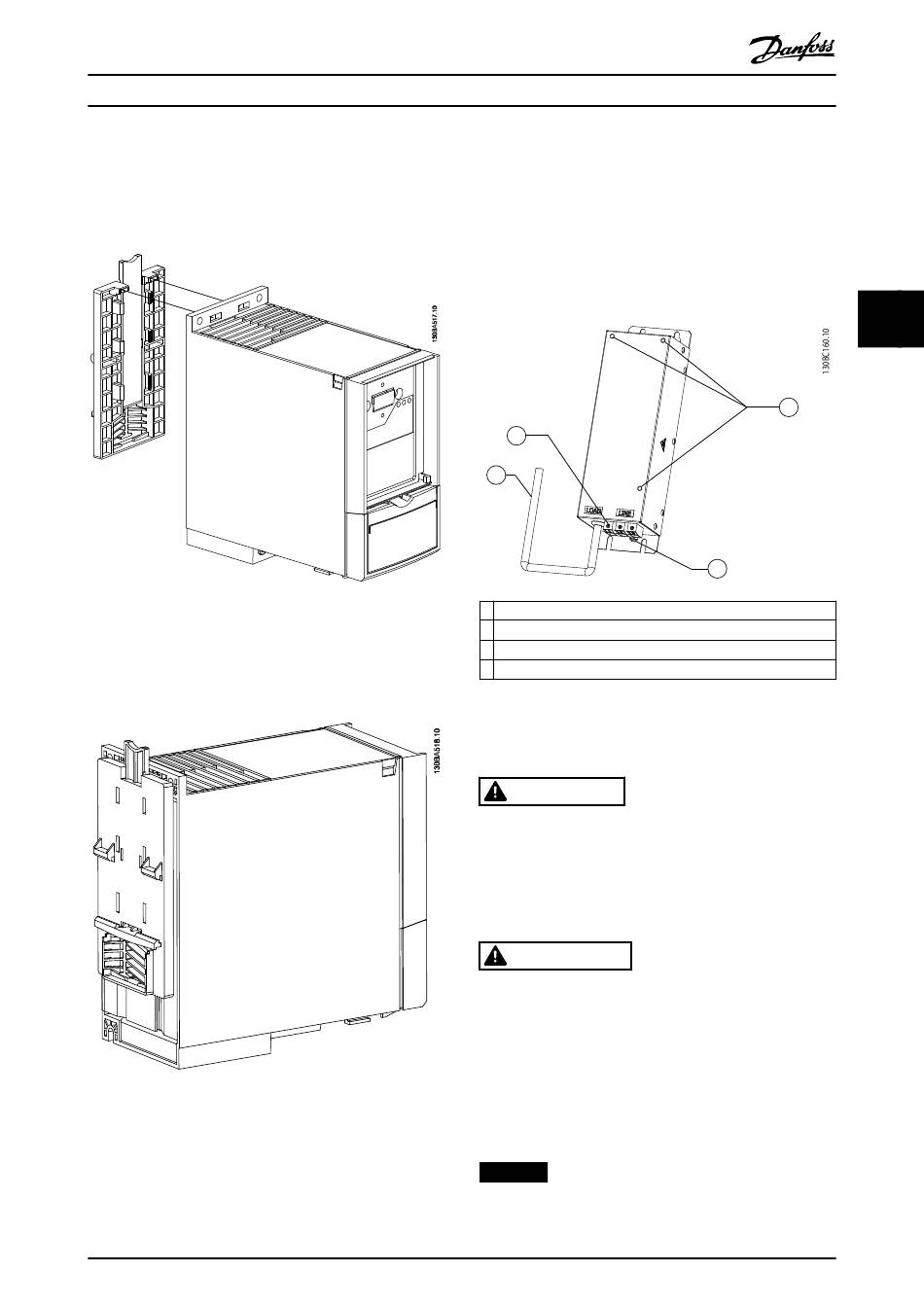

4.1.13 FC 51 DIN Rail Kit Mounting
Instruction
Step 1
Mount plastic part on frequency converter.
Illustration 4.25 Mount Plastic Part
Step 2
Fit frequency converter on DIN rail (DIN rail kit is only for
M1 and M2).
Illustration 4.26 Fit Frequency Converter on DIN Rail
MG02K402
Design Guide
4.1.14 Line Filter MCC 107 Installation
Line filters of the type MCC 107 combine a harmonic filter
and an EMC filter. The line filters improve performance of
the line current to the frequency converter. The 3 different
line filter enclosure sizes correspond to the VLT
Drive enclosure types M1, M2 and M3.
2
3
1 Mounting holes for frequency converter
2 Input terminal
3 Output line
4 Protective earth (PE)
Illustration 4.27 Line Filter MCC 107 with VLT
51
CAUTION
HOT SURFACES
The surface of the line filter can get hot during
operation.
•
WARNING
HIGH VOLTAGE
Frequency converters contain high voltage when
connected to AC mains input, DC supply, or load sharing.
Failure to perform installation, start-up, and maintenance
by qualified personnel can result in death or serious
injury.
•
NOTICE
Always replace defective filters, never repair them.
Danfoss A/S © 01/2016 All rights reserved.
Instructions
Do not touch the line filter during operation or
wear protective gloves.
Only qualified personnel must perform instal-
lation, start-up, and maintenance.
®
