Programming

7 Programming

7.1 How to Programme

7.1.1 Programming with MCT 10 Set-up
Software
The frequency converter can be programmed from a PC
via RS485 port using the MCT 10 Set-up Software.
This software can either be ordered using ordering number
130B1000 or downloaded from the Danfoss web site:
www.danfoss.com/BusinessAreas/DrivesSolutions/software-
download
®
Refer to VLT Motion Control Tools MCT 10 Set-up Software
Operating Instructions.

7.1.2 Programming with the LCP 11 or LCP

12
The LCP is divided into 4 functional groups:
1. Numeric display.
2. Menu key.
3. Navigation keys.
4. Operation keys and indicator lights.

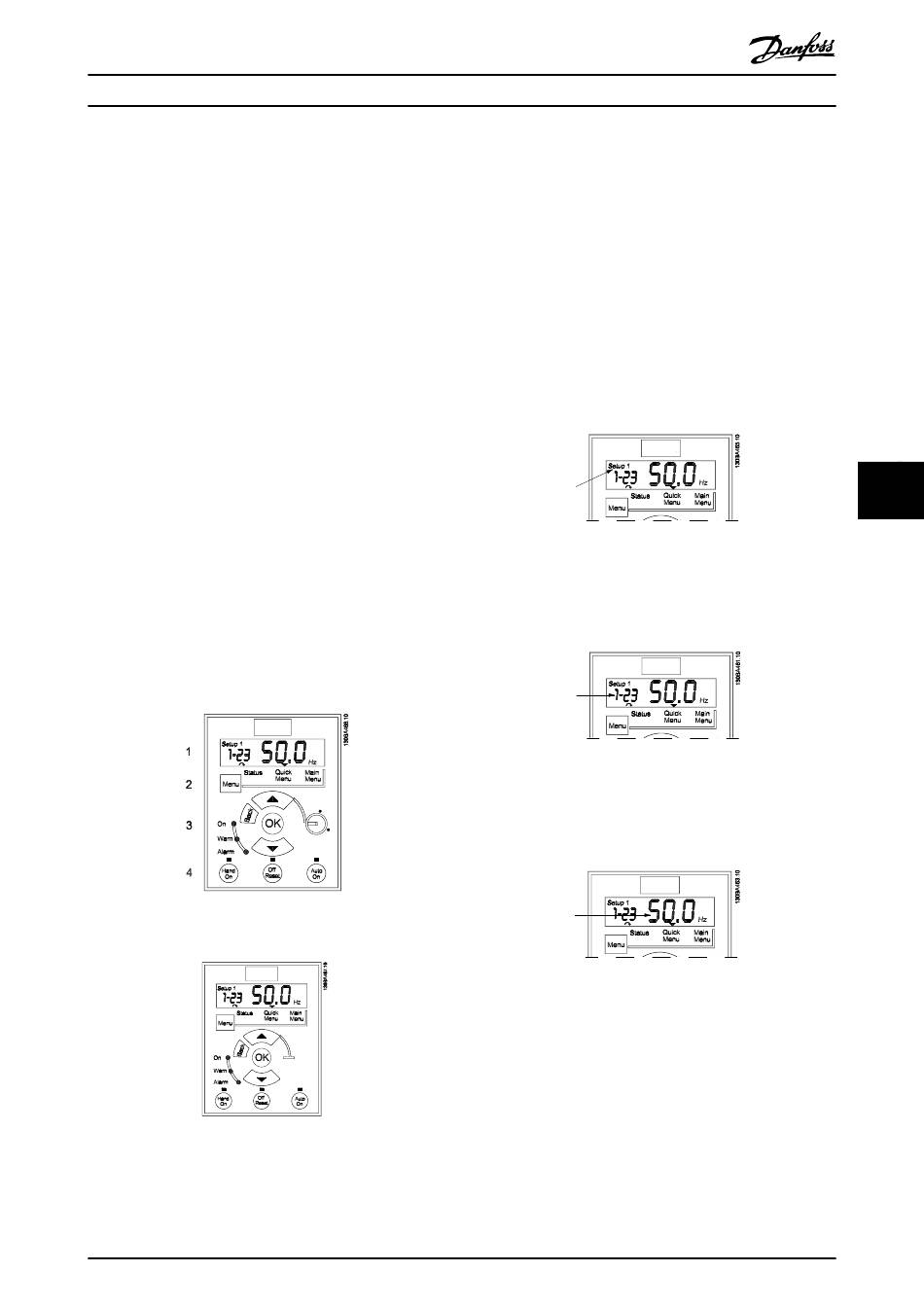

Illustration 7.1 LCP 12 with Potentiometer
Illustration 7.2 LCP 11 without Potentiometer
MG02K402
Design Guide
The display
The display shows different information.
Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting).
When active and edit set-up differ, the display shows both
numbers (set-up 12). The flashing number indicates the
edit set-up.
Illustration 7.3 Indicating Set-up
The small digits to the left are the selected parameter
number.
Illustration 7.4 Indicating Selected Parameter Number
The large digits in the middle of the display show the
value of the selected parameter.
Illustration 7.5 Indicating Value of Selected Parameter
The right side of the display shows the unit of the selected
parameter. This can be either Hz, A, V, kW, hp, %, s, or
RPM.
