Selection
Step 2
Decoupling plate mounted.
4
4

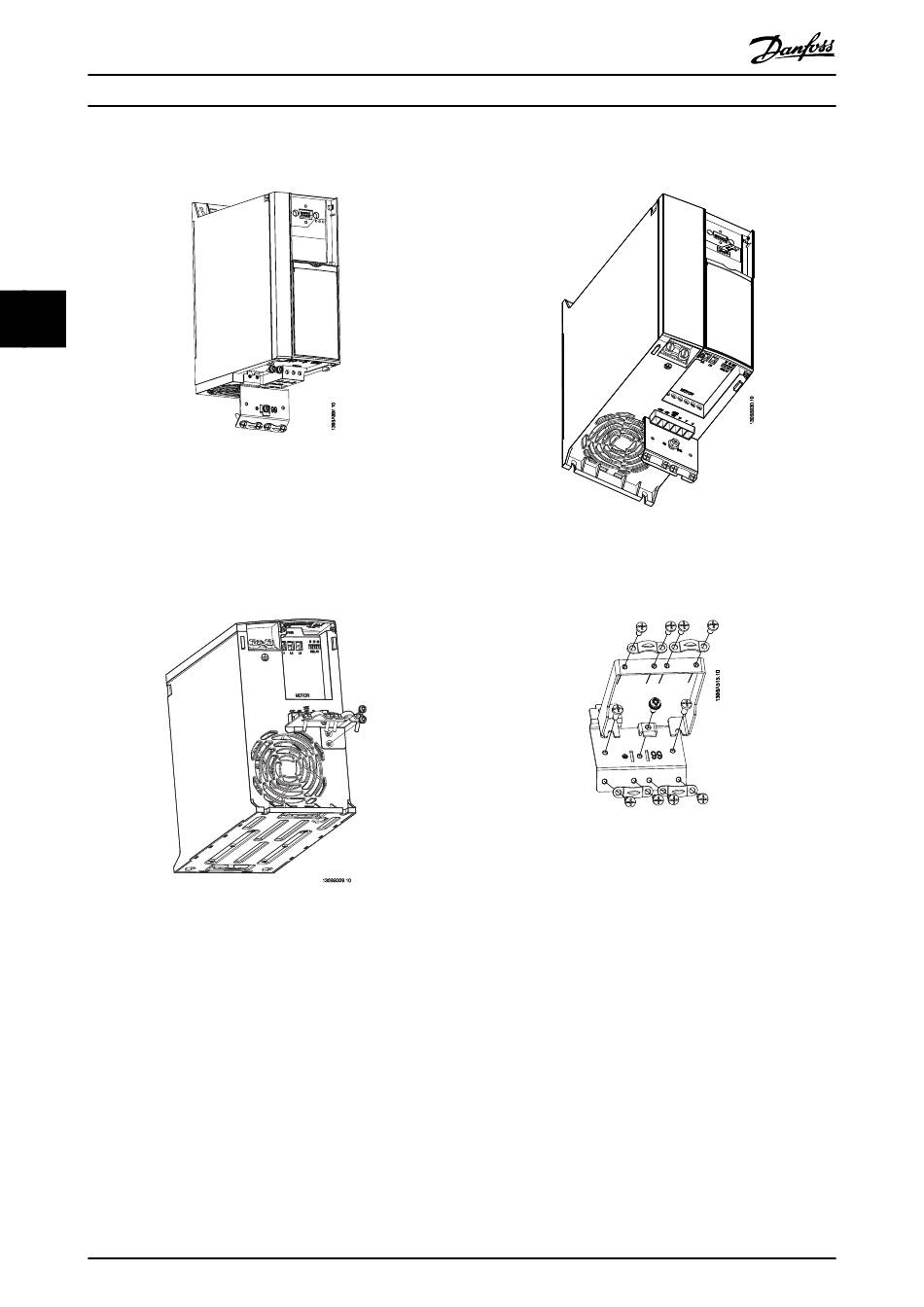

Illustration 4.21 Decoupling Plate Mounted
4.1.12 FC 51 Decoupling Plate Mounting
Instruction for M4 and M5
Step 1
Mount metal plate on frequency converter and fasten with
2 screws. Tightening torque: 2 Nm (18 in-lb).
Illustration 4.22 Mount Metal Plate
32
®
VLT
Micro Drive FC 51
Step 2
Decoupling plate mounted.
Illustration 4.23 Decoupling Plate Mounted
Step 3
Mount bracket on decoupling plate.
Illustration 4.24 Mount Bracket
Danfoss A/S © 01/2016 All rights reserved.
MG02K402
