1.4 Definitions

1.4.1 Frequency Converter
I
VLT,MAX
The maximum output current.
I
VLT N
The rated output current supplied by the frequency
converter.
U
VLT,MAX
The maximum output voltage.
1.4.2 Input
Control command
The connected motor can be started and stopped with LCP
and the digital inputs.
Functions are divided into 2 groups.
Functions in group 1 have higher priority than functions in
group 2.
Group 1
Group 2
Table 1.3 Function Groups
1.4.3 Motor
f
JOG
The motor frequency when the jog function is activated
(via digital terminals).
f
M
The motor frequency.
f
MAX
The maximum motor frequency.
f
MIN
The minimum motor frequency.
f
M,N
The rated motor frequency (nameplate data).
I
M
The motor current.
I
M,N
The rated motor current (nameplate data).
n
M,N
The nominal motor speed (nameplate data).
P
M,N
The rated motor power (nameplate data).
U
M
The instant motor voltage.
U
M,N
The rated motor voltage (nameplate data).
6
VLT
Reset, coast stop, reset and coast stop, quick
stop, DC brake, stop, and the [Off] key.
Start, pulse start, reversing, start reversing, jog,
and freeze output.
Danfoss A/S © 01/2016 All rights reserved.
®
Micro Drive FC 51

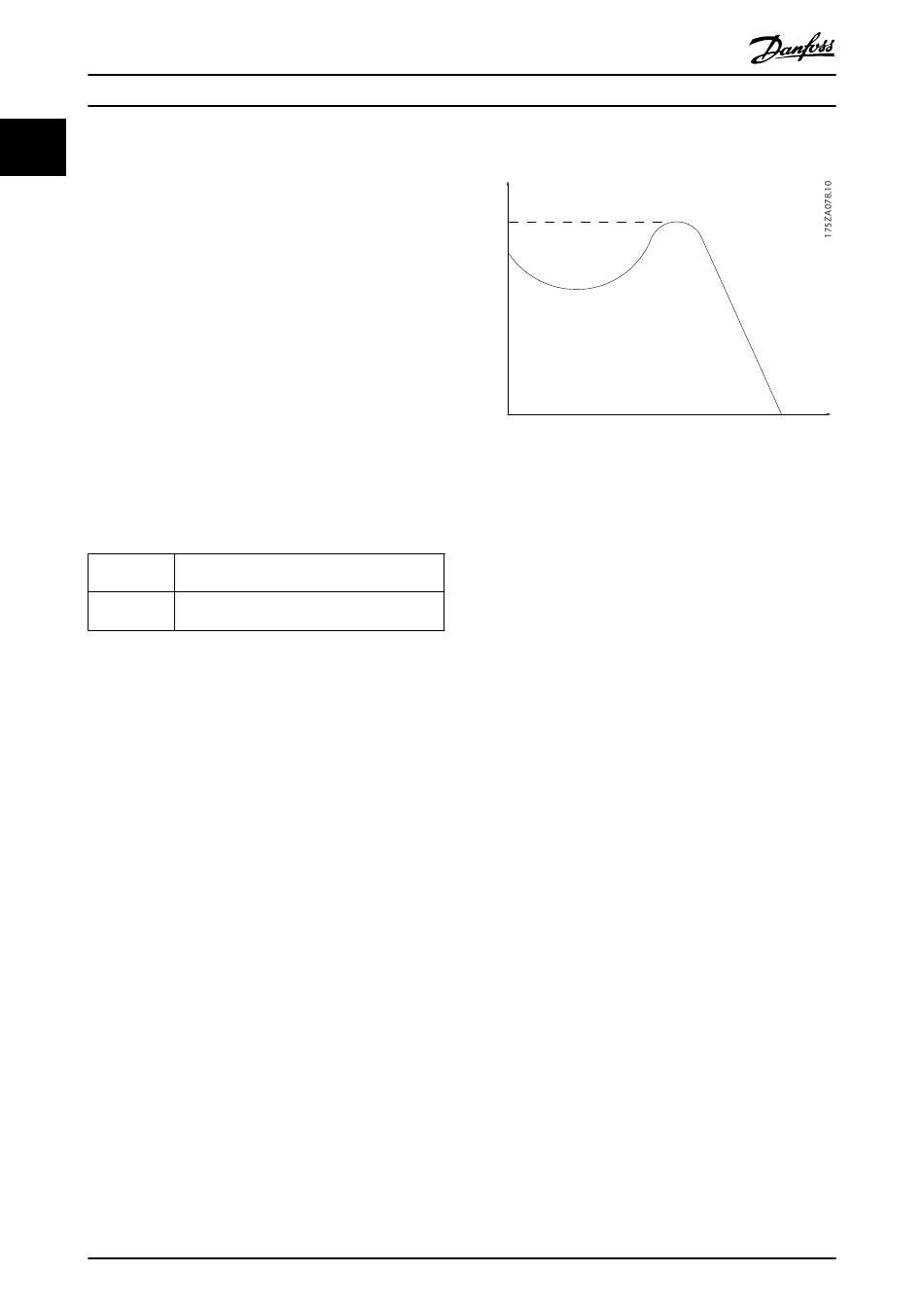

Break-away torque
Torque
Illustration 1.1 Break-away Torque
η
VLT
The efficiency of the frequency converter is defined as the
ratio between the power output and the power input.
Start-disable command
A stop command belonging to the group 1 control
commands, see Table 1.3.
Stop command
See Table 1.3.
1.4.4 References
Analog reference
A signal transmitted to the analog inputs 53 or 54, can be
voltage or current.
Bus reference
A signal transmitted to the serial communication port (FC
port).
Preset reference
A defined preset reference to be set from -100% to +100%
of the reference range. Selection of 8 preset references via
the digital terminals.
Ref
MAX
Determines the relationship between the reference input at
100% full scale value (typically 10 V, 20 mA) and the
resulting reference. The maximum reference value set in
parameter 3-03 Maximum Reference.
Ref
MIN
Determines the relationship between the reference input at
0% value (typically 0 V, 0 mA, 4 mA) and the resulting
reference. The minimum reference value set in
parameter 3-02 Minimum Reference.
Pull-out
rpm
MG02K402
