Selection
Step 2

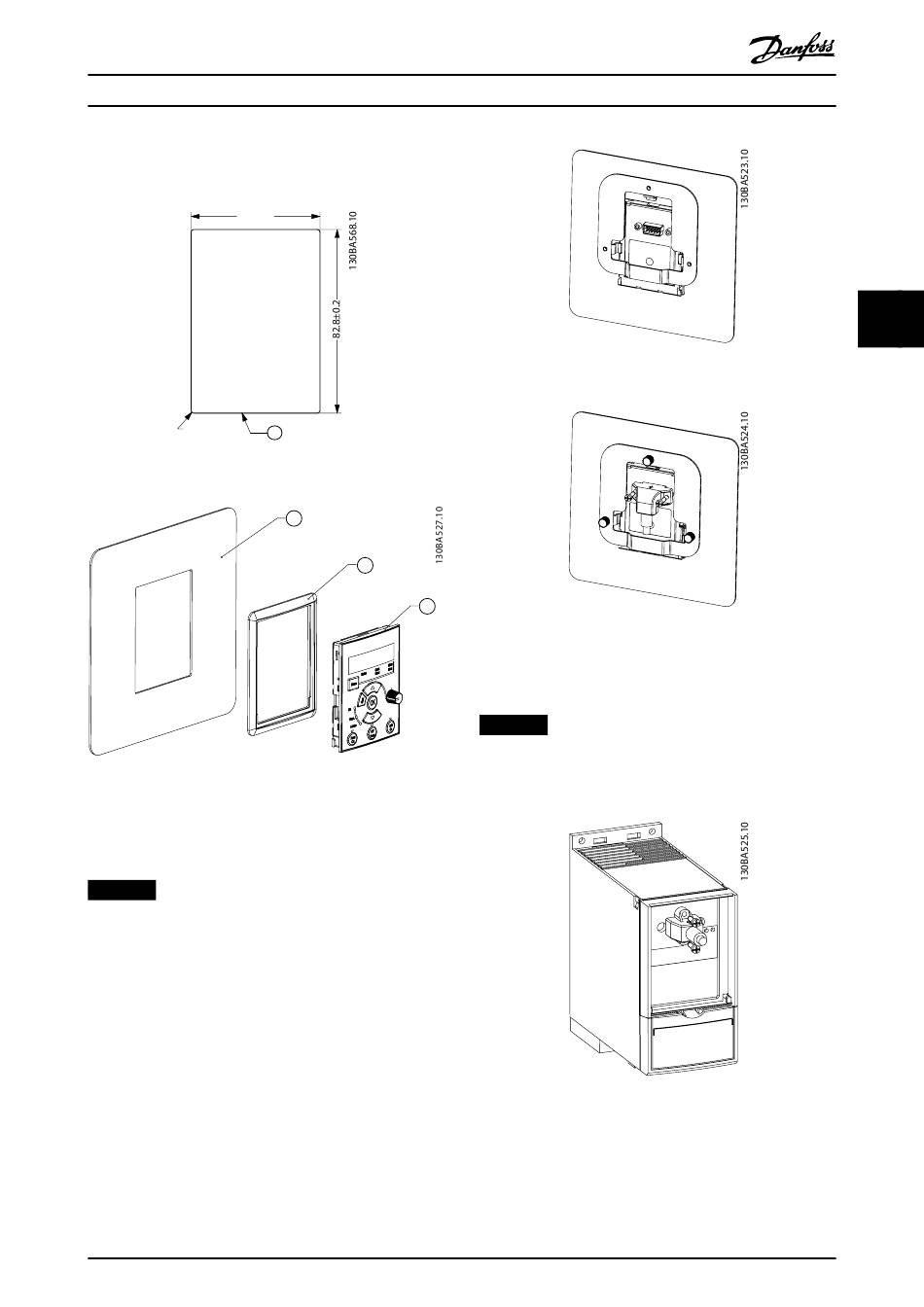

Place the LCP on the panel - see dimensions of the hole in
Illustration 4.3.
62.3±0.2
4xR 1.5±0.5
Illustration 4.3 Dimensions of Hole
Illustration 4.4 Panel, Gasket, and LCP
Step 3
Place the bracket on the back of the LCP, then slide down.
Tighten screws and connect the cable to the LCP.
NOTICE
Use the provided thread cutting screws to fasten the
connector to the LCP. Tightening torque: 1.3 Nm (11.5 in-
lb).
MG02K402
Design Guide
1
1
2
3
Danfoss A/S © 01/2016 All rights reserved.
Illustration 4.5 Place the Bracket on LCP
Illustration 4.6 Tighten Screws and Connect Cable to LCP
Step 4
Connect the cable to the frequency converter.
NOTICE
Use the provided thread cutting screws to fasten
connector to the frequency converter. Tightening torque:
1.3 Nm (11.5 in-lb).
Illustration 4.7 Connect Cable to the Frequency Converter
