Operating Instructions
TSZ-UNI
7.3

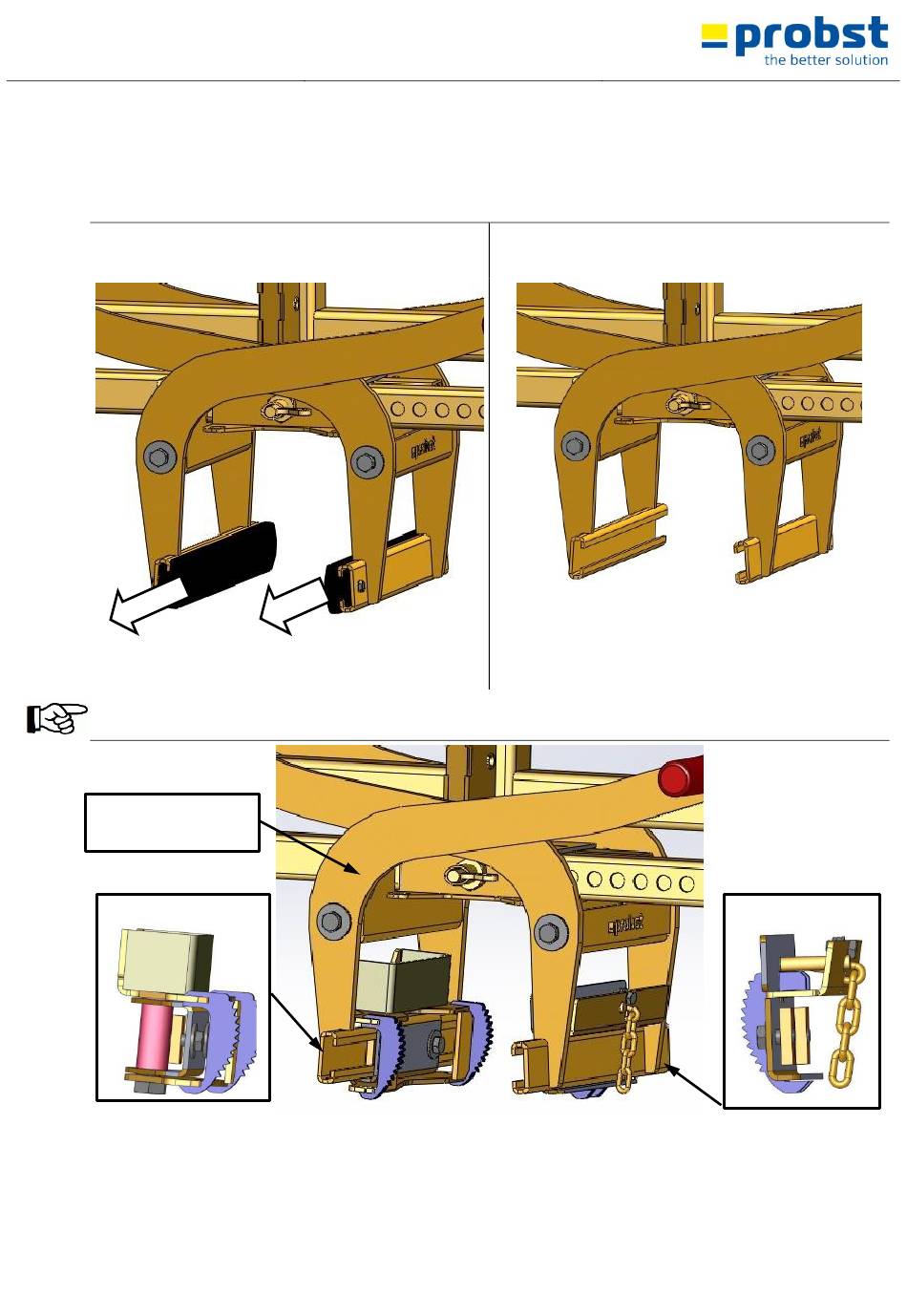

Gripper change (steelfinger grippers TSZ-UNI-WB-SQ)

For movements of roughly-cut ashlar rocks with the device (TSZ-uni) change the standard rubber grippers
(Figure A) againt stellfinger grippers (Figure B)
1.) Unscrew both standard rubber grippers and then
pull them out of the holders (Figure A)
3.) The steelfinger grippers must be installed as shown in Figure C. Take notice, that "Part 1" (with chain box)
may be mounted only on the left side of the device, thus at the "wide external gripper arm"!
External gripping
arm
Part 1
16 / 22
Operation
Figure A
2.) Figure B showws the device (TSZ-uni)
without rubber grippers.
Figure D
V4
Figure B
Part 2
GB
