Operating Instructions
TSZ-UNI

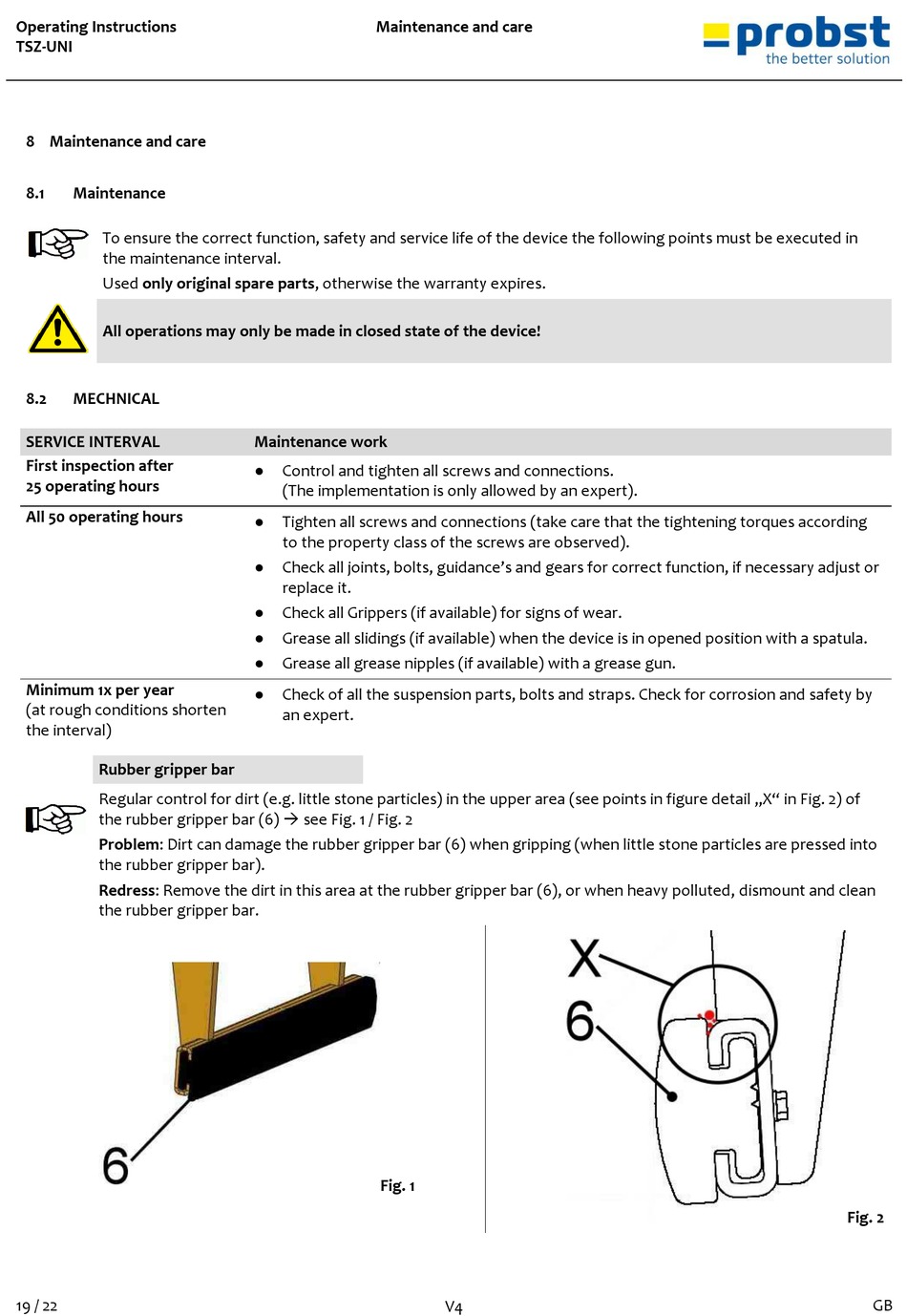

8 Maintenance and care

8.1

Maintenance

To ensure the correct function, safety and service life of the device the following points must be executed in
the maintenance interval.
Used only original spare parts, otherwise the warranty expires.
All operations may only be made in closed state of the device!
8.2

MECHNICAL

SERVICE INTERVAL
First inspection after
25 operating hours
All 50 operating hours
Minimum 1x per year
(at rough conditions shorten
the interval)
Rubber gripper bar
Regular control for dirt (e.g. little stone particles) in the upper area (see points in figure detail „X" in Fig. 2) of
the rubber gripper bar (6)  see Fig. 1 / Fig. 2
Problem: Dirt can damage the rubber gripper bar (6) when gripping (when little stone particles are pressed into
the rubber gripper bar).
Redress: Remove the dirt in this area at the rubber gripper bar (6), or when heavy polluted, dismount and clean
the rubber gripper bar.
19 / 22
Maintenance and care
Maintenance work
●
Control and tighten all screws and connections.
(The implementation is only allowed by an expert).
●
Tighten all screws and connections (take care that the tightening torques according
to the property class of the screws are observed).
●
Check all joints, bolts, guidance's and gears for correct function, if necessary adjust or
replace it.
●
Check all Grippers (if available) for signs of wear.
●
Grease all slidings (if available) when the device is in opened position with a spatula.
●
Grease all grease nipples (if available) with a grease gun.
●
Check of all the suspension parts, bolts and straps. Check for corrosion and safety by
an expert.
Fig. 1
V4
Fig. 2
