When gripping L-stones, the gripping range must be adjust asymmetrical (because of the center of gravity of
the L-stone, so that when lifting, the L-stone is in horizontal position).
That means, it must NOT be used the same adjustable hole with both rectangular tubes (3) (a asymmetrical
positioning of the adjustable holes up to 2 holes is allowed).
6.1.1 Accessories – height adjustable support
When using the device (TSZ-uni) in batch operation, for gripping of single stone slabs (batched one upon the
other), we advise to use the accessories "height adjustable support" (43100867)! – see Fig. 1
Therefore, the inside height must not always adjusted again for gripping goods with the same dimensions (see
Figure 1). When picking up in batch operation the top stone slab may only be lifted!
●
Caution while adjusting of the gripping range. There is danger of injuring the hands!
13 / 22
Adjustments

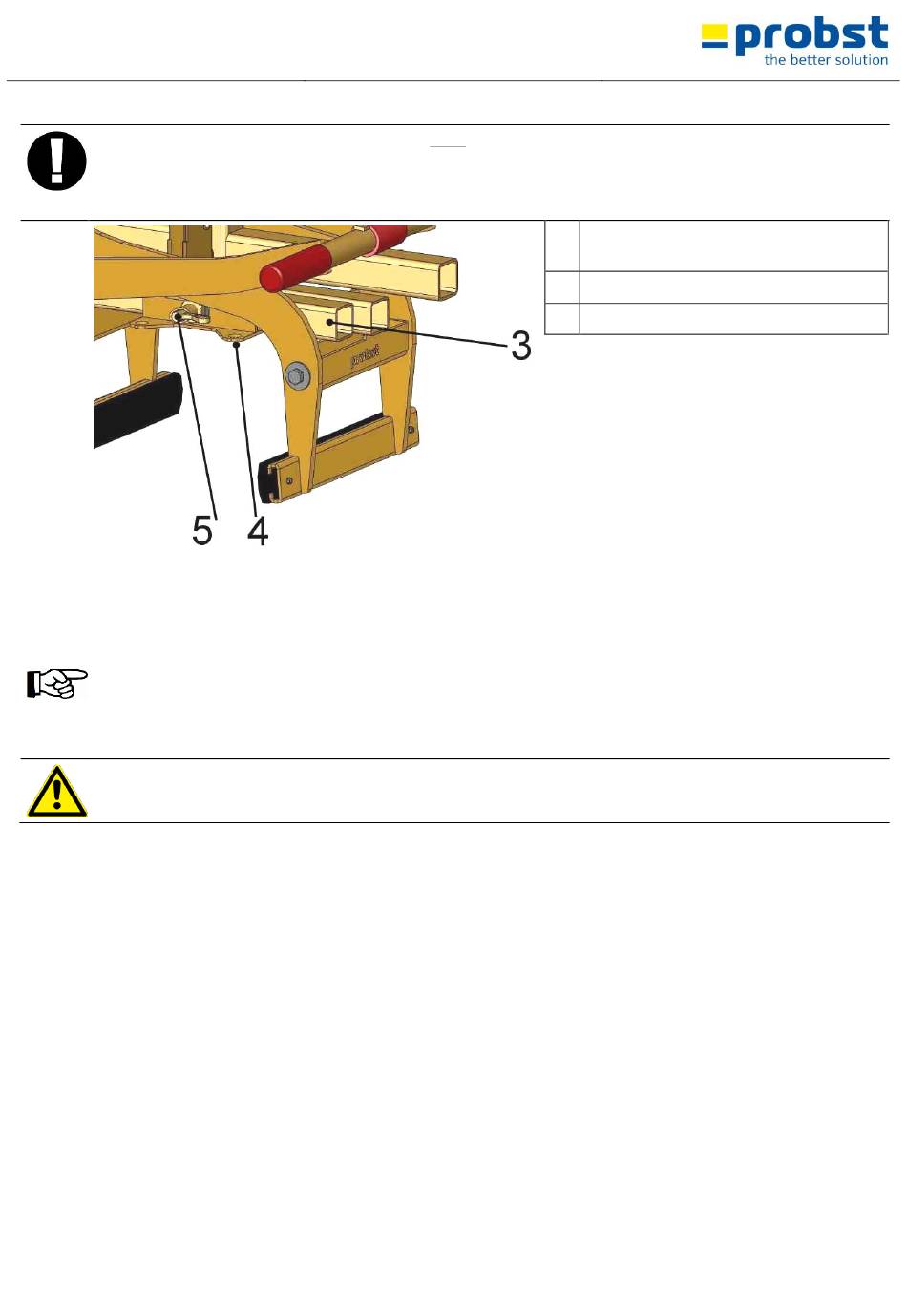

Fig. 1
V4
3 Adjustment positions at the adjustable
hole in both rectangular tubes
4 Height adjustable support
5 Spring bolt
