Operating Instructions
TSZ-UNI
7.4

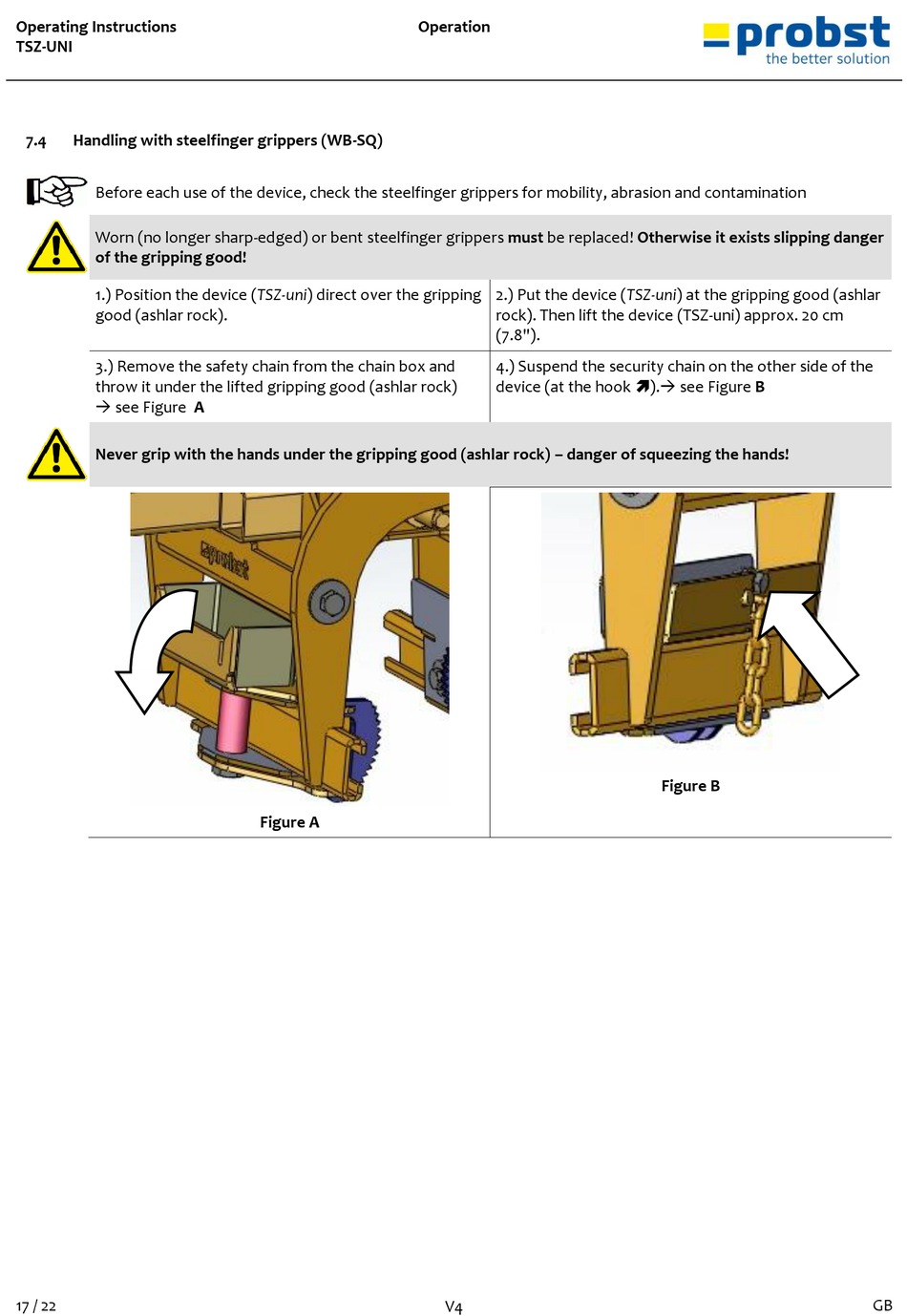

Handling with steelfinger grippers (WB-SQ)

Before each use of the device, check the steelfinger grippers for mobility, abrasion and contamination
Worn (no longer sharp-edged) or bent steelfinger grippers must be replaced! Otherwise it exists slipping danger
of the gripping good!
1.) Position the device (TSZ-uni) direct over the gripping
good (ashlar rock).
3.) Remove the safety chain from the chain box and
throw it under the lifted gripping good (ashlar rock)
 see Figure A
Never grip with the hands under the gripping good (ashlar rock) – danger of squeezing the hands!
17 / 22
Operation
Figure A
2.) Put the device (TSZ-uni) at the gripping good (ashlar
rock). Then lift the device (TSZ-uni) approx. 20 cm
(7.8").
4.) Suspend the security chain on the other side of the
device (at the hook ). see Figure B
V4
Figure B
