TSZ-UNI

●

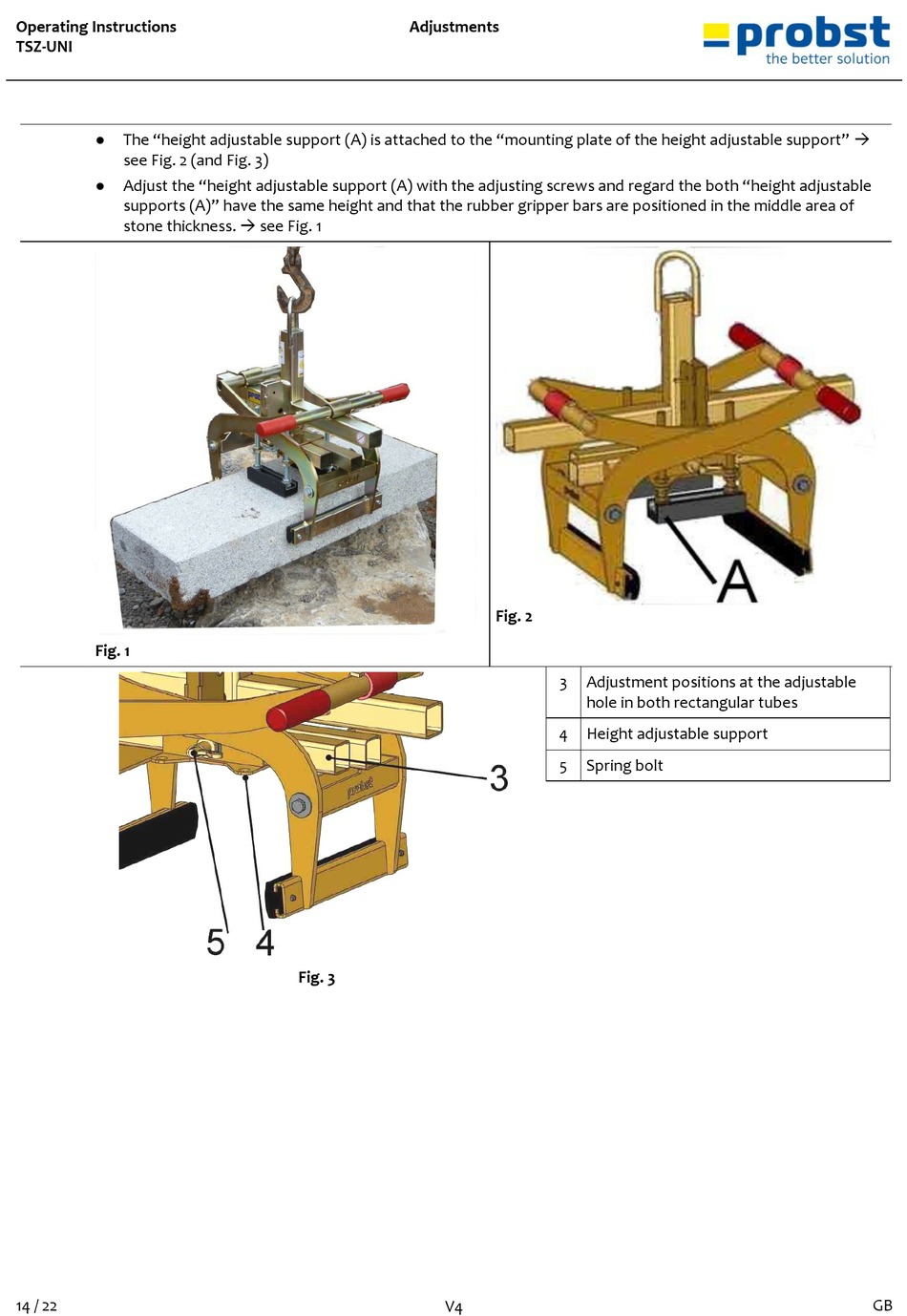

The "height adjustable support (A) is attached to the "mounting plate of the height adjustable support" 

see Fig. 2 (and Fig. 3)

●

Adjust the "height adjustable support (A) with the adjusting screws and regard the both "height adjustable

supports (A)" have the same height and that the rubber gripper bars are positioned in the middle area of

stone thickness.  see Fig. 1

Fig. 1

14 / 22

Adjustments

Fig. 3

Fig. 2

Adjustment positions at the adjustable

hole in both rectangular tubes

Height adjustable support

Spring bolt
