5
MEMORY/CALL OPERATION

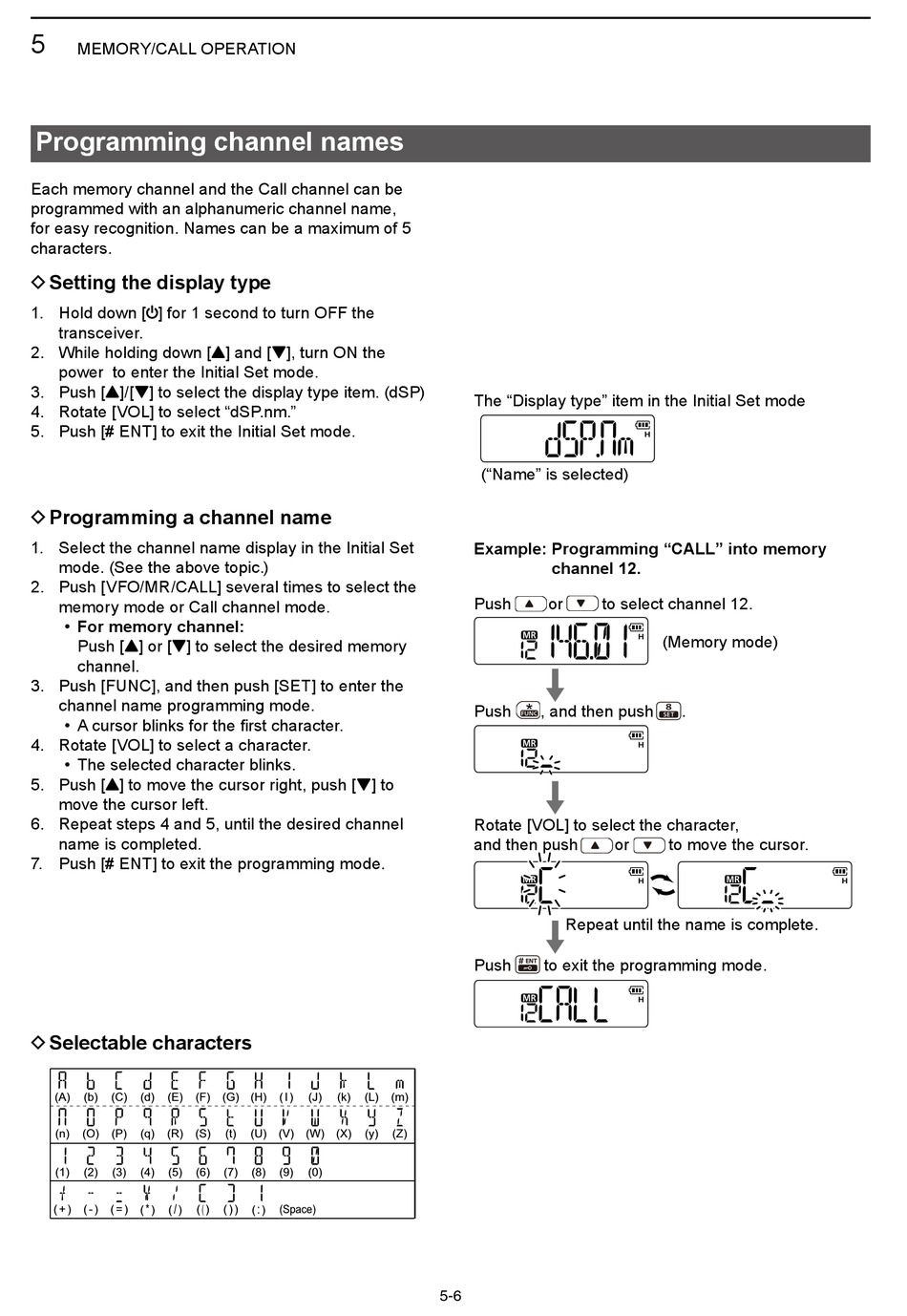

Programming channel names
Each memory channel and the Call channel can be
programmed with an alphanumeric channel name,
for easy recognition. Names can be a maximum of 5
characters.

D Setting the display type

1. Hold down [ ] for 1 second to turn OFF the
transceiver.
2. While holding down [Y] and [Z], turn ON the
power to enter the Initial Set mode.
3. Push [Y]/[Z] to select the display type item. (dSP)
4. Rotate [VOL] to select "dSP.nm."
5. Push [# ENT] to exit the Initial Set mode.

D Programming a channel name

1. Select the channel name display in the Initial Set
mode. (See the above topic.)
2. Push [VFO/MR/CALL] several times to select the
memory mode or Call channel mode.
• For memory channel:
Push [Y] or [Z] to select the desired memory
channel.
3. Push [FUNC], and then push [SET] to enter the
channel name programming mode.
•  A cursorblinksforthefirstcharacter.
4. Rotate [VOL] to select a character.
• The selected character blinks.
5. Push [Y] to move the cursor right, push [Z] to
move the cursor left.
6. Repeat steps 4 and 5, until the desired channel
name is completed.
7. Push [# ENT] to exit the programming mode.

D Selectable characters

(A) (b) (C) (d) (E) (F)
(n) (O) (P) (q) (R) (S)
(1) (2) (3) (4) (5) (6)
* /
( + ) ( - ) ( = ) ( ( )
( ) ( )
(G) (H) ( I ) (J) (k) (L) (m)
(t) (U) (V) (W) (X) (y) (Z)
(7) (8) (9) (0)
:
( ) ) (Space)
( )
The "Display type" item in the Initial Set mode
("Name" is selected)
Example: Programming "CALL" into memory
channel 12.
Push or to select channel 12.
Push , and then push
Rotate [VOL] to select the character,
and then push
Repeat until the name is complete.
Push to exit the programming mode.
5-6
(Memory mode)
.
or to move the cursor.
