9

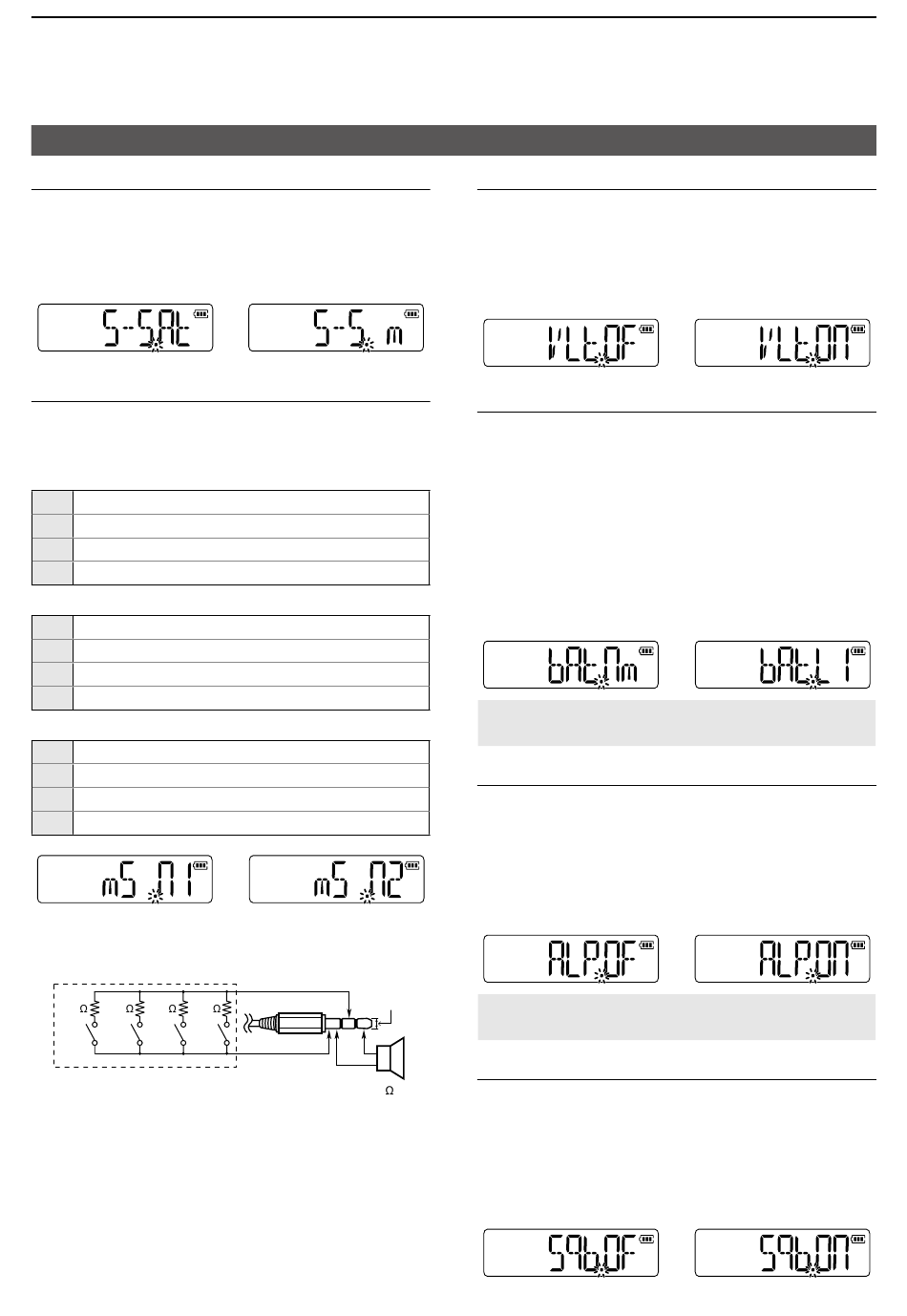

SET MODES
Initial Set mode items

Select speed

Selects whether or not to accelerate the turning speed
when rotating [VOL] rapidly.
• S–S. m: Turns OFF the tuning speed acceleration.
• S–S. At: The turning speed is automatically
accelerated when rapidly rotating [VOL].

Microphone simple mode

Microphone Simple mode is used to assign the
essential operations to the four switches (S1 to S4) on
the remote control unit.
• mS .Sm
S1 Selects the Call channel.
S2 Turns the Monitor function ON or OFF.
S3 Selects memory channel 0.
S4 Selects memory channel 1.
• mS .n1
S1 Toggles the VFO mode and the memory mode.
S2 Selects the Call channel.
S3 Frequency or memory channel up.
S4 Frequency or memory channel down.
• mS .n2
S1 Toggles the VFO mode and the memory mode.
S2 Turns the Monitor function ON or OFF.
S3 Frequency or memory channel up.
S4 Frequency or memory channel down.
User remote control unit
The circuit illustrated below is for only reference.
2.7k 6.8k 15k 33k
S1 S2 S3
(Default: S–S. At)
(Default: mS .n1)
to the [SP] jack
REMOTE
3.5(d) mm
S4
SP
GND
EXTERNAL SPEAKER
> ‗
Rated input 700 mW (8 )

Voltage Indication

The voltage of the battery is displayed at power ON.
This display can be turned ON or OFF.
• VLt.OF: The battery voltage display is skipped.
• VLt.On: The battery voltage is displayed at power

Battery protection function

When the battery voltage decreases, the Battery
Protection function automatically turns OFF the
transceiver. Select the function option according to
your battery type.
(Default: Differs depending on the transceiver version)
• bAt.OF: Turns OFF the function. Select when you
• bAt.nm: Select when you use the BP-264 Ni-MH
• bAt.LI:
NOTE: BE SURE to select an appropriate option
according to your battery type.
Auto low power
Turns the Automatic Low-power function ON or OFF.
When the temperature goes below 0°C (+32°F), the
function automatically sets the output power to low. In
that case, the transmit power selections (High or Mid)
are also disabled.
• ALP.OF: The auto low power is OFF.
• ALP.On: The auto low power is ON.
NOTE: This item is activated when the Battery
protection function is set to "bAt.nm" or "bAt.LI."
+
– Squelch burst
The squelch burst function stops transmitting a
subaudible tone before your transceiver stops
transmitting RF, to eliminate noise. The squelch burst
will be effective only when the other station uses the
tone squelch function.
• Sqb.OF: The squelch burst is OFF.
• Sqb.On: The squelch burst is ON.
9-7
ON.
use the BP-263 battery case.
battery pack.
Select when you use the BP-298/BP-299
Li-ion battery pack.
(Default: VLt.On)
(default: ALP.OF)
(Default: Sqb.OF)
